Shenzhen Yixi Electronics Co. Ltd

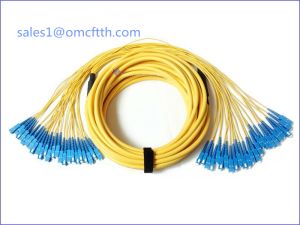

SC-SC MM SX Fiber optic patch cord Features 1.Low insertion loss and back reflection loss 2. Good Durability 3. Good exchangeability 4.High temperature stabilit y Application 1. CATV, Metro, LANs 2. Active device termination 3. Telecommunication networks 4.Industrial, medical & military 5. Test Equipment 6.Local Area Network Specification Parameter Unit PC(SM) UPC(SM) APC(SM) PC(MM) Return loss d B ≥45 ≥50 ≥60 ≥35 Insertion loss d B ≤0.2 (Typical) ≤0.3 Repeatability d B ≤0.1 Durablitiy Time ≥500 Operating Temperature °C -45~75 Storage Temperature °C -45~85 Tensile Strength N ≥90(Ø3.0) , ≥70(Ø2.0)

• MOQ 500 Piece(s)
• colorgray
• Jackthree rj11

• MOQ 2000 Piece(s)
• length of telephone120mm

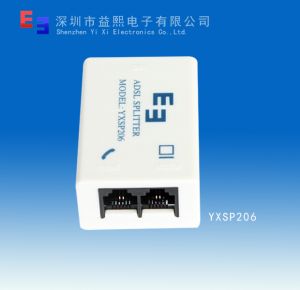

Brand ：yx model：yxsp002e input interface: rj11 output interface : rj11 bandwidth :2.2（mhz） transmission distance: 100（m） power voltage: 12（v） power frequency : 60k(hz） power : 60（w） working temperature: -15*85（℃） pecification post port impedance： zr=600 ohm modem modem impedance：30khz to 2208 khz 100 ohm insertion loss：@ 1004 hz =12db erl >=10 db srl-h >=5db return loss（phone to line）：srl-l >=13db erl >=9 db srl-h >=3db lcl ： 200 hz to 1 khz > 58 db 1 khz to 3 khz >53db attenuation： 30 khz .

• MOQ 100 Piece(s)
• COLORBLUE

SC/PC SM SX fiber optic Adapter Product description Fiber optic adapters are used in connecting fiber active connectors; it is made of zirconia or phosphor bronze sleeve, with good compatibility, high size precision, interchangeability, reliability and stability It is widely used in Local Area Ne-network, CATV System, Telecomuunication Network, Euip-ment Test etc. Features -Good compatibility -High precision of mechanical dimensions -Good reliability & stability -Ceramic or Bronze Sleeve -Three types of fiber stub port: PC , APC , UPC -Single mode/Multi-mode -Various styles:Square, Circular and Square link together -Color: Blue, Beige, Black, Green, Red, Orange , Yellow, Aqua Specification Parameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, SC-FC, FC-LC, FC-MU MTRJ E2000 SM MM SM MM SM PC UPC APC PC PC UPC PC PC APC Return loss d B ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3 Insertion loss d B ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75 Repeatability d B ≤0.2 ≤0.2 ≤0.2 Durablitiy Time ≤0.2 ≤0.2 ≤0.2 Operating Temperature °C >1000 >1000 >1000 Storage Temperature °C -45~75 -45~75 -45~75 Tensile Strength N -45~85 -45~85

• MOQ 2000 Piece(s)
• Applicationit is used in inserting module
• interfacegold finger
