Shijiazhuang BILO Import & Export Co., Ltd

Shijiazhuang, China

We are offering cable pulley, roller guide, pulley block usage: used for laying cables, wire rope etc. Reducing friction, protecting cable, saving time and effort. Bearing roller materials can be steel, aluminum, or nylon. It can be designed with many kinds of appearance and structures according to usage. Features: light weight, strong bearing, reducing friction, long life

Duct rodder, conduit rodder, cable puller, fiberglass duct rodder, fish tape, duct rod, push pull rod, frp duct rodder duct rodder is an auxiliary tool applied in towing lead-rope through a pipe. The rod surface is hard and smooth, so it can get through the narrow pipe or channel easily.  the inner core of the rod is made of fiberglass and unsaturated polyester resin. The outside layer is smooth and firm abs resin. It is widely used for the cables works or cleaning in cable pipe or channels. Features 1.great rigidity and strength 2.light & easy to use 3.excellent flexibility force 4.quickly delivery 5.safe, non conductive and no kink 6.anticorrosion, good elasticity, long working life structure 1.fiber glass rod inner: extruded by fiber glass and unsaturated polyester resin at high temperature. 2.fiber glass rod outer: medium density abs resin for the insulating and jacketing of cables. 3.assembly: metal frame sprayed paint; rubber wheels assembly for easy transportation; guide rollers and the right parts for rotary coupling; parking brake for the flexible rod. 4.copper wire inside is optional which is for tracing easily. 5.rolling bearing cage (wheel transport) for mobility will be light and easy to use in the field. 6.feed device allows rod to feed out or be back with easy push or pull of rod 7.rustproof bull-nose pulling eye and accessories. Frp rod information 1.light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant. 2.high tensile strength and bending properties to make it go through narrow pipes easily. 3.good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature

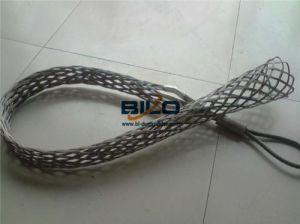

We are offering wire mesh grip. Cable grip sock cable pulling grip cable pulling socks description heavy duty grip are designed to handle longer or heavier pulling jobs such as an installation of underground cables, communication lines and service lines. pulling grips serve as reusable tools for pulling cables, wires, andor rope in overhead and underground cable pulls protecting from abrasion and easing the cable through rough surfaces. Heavy duty grips are used to connect cable enclosures and industrial equipment preventing cable or conduit pull-out at the point of termination due to tension. Support grips distribute the weight of vertical drops and sloping runs over the length of the grip to protect the cable from damage packaging packaging details: by cartons feature it is knitted by joint capital steel wire . It has good softness. It is easy to extend and contract. For high strength cable, ground wires and synthetic ropes weave galvanized steel mesh specifications 1.good softness  2.easy to extend and contract  3.material:steel wire  4.high quality application heavy duty grip for following outdoor cable; 1, telecom cable 2, fiber cable 3, coaxial cable 4, feeder cable 5, hybrid cable 6, corrugated cable 7, smooth cable 8, braid cable technical data model rated load(kn) applicable cable diameter(mm) weight(kg) wt-60 20 50-65 1.40 wt-80 20 70-85 1.55 wt-100 30 90-105 2.10

We are offering wire grip. Wire pulling grip application: used for the adjustment of wire in the projects of wire laying or poles erecting easy to operate; light weight; strong and durable product no. suitable wire(mm²) load capacity (kn) max. Open (mm) weight (kg) blkx01-1 gj25-50 10 11 1.3 blkx01-2 gj70-120 30 15 2.3

We are offering fiberglass hot stick. Fiberglass telescopic hot stick fiberglass hot stick frp telescopic stick frp hot stick frp operating stick insulated fiberglass hot stick telescopic hot stick description fiberglass telescopic hot stick is made of high quality glass fiber cloth , epoxy resin and benzene anhydride, the curing agent of insulation materials, etc. First time and after high temperature variations on the mold,  then take off the mold, after the second high temperature grinding, one coarse grinding, two fine grinding, then in paint production into other fiberglass products, beautiful appearance, light structure, convenient operation, suitable for all kinds of high pressure conditions, insulation performance with good and safety. it is used for a short period of time for the insulation operate tools of the electric equipment  such as on or off falling high-voltage isolating switch, fuse, etc. Specification material: epoxy resin length: 3m-10m withstand voltage: 10kv-500kv surface: smooth and has no scratch product feature round shape & high visibility easy maintenance & redesign lock buttons easy disassemble & ergonomic design new base cap & more versatile improved universal head the style, material and structure of this product are followed america technique. It can achieve the european norm. Telescoping hot sticks advantage 1.anti-moisture. Foam filled tube and ventilated bottom design. 2.anit-slip . Holding part is roughness treated. 3.convenience and flexible locking system. 4.absorbing and anti-friction surface. 5.100% electrical performance tested. 6.offer special design.

We are offering earthing set. High voltage earthing set earthing wire sets earth rods set earth rod set with earthing wire earth set description: high voltage earthing set suitable for making power failed equipments or temporary short-circuited lines grounded, preventing unexpected power to intrude in and do damage to personnel and equipments. Specification: ground rod's material: epoxy resin ground rod's length: 0.5m-3m cooper wire's cross section area: 16mm²   25 mm² 35mm² 50 mm² 70 mm² . can produce as your request. Earthing pin's material: aluminum earthing clamp's material: aluminum or cooper product characters: the hook adopts light aluminium alloy compression casting,  pole use the tepoxy manufacture,  light weight, hight strength,  excellent ability of electric conduction. baling wire uses electrolysis copper wire. the temperature scope for protective cover :+40°c. Earth rod set with earthing wire and clamp advantage: 1.high visibility 2.easy maintenance, easy disassembly , ergonomic design  3.easy operation, flexibly structured 4.good insulation properties

We are offering blot clippers, blot cutter. Heavy duty wire clippers usage an feature product suitable for cutting general carbon steel wire rod, bar, cable and hard copper wire.head of high-quality carbon steel forging, the overall heat treatment, high-frequency induction hardening of blades.less than or equal firmness hrc30, powerful shear force. Specification size(inch) cut range(mm) weight(kg) length(mm) 14 4-5 0.93 350 18 6-8 1.5 450 24 8-10 2.3 600 36 12-16 5.3 900 42 14-19 7.9 1050 48 16-22 8.5 1200 matters needing attention 1.in use process should keep tong head bolts shall not be loose, if oose should tighten in time, in case the collapse edge. 2.unfavorable shear stiffness over hrc30 and temperature above 200 degrees of metal materials.

We are offering distance measuring wheel. Measuring wheel digital measuring wheel distance measuring wheel is also known as mechanical rangefinder car,  digital display measuring wheel, and measure wheel. Wheeled rangefinder is designed for outdoor distance measurement designed and manufactured for a variety of ground conditions, including hills, meadows, rugged construction sites and so on. Lightweight design allows field workers to carry very convenient , greatly reducing the work fatigue. Measurement range of the product 0-9999.9 m , reached domestic leading level. Large digital display system makes clear clear and accurate readings , and to install a night display lighting system to facilitate in poor light conditions of use ; folding steel tubular handle bars greatly reduced the volume of storage and handling ; using lightweight and flexible, durable ; therefore been widely used in professional surveying and mapping activities, roadworks , pipeline laying , cable engineering, construction work measurement and evaluation , garden landscape and golf course construction survey , traffic accidents from the position measurement , and measurement of farmland construction management , etc. , and its time-saving advantages are increasingly easy the more industry sectors are discovered and exploited .

We are offering lifting equipment, lever block. Lever hoist 1. Designed and produced according to the standard of en13157. 2. Made of low alloy steel, safe, reliable and durable. Products no. unit bljx04-01 bljx04-02 bljx04-03 bljx04-04 bljx04-05 rated load ( kn) ton 0.75 1.5 3 6 9 stand height m 1.5 1.5 1.5 1.5 1.5 test capacity kn 11.0 22.5 37.5 75.0 112.5 maxi. Operation force n 140 240 320 340 360 no. Of lifting chains 1 1 1 2 3 dia. Of lifting chain mm 6 8 10 10 10 sizes (mm) a 155 180 215 215 215 b 95 105 130 130 130 c 135 155 211 254 330 d 37 45 50 64 85 h 320 380 480 600 700 l 285 370 410 410 410 k 26 45 50 64 85 n.w. kg 7.7 11.8 21 32 47 package sizes cm 35.5×14×16.5 46.5×15.5×19 51×19×21.5 53×22×21.5 82×32×21.5 raising weight per meter kg 0.8 1.4 --- 4.4 6.6

We are offering insulation expandable barrier. Insulation retractable fence insulation retractable mobile fence insulation frp fence insulation expandable barrier expandable safety barrier expandable barrier is widely used in the power plants and for ensure the safety of power plants and other field staff live working, while a high pressure safety fence installation, expandable barriers is made of fiberglass fibers, from the prompt action of the security fence. Specification: material: fiberglass color: redwhite or yellowblack surface: plastic-spraying by environment-friendly outdoor powder folded size:400mm expanded size:5000mm height: 1000mm without castors package: fiberboard carton with bubbles advantage： 1.avoid the heat and voltage problems in high electromagnetic field electromagnetic, no damage to the substation equipment, operation and maintenance personnel to avoid electric shock. 2. Anti-rust, no paint protection requests, do not affraid of lighting stricking 3.corrosion resistance, at 10% sulfuric acid, 20% acetic acid of 50% nitric acid still no effect. 4.impact-resistant and easy recovery after the object hitting, tensile, bending strength more than 600pa, about 50-fold resistance to fatigue of steel value features: 1. the build-in handle and flexible banner simplify handling and portability. 2. It have 6 locking castors to make it much easier to move about. 3. bolts on the flank can be attached to another barrier to achieve a joint at any angle. 4. the eco-friendly coated powder is available for both indoor and outdoor applications. 5. the structures in the posts make the barrier fold and expand flexible.

We are offering frp ladder. Insulated ladder fiberglass ladder fiberglass extension ladder frp straight ladder frp extension ladder frp isulated ladder frp ladder introduction frp ladder is pultrusion products of fiberglass.it is light weight, insulation, durable and long working time.so it is widely used in power engineering, telecommunications engineering, electrical engineering, hydropower engineering, repair, substation maintenance, meter reading. Types of the frp ladders: frp single straight ladder frp step ladder frp a-type ladder frp joint ladder. Frp ladder properties: 1.good performance of insulation: voltage insulation resistance from 220kv to 800kv 2.good stability 3.light weight and high strength 4.low absorption of water 5.all colors available 6.corrosion resistance 7.frp ladder can be designed according to gb17620-1998, gb7059.3-86. Product description durable non-conductive fiberglass side rails in high visibility safety yellow  slip-resistant serrated round rungs for safe climbing rubber high impact non-marring end caps tough extruding lock design that won’t loosen  additional charge for extra pole strap, handle and heavy feet specifications： loading：200kg, each step all have auxiliary support, 5.57 kg. Through the united states ansi testing standard and canadian csa testing standards. We can design and produce all kinds of frp telescopic ladder according to customer’s requirements.

We are offering wind bird repeller. Solar bird repeller wind bird repellent product description the wind bird repeller installed on the cross arm is the first one entering the market of bird repeller. it’s designed for power lines of power system,  substation outdoor switch occasion and other bird driving occasion. Principle wind bird repeller takes the measures of rotation and reflective type. its principle is based on wind power as the power supply,  takes the center rotating structure with maintenance-free and high quality bearing,  and triangular balance bracket made of orange abs plastic. above the triangular balance are reflective lenses and three wind bowl with 120 degrees apart and the installation of lens,  which make use of the reflection principle to inform an astigmatism area when the wind turbine. thusthose birds will not stay on the high voltage poles,  wires,  or build nests under the frightened condition of glare radiation or reflection of their own shadow.

We are offering cable drum stands, cable reel stand application: it was applied in the supporting of cable drum. Features: simple operation, secure and durable. Structure: it can be designed according to need, mechanical, hydraulic or combined type. Horizontal placed stand (hexagonal): used for laying cables. It is fixed with wheels below, it can roll freely. Put cable reel on the rolled plate, laying cables with the rotation of the wheels. It is easy to operate. Product no. load capacity plate thickness plate dia. weight blfx01-1 2t 6mm φ800mm 50kg blfx01-2 3t 6mm φ850mm 65kg blfx01-3 4t 8mm φ1000mm 95kg blfx01-4 5t 8mm φ1200mm 125kg portable disassembly type cable drum stand: used for supporting of cable drums in the cable setting construction, equipped with easily braking device. Product no. suitable drum dia. suitable drum width axis dia. weight blfx02-1 1400-φ2100mm ≤1200mm 60mm 120kg blfx02-2 1600-φ2400mm ≤1200mm 76mm 180kg trapezoidal shape cable reel stand: used for placing cable reels, laying wire and cable overhead. It is fixed wheels below and hydraulic devices. Easy to move; simple to operate; suitable for various size of cable reel horizontal axis is made of materials of jackrod, strong enough. Product no. suitable drum dia. suitable drum width axis dia. weight blfx03-1 φ700-2100mm ≤1500mm φ60mm 90kg blfx03-2 φ700-2400mm ≤1700mm φ76mm 130kg blfx03-3 φ700-3200mm ≤1800mm φ120mm 210kg

We are offering ratchet puller used in small projects of wire pulling, with protection devices, safe and reliable products no. rated load ( kn) teeth no. weight (kg） bljx08-1 10 18 1.6 bljx08-2 20 20 2.4.

We are offering jacket stripper, wire stripper, fiber stripper. Feature 1.portable, easy in operation. 2.stripping thickness can be adjusted. 3.suitable for stripping the end and the middle of conduction wire and cable. 4.the blade is sharp, durable and detachable for exchang or resharpenping. Specification model weight (kg) size (mm) capacity stripper thickness dia (mm) inch max and cable (mm) max middlecable (mm) bxq-v-30 0.87 325*72*50 15-30 0.59-1.18 bxq-w40 0.87 245*87*55 15-40 0.59-1.57 bxq-z-90 2.58 500*137*80 40-90 1.57-3.54 bxq-v-45 0.56 248*80*90 45 1.77 bxq-u-45 1.42 290*120*75 65 2.56 bxq-c-40 1.42 380*220*120 20-40 0.79-1.57 bxq-z-40b 1.04 275*95*60 14-40 0.55-1.57 6 4 bxq-y-22 0.1 140*42*38 4.5-25 0.18-9.8 2.5
