Shijiazhuang Tongshan Metal Product Co.,Ltd

• MOQ 15000 Square Meter
• excellent qualityreasonable price

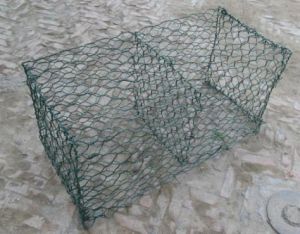

Gabions are Baskets Manufactured from 8x10 Double Twisted Hexagonal Woven Steel Wire Mesh, as per Astm A975-97 Gabions are Filled with Stones At the Project Site to Form Flexible, Permeable, Monolithic Structures such as Retaining Walls, Channel Linings and Weirs for Erosion Control Projects. the Steel Wire Used in the Manufacture of the Gabion is Heavily Galfan (zinc-5% Aluminum-mischmetal [zn-5 Al-mm] Alloy) Coated Soft Temper Steel. a Pvc Coating is Then Applied to Provide Additional Protection for Use in Polluted, Contaminated or Aggressive Environments: in Salt, Fresh Water, Acid Soil or Wherever the Risk of Corrosion is Present. the Pvc Coating Has a Nominal Thickness of 0.02 In. (0.50 Mm). the Gabion is Divided Into Cells By Diaphragms Positioned At Approximately 3 Ft (0.9m) Centers. to Reinforce the Structure, all Mesh Panel Edges are Selvedged with a Wire Having a Greater Diameter. Gabions Shall Be Manufactured and Shipped with all Components Mechanically Connected At the Production Facility. wire all Tests On Wire Must Be Performed Prior to Manufacturing the Mesh. all Wire Should Comply with Astm A975-97, Style 3 Coating, Galfan and Pvc Coated Steel Wire. Wire Used for the Manufacture of Gabions and the Lacing Wire, Shall have a Maximum Tensile Strength of 75 000 Psi (515 Mpa) as per Astm A856-03, Soft Temper Steel. features â· Economic. â· Just Fill the Stone Into the Gabions and Seal It. â· Simple Installation. â· No Special Technology Needed.weather Proof Under Natural Destroy, Corrosion Resistant. â· No Collapse Even Under Big Scope of Deforming. â· Sludge in the Stones is Good for Plant Growing. â· Mixed to Form a Integrity with the Natural Environment.good Permeation Can Prevent the Damage By Hydrostatic. â· Less Transport Freight. It Can Be Folded Together for Transport and Further Installation. gabion Baskets Applications â· Control and Guide of Water or Flood â· Flood Bank or Guiding Bank â· Preventing of Rock Breaking â· Bridge Protection â· Water and Soil Protection â· Coast Protection â· Seaport Engineering â· Strengthening Structure of Soil â· Protection of Road.

• MOQ 1000 Kilogram
• MaterialAluminum
• Number Of FlowerKnitted Wire Mesh
• Country of OriginIndia
• excellent qualityreasonable price

• MOQ 2000 Piece(s)

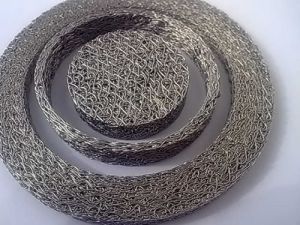

Wire Mesh Gasket are Highly Durable, Resilient and Versatile Wire Mesh Gaskets Manufactured By Us have Found Their Usage in Several Industries. Their Sturdy Construction and Ability to Withstand High Temperatures have Made Them the Preferred Choice of the Clients. We Export Wire Mesh Gaskets to Almost Every Part of the World At Highly Competitive Prices. attributes · Highly Resilient · Versatile · Provides Excellent Shielding · Easy to Install · Cost-effective · Excellent Thermal and Electrical Insulation application Areas · Microwave Ovens · Cctv’s · Connectors · Wave Guides, Etc. · Auto Parts · Shock Mitigation System of Railway.

• MOQ 1000 Piece(s)
• excellent qualityreasonable price

Square Hole Perforated Metal Sheets are Used for Shopfitting Display and Machine Guards offering Good Visibility. typical Applications machine Guards air Condition Guards architectural Features steel Long Supply Perforated Material in Three Basic Forms. They are Sheet, Coil and Tube. the Most Common Form of Perforated Material Because of Its Versatility and Ease in Handling, Perforated Sheets Can Be Supplied Either as Flat, Fabricated, And/or Finished Product. sheet typically Produced from Coil, Perforated Sheets Can Be Produced in Widths Up to 60" and in Any Length (typically Under 250" for Shipping Purposes). Supplied Either Fully Perforated or with Margins And/or Blank Areas, Perforated Sheets Can Be Produced to Meet Your Design and Production Requirements. coil ideal for Original Equipment Manufacturers (oems) with Automated Production Operations, Perforated Coils Enable Faster Production By Reducing Handling of Sheet Material. supplied Either Fully Perforated or as Paneled Sections Either with or Without Precisely Placed Locator Holes, Perforated Coil Up to 60" Wide Can Be Produced in 16 Gauge and Thinner Material to Meet Your Design and Production Requirements. perforated Metal Tube primarily Used in Automotive and Filtration Applications, Perforated Tubes are Often Subject to Design Requirements, Stringent Inspections and Competitive Pricing. completely Perforated or with Blank Areas, One Hole Size or a Variety of Them, Straight or Flared Ends, Perforated Tubes Can Be Made Up to 6 Inches in Diameter and 30 Inches in Length in Any Metal Type or Thickness. perforated Sheets are Available in a Variety of Hole Patterns, Including: round Holes, Square Holes, Slotted Holes, Diamond Holes, Hexagonal Holes Etc. materials: Aluminium Plate, Thin Low Carbon Steel Plate, Stainess Steel Plate, Al-mg Alloy Plate, Copper Plate and Nickel Plate.

• MOQ 2000 Piece(s)
• excellent qualityreasonable price

Welded Wire Mesh Panel is Made of High Quality Welded Wire Mesh, with Flat Even Surface, Firm Structure. It is Extensively Used in Building, Food, Agriculture and So On. assortments Available: stainless Steel Welded Wire Mesh Panel hot Dip Galvanized Welded Wire Mesh Panel electric Galvanized Welded Wire Mesh Panel pvc Coated Welded Wire Mesh Panel quality Management: material Quality: we Choose the Best Low Carbon Wire or Stainless Steel Wire Material Available in China, We also have Very Strict Quality Requirement for Pvc Powder to Ensure It is the Leading Quality Within China. digital Controlled Welding Machine & Well-trained Staff: our Automatic Welding Machines Can Set Up Any Mesh Sizes No Matter It is Standard Type or Special Requirement; Our Fully Digital Controlled Techniques and Well-trained Staff Can Ensure the Even Mesh Size and the Accurate Dimensions of Panels. mesh Size Wire Diameter Panel Width & Length in Mm in Inch Mm 12.7mm 1/2inch 1.0mm - 2.0mm 3feet X 6feet 4feet X 8feet 5feet X 10feet 1m X 2m 1.5m X 3m 2m X 4m other Panel Sizes Can also Be Made According to Request 25.4mm 1inch 1.5mm - 3.5mm 31.8mm 1 1/4inch 2.0mm - 4.0mm 38.1mm 1 1/2inch 2.0mm - 5.0mm 50.8mm 2inch 2.0mm - 6.0mm 76.2mm 3inch 3.0mm - 7.0mm 101.6mm 4inch 3.0mm - 8.0mm 127mm 5inch 4.0mm - 9.0mm 152.4mm 6inch 4.0mm - 10.0mm.

• MOQ 1000 Piece(s)
• excellent qualityreasonable price

Heavy Type Expanded Metal is Made of High Quality Plain Steel After Being Expanded On the Automatic Expanded Machines. Because of the High Strength of Heavy Type Expanded Metal, It is Mostly Used as Walkways, Ramps and Catwalks of all Types. Our Automatic Heavy Type Expanding Machines and Our Well-trained Workers Ensure Our Heavy Type Expanded Metal with Even Size, Level and Flat Surface. We Can also Do Hot Dip Galvanized After Expanding. to Ensure the Quality of the Plain Steel Sheet Material, We have Signed Long Term Buying Contract with Tangshan Steel Group, One of the Best Plain Steel Supplier in China. specification of Heavy Expanded Metal Mesh sheet Thickness Opening in Width mm Opening in Length mm Stem Roll Width mm Roll Length mm Weight kg/m2 0.5 2.5 4.5 0.5 0.5 1 1.8 0.5 10 25 0.5 0.6 2 0.73 0.6 10 25 1 0.6 2 1 0.8 10 25 1 0.6 2 1.25 1 10 25 1.1 0.6 2 1.77 1 15 40 1.5 2 4 1.85 1.2 10 25 1.1 2 4 2.21 1.2 15 40 1.5 2 4 2.3 1.5 15 40 1.5 1.8 4 2.77.
