Sun Telecommunication

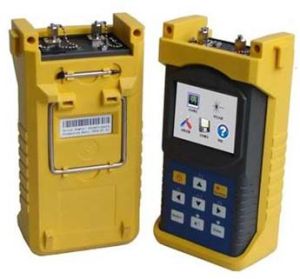

Sun-ot4900 handheld otdr sun-ot4900 series of handheld optical time domain reflector (otdr) is a high performance and cost-effective optical network analysis tester, with the features of lightweight, easy to use, highly intelligent and having a hotkey for automatic rapid testing. sun-ot4900 series handhold otdr can be widely used in metropolitan, wan, catv and other communication systems for fiber optic cable or fiber installation, troubleshooting, transformation and maintenance. main features: 1310/1550nm dual-wavelength testing easy to operate, completely operating the equipment by the touch-screen panel or keyboard button 3.5-inch tft lcd with brightness adjustment support, suitable for high luminance environment or night auto-sleep function to save power ni-mh battery-powered, low-voltage protection and continuous working time up to 8 hours hardware power switch, stopping electrical energy loss and ensuring the battery works longer hotkey for all important tests, ensuring higher test efficiency visible light source, facilitating to inspect fiber break complete pc analysis software for you to quickly and efficiently generate a professional otdr reports fttx ftth solutions

Fiber optic connector adaptor attenuator patch cord sun telecom’s fiber optic patch cords (jumpers) are available in either single mode or multi-mode for various applications such as long-haul telecommunication networks, short-link systems and equipment-to-equipment data links. application : fttx ftth connectors adaptor and attenuator : fc/pc fiber optic connector patch cords sc fiber optic connector patch cords st fiber optic connector patch cords lc fiber optic connector patch cords dlc fiber optic connector patch cords mtrj fiber optic connector patch cords sma905 fiber optic connector patch cords e2000 fiber optic connector patch cords d4 fiber optic connector patch cords mu fiber optic connector patch cords mpo fiber optic connector patch cords escon fiber optic connector patch cords biconic fiber optic connector patch cords din fiber optic connector patch cords fddi fiber optical connector patch cords lx.5 fiber optical connector patch cords

Sun telecom’s stand alone ethernet media converter is offers a cost-effective product to transmit distances up to 120km (single-mode fiber). It makes it easy to incorporate the advantages of fiber-based connection technology in a managed ethernet/fast ethernet network. Integrated auto cross-over mdi/mdi-x and nway capabilities make it simple to deploy within a network. Also, the “hot-swappable” design is ideal for scaling the system up or down quickly. features: web, snmp, console management hot-swappable module available with st, sc, or wdm simplex sc single-fiber connectors auto mdi/mdi-x on copper port auto-negotiation on copper port led status for link/activity, lfs, 100, loopback, and full duplex/collision link-fault signaling illuminates to indicate link failure link-fault signaling function can boot up redundant link if network is installed with primary and redundant link local and remote loopback fttx ftth p2p connection

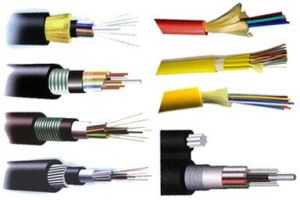

General outdoor armored fiber optical cable 1.central tube light armored fiber optic cable 2.stranded loose tube non-armored fiber optic cable 3.stranded loose tube armored cable 4.relief fiber optic cable 5.photoelectric hybrid cable 6.waterproof fiber optic cable the coloring fibers are positioned in a central loose tube and fillers are stranded around the metallic central strength member. the apl is longitudinal covering. the cable is completed with pe sheath. in the loose tube, gap of the core is filled with the water-resistant filling compound. Fttx ftth solutions characteristics: good mechanical and temperature resistant performance. Crush resistance, water blocking and flexibility

Feature: high speed process huge capacity fc, sc, st, lc, mu mtp, mpo, mt-rj upc or apc i.p.c. Polishing fixtures 20 connectors: fc, sc, st 24 connectors: lc & mu self adjusting pressure exceeds requirements for gr-326 end face geometry uses the new i.p.c. Holder technology yields the best results in the industry. No variability in result when polishing 1 or 20 connectors. polishes up to 24 connectors w/ mu & lc & 20 for sc, fc, & st. Efficient and fast processes for all connector types. built w/ high quality, heat-treated, stainless steel for amazing precision and durability specifications: applicable conn.: fc, sc, st, lc, mu, d4, e2000, mt-rj weight: 23.5kg dimensions: 230x230x255mm power: 220-240vac 50/60hz film size: 5"

Ethernet + VoIP + CATV Total Solutions SUN Telecom’s SUN-GE9100 series OLT featured with high reliability, flexible, easy maintain. It can support 8 GEPON PON ports and connect 512 remote ONU mostly (by 1:64 splitter), and provides 8 GE optical/electrical uplink interfaces. SUN-GE9100 OLT is an idea device applied to FTTB/FTTP/FTTH access solutions.

SUN-FS930 Single Fiber Optic Fusion Splicer Features: Automatic selection of optimal fusion splice program Automatic detection of fiber end face Automatic calibration of arc discharge Automatic fiber alignment function Automatic calculation of splice loss 5-inch color LCD monitor with clear digital image display Dual mode of view, separately view of X/Y axis, simultaneous view of X and Y axis Wind resistance function Built-in battery FTTX FTTH solutions Specifications: Applicable Fibers SM, MM, DS, NZDS Fiber Cleaved Length (mm) 12 ~ 16 (Coating Dia.: 250um) 16 (Coating Dia. 250 ~ 1000um) Fiber Diameter (um) Cladding diameter: 80 ~ 150 Coating diameter:100 ~ 1000 Fiber Count Single Fiber Aligning Method Core aligning Return Loss (dB) >60 Actual Average Splice Loss (dB) 0.02(SM), 0.01(MM), 0.04(DS), 0.04(NZDS) Splice Mode Auto & Manual Dimensions (mm) 150(L) x 150(W) x 160(H) Weight 3.52Kg including battery
