Supreme Superabrasives Co. Ltd.

• MOQ 5 Kilogram

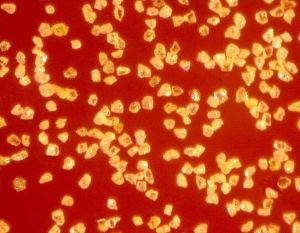

Our diamond grit boasts of top quality – well - shaped, evenly distributed, and highly wear resistant. It is widely used in the fields of machinery, electronics, aviation and space flight, optical instrument, glass, ceramic, oil, and geological drilling for the purposes. 1) Grinding, honing, and polishing alloy, glass, ceramic, gem stone, and so on; 2) Making solid polycrystalline diamond, polycrystalline diamond compacts, and other PCD products; 3) Coating the surface of a workpiece to enhance its wear and abrasion resistance ability.

• MOQ 2 Piece(s)

PCD wire drawing die was polycrystalline diamond core completely integrated with a tungsten carbide ring. The supported carbide ring can increase the toughness of the blank and bear more strong impact during wire drawing.

• MOQ 2 Piece(s)

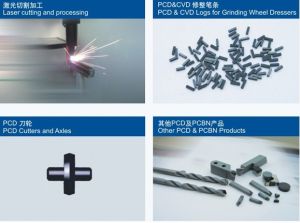

Armed with advanced facilities complete with laser cutting machines, wire cutting machines. And other processing instruments operated by highly trained skilled personnel. Supreme Superabrasives provides processing and production services in cutting, hole drilling, grinding, lapping. Polishing, and dressing of various types and sizes of superabrasive products We also welcome new designs, diagrams, and product samples to manufacture and process per customers' specific requirements.

• MOQ 2 Piece(s)

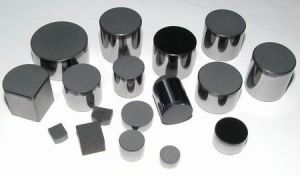

SUPREME Polycrystalline Diamond Composites (SUPREME PDC) rock cutting blanks consist of a polycrystalline diamond layer sintered with tungsten carbide substrate under ultra-high pressure and ultra-high temperature. SUPREME PDC include two series: 1. SSI Series: Flat interface PDC, suitable for drilling bits for low and medium hard rock formations. 2. SSII Series: Flat and non-planar interface PDC, with high level of hardness and abrasion resistance ability, suitable for oil and geological drilling bits, rock cutting bits, and stone processing tools.

• MOQ 2 Piece(s)

supreme cbn cutting tools blanks are composed by bn and pcbn two series: bn characteristics: 1. solid cbn 2. good wear resistance 3. two sides can be used as edges 4. high thermal resistance 5. excellent fracture resistance bn application: 1. high speed turning and milling of gray cast iron 2. turning of chilled iron, nickel-based iron and ductile iron pcbn characteristics: 1. good weld based in the composite cbn layer and tungsten carbide base. 2. high abrasion resistance. 3. good transversal repture strength resistance. 4. good chemic stability. 5. uniform dimension precision. 6. good consistency of processing. pcbn application: 1. turning of castiron. 2. powdered metals. 3. exotic materials and heat resistant alloys. 4. high speed milling of gray castiron.

• MOQ 2 Piece(s)

supreme pcd cutting tool blanks are available in 5 micron, 10 micron, 25 micron, and so on, mostly used for high precision cutting of non-ferrous metal (copper, aluminum, alloy ), finish processing of non-metal materials (porcelain, synthetic fibre, graphite materials), and wear resistance materials for surveying instruments, steering equipment, and supporting tools etc. advantages of pcd tool blanks: 1. long working life. 2. uniform surface finish. 3. reduces machine down time. 4. highly improved workpiece quality and excellent dimensional control. 5. increase productivity. 6. high material removal rate. 7. lower cost per piece. 8. the working life of a pcd cutting edge is usually 50 to 250 times longer than that of traditional sintered carbide cutting tools. the standard shape of supreme pcd cutting tool blanks is round. other shapes, such as rectangle, triangle, square, semi-circle and so on, can also be customized per customers' requirements.

• MOQ 5 Piece(s)

Supreme Diamond Wire Drawing Die Blanks are Polycrystalline Diamond (PCD) products produced by ultra-high temperature and ultra-high pressure, during process diamond powders are sintered together with strong grain-to-grain bonding in the presence of several metal catalysts (containing Cobalt). These PCD products have not only high wear resistance, hardness, and thermal conductivity, but also high mechanical strength and tenacity. Supreme Diamond Wire Drawing Die Blanks include two series: SL Series and TSL Series. Based on the application of wire drawing, each series has 5 grain sizes: 3 μm, 5 μm, 10 μm, 25 μm, and 50 μm. SL Series includes self-supported PCD die blanks in Hexagonal shape (SLH) and Round shape (SLR) in various sizes. These blanks are suitable for all types of wire drawing applications especially where cost-cutting is required. TSL Series includes tungsten-carbide-supported PCD die blanks in Round shape in various sizes. These products have a polycrystalline diamond core integrally bonded to a tungsten-carbide-supported ring which in turn enhances strength of die blanks. These features give the products stronger ability to withstand wire drawing with high intensity.

• MOQ 5 Piece(s)

Supreme Diamond Wire Drawing Die Blanks are Polycrystalline Diamond (PCD) products produced by ultra-high temperature and ultra-high pressure, during process diamond powders are sintered together with strong grain-to-grain bonding in the presence of several metal catalysts (containing Cobalt). Self-supported PCD die blanks in Hexagonal shape. Based on the application of wire drawing, each series has 5 grain sizes: 3 μm, 5 μm, 10 μm, 25 μm, and 50 μm. These blanks are suitable for all types of wire drawing applications especially where cost-cutting is required.

• MOQ 5 Piece(s)

We offer Self-supported Pcd Die Blanks. supreme diamond wire drawing die blanks are polycrystalline diamond (pcd) products produced by ultra-high temperature and ultra-high pressure, during process diamond powders are sintered together with strong grain-to-grain bonding in the presence of several metal catalysts (containing cobalt). self-supported pcd die blanks in round shape. based on the application of wire drawing, each series has 5 grain sizes: 3 î¼m, 5 î¼m, 10 î¼m, 25 î¼m, and 50 î¼m. these blanks are suitable for all types of wire drawing applications especially where cost-cutting is required
