Two-stage coal gasifier is specially designed for bituminous coal users, by which tar can be carbonized from gas to form free flowing light oil. The calorific value of gas produced by this gasifier is higher than that of gas produced by single stage series and it has good environmental protection effect.

On the basis of single-stage gasifier, km5q pyrolysis gasifier is developed by profiting from advantages of two-stage gasifier, which is more suitable for gasification of bituminous coal. It not only produces pyrolysis gas with high gas calorific value and light tar oil of low temperature but also has complete gasification of coal during pyrolysis. It is featured by small investment, high gas calorific value and short construction period.

Coal gasifier, also called gas generator, is a kind of environmental protection and energy-saving equipment with air and steam as gasifying agent and coal as main feed. In the gasifier, coal and gasifying agent have oxidation-reduction reaction at high temperature and gas mainly consists of combustible co and h2 is produced. It is used in many industries, such as metallurgy, ceramic, glass, non-ferrous metal, chemical, refractory material, machine, etc. Ceramic industry, metallurgical industry, mechanical industry, glass industry, chemical industry, refractory industry

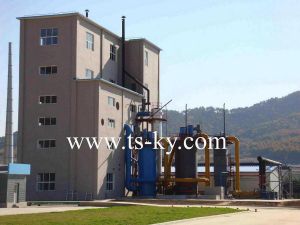

Producer gas is new type of fuel which can replace the nature gas and furnace oil.

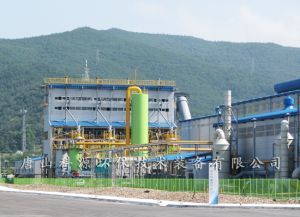

We are offering coal gasification equipment. Coal gasifier, also called gas generator, is a kind of environmental protection and energy-saving equipment with air and steam as gasifying agent and coal as main feed. In the gasifier, coal and gasifying agent have oxidation-reduction reaction at high temperature and gas mainly consists of combustible co and h2 is produced. It is used in many industries, such as metallurgy, ceramic, glass, non-ferrous metal, chemical, refractory material, machine, etc. Ceramic industry, metallurgical industry, mechanical industry, glass industry, chemical industry, refractory industry

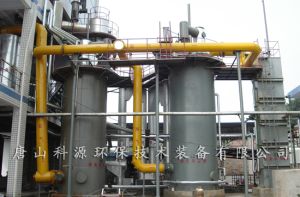

This equipment can remove the tar and dust from coal gas with high efficency.

The krs burners for hot gas made by our co. Have superior heating ability with crude gas as its fuel, homogeneous mixing of combustion-supporting air sprayed in a revolving and multi-section way with gas, steady and complete combination and short flame, which will easily form high temperature combustion zone. Since air pressure is stronger than gas pressure, air sprayed at high speed can inhale gas according to proportion, the burner itself has certain ability to automatic adjustment. The burner is characterized by small volume and light duty, easy to install and maintain. It has low requirements on gas pressure (p≥100pa is ok) and its burning capacity is available for 80～5000 nm3h。

We offer Desulphurization System. Application scope Applicable to the purification and desulfurization of producer gas and town gas. (for desulfurization of H2S). Characteristics: The purification degree of gas can be adjusted according to actual need and thus steady control of H2S content in gas can be realized. 1. Compared with dry desulfurization, this method needs a lower operating cost and avoids poor desulfurization effect and fluctuation of gas pressure caused by sulfur absorption in dry desulfurization. 2. Compared with other methods of wet desulfurization, this method is characterized by stable and safe operation with desulfurization efficiency over 97％. The H2S content of gas will be reduced to below 50mgNm3.

This coal gasifier is characterized by high capacity, complete gasification, good adaptability to various coal types, high gas calorific value, easy operation and good security. It is widely used in many industries.
