Whirlston Machinery

Zhengzhou, Henan, China

• MOQ 1 Set(s)

We are offering tqsf series gravity destoner. tqsf series gravity destoner introduction tqsf series gravity destoner is designed on the basis of original gravity destoner for removing small stones and other impurities. It has high efficiency in separating the heavy impurities such as stone, mud from rice, paddy, wheat, soybean and other grains for grain processing plant. Besides, it can simplify the technological process and improve the milling quality. This equipment adopts advanced reverse cleaning theory, efficiently removing the impurities from the grain, which provides additional protection to downstream process. Features of tqsf series gravity destoner * reasonable design, small volume, low energy consumption, stable operation, good stone-removing effect. * grades the grains and removes the stones simultaneously. * driven by two vibratory motors, no grain releasing from the stone outlet in the interval of operation. * incline angle of sieve, amplitude and air volume can be adjusted. * fully enclosed structure, no dust, low noise, safe and health. * be applicable for seed selection too. Working principle of tqsf series gravity destoner due to the influence of airflow and linear reciprocating vibration of sieve, the materials are graded automatically after they enter into the upper sieve. Low-density materials float above the upper sieve, then being discharged from outlet. And the light impurities will be taken away by airflow. High-density materials mixed with stones pass through the sieve, then fall on the lower sieve for second gravity separating. Under the impact of inertia force, the stones and high-density materials move in the opposite directions, then being discharged from the front-end outlet and back-end outlet respectively.

• MOQ 1 Set(s)

Tqlm series rotary paddy cleaner. Introduction tqlm series rotary paddy cleaner is suitable for cleaning and classifying the grain. Though equipping with different sieve hole specification which depends on circumstances of different material, the paddy cleaner can remove all sizes of impurities from grain during plane rotary motion. The sieve surface rotates in the plane, while the movement of materials on the sieve surface is spiral, so it can ensure the sufficient screening for high cleaning efficiency. cleaned_rice advantages of rotary paddy cleaner * compact structure, small volume, reliable operation, good sealing performance and long service life. * plane rotary motion ensures higher efficiency. * changing the sieve hole specifications according to the material size to lower the power consumption and increase the output. * by adjusting the rotary speed and balance block weight, we can change the amplitude of machine, achieving the optimum cleaning effect. * matched with vertical suction duct, no raise dust. * suitable for assorted grains such as rice, wheat, maize, bean, etc. * multiple sizes and specifications to meet different requirements. paddy_rice_cleaning how does the rotary paddy cleaner work? the grain enter into the sieve from feed inlet, then fall on the first layer of sieve, where big impurities are left and then discharged out of the machine. The grain then fall on the second sieve plate, which is suitable for removing small and tiny impurities. The small and tiny impurities can pass through the sieve, then being discharged. The grain left on the second sieve will enter into the hopper of vertical suction duct under the impact of gravity. In the vertical suction duct, the light impurities will be removed when they following with the grain, thus finishing the cleaning and classifying process.

• MOQ 1 Set(s)

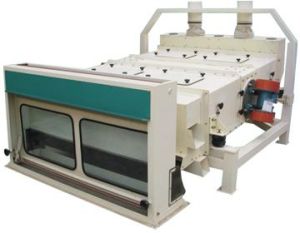

We offer tqlz series vibration cleaner. tqlz series vibration cleaner introduction tqlz series vibration cleaner can grade the materials according to the materials granularity, which is widely applicable to clean up materials in grain processing plant, rice mill, flour mill, oils & fats factory, feed industry, chemical industry, food industry, etc. It combines the screening and winnowing, ensuring grains cleanness degree. By changing sieve plate with different specifications, it is especially suitable for removing large, small and light impurities from wheat, paddy, corn and oil plants. paddy_cleaning_in_hand main features of tqlz series vibration cleaner * low noise, low energy consumption, stable operation. *compact structure, small volume, good sealing performance, high productivity, good cleaning effect. * driven by double-vibration motor, the size of excitation force, vibration direction and the screen body angle can be adjusted. * equipped with vertical suction duct, no raise dust. rice_cleaned * effectively prevent the blockage of sieve holes, easy to maintain. how to repair & maintain the vibration cleaner? * check all the tightening parts frequently, timely tighten the loose parts. * rubber blanket is easy to wear, check it regularly and change the ruptured one timely. * clean the sieve plate regularly, strictly prohibit beating the sieve plate by sharp iron. * check the sealing condition regularly, replace the broken or aged one. * an overhaul is required after one year’s operation. Replace the lining board, maintain the sieve surface, remove and check the vibration motor, change the oil for motor bearings.

• MOQ 1 Set(s)

Csqz series combined cleaner introduction csqz series combined cleaner consists of two procedures, cleaning and de-stoning. It is the ideal equipment for removing big or small impurities and stones from raw grain, rice, wheat, corn, soybean, sesame, etc. For grain processing plant or flour mill. paddy csqz series combined cleaner features * good mechanical performance, compact structure, small floor space. * low noise, easy to operate, convenient to maintain. * high cleanness efficiency, low energy consumption. * well-sealed construction, no dust leakage, dust and light impurities can be removed by air suction system. * different sieves driven by two vibrating motors, suitable for cleaning large and small impurities. csqz series combined cleaner structure csqz frame design is the most prominent structural feature, which satisfies the process requirements of winnowing, sieving and gravity separating. It is neither simply put the vibration cleaning sieve, winnowing machine and specific-gravity stoner together, nor divide the work scope of each cleaning process according to combination type, but make sure that the materials work on these three principles. In order to achieve the optimal effect of the trajectory state, the materials must follow some rules of movement while working, such as direction, speed, acceleration, amplitude, frequency, etc.
