Detailed Product Description: Man-made uncoiler-Roll forming machine-compture control system-hydraulic control system-form cutter 1.Leak frame load-bearing:4T 2. Rack: welding with 300H steel 3. The form of forming machine guiding filling: side skip 4.The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm. 5. Diameter of Shaft is: 72mm 6.Chain: 0.6 inch single row 7. Main motor power:3kw double pole reduction box 8. Forming Speed: 8m/min 9. Number of tracks: 11 tracks 10. Roller material: high grade 45#steel 11 Hydraulic station power: 3kw 12 Hydraulic station oil pump: gearpump 13 Cutting type: hydraulic cut 14 Forming Cutting blade: Cr12 15 Heat treatment on cutting blade: HRC58°-60° 16 Thickness of coil sheet: 0.3-0.8mm 17 Coil width of material: 1000mm 18 Index error of length: ±2mm 19 Controlling system: PLC 20 Voltage: 380V 3phase 60 HZ or at buyer’s requirement suitble material:galvanized steel, aluminum Width of the plate:1000mm Rollers:10-12 rows Thickness of the plate:0.3-0.8mm Weight:5-8t Material of main equipment: Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm. Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm. Cutting blade: Cr12 mould steel with quenched treatment. They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.

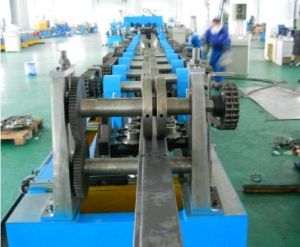

This Machine Can Make Both C&z Purlin in One Machine, No Need Change Any Parts of the Machine. Can Make the Specifications from 100-300mm, and Thickness 1.0~3.0mm. It Change the Specifications Manually By Handwheel. the Customer Handlw the Wheel Beside Teh Machine, Can Change Any Size They Want. When Change C Profile to Z Profile, the Customer Only Need Turn Around Teh Rollers

• MOQ 1 Set(s)

Floor Deck Roll Forming Machine ( Type 75-344-688) A. Technical specification 1. Type and specification: KXD 75-344-688 2. Technique parameters of the processing line (1) Plate Material: Galvanized plate (2) Thickness of the plate : 0.8-1.5mm (3) Input width of the plate: 1000mm (4) Effective width of the plate: 688mm (6) Productivity : 8-12m/min (7) Roller steps :27 rows (8) Roller material: 45# steel (9) Diameter of active shaft: 95 mm (10) Wall thickness of the main forming machine: 22mm steel plate (11) Main forming machine body : 450mmH steel (12) Transmission chain : 2 Reducer is18.5kw Xingxing Cycloid which works stably and no noise. (13) Cutting hydraulic systerm adopts CDF-10 gear pump, the motor power is 5.5kw, no noise, work stably, long life expentancy. (14) PLC control systerm, easy to operate, high precision and work stably. (15) Dimensions of major structure:16000mm*1200mm*1000mm 3. Processing technique and deployment Processes: Automatic Decoiler(5T) Roll Forming Machine PLC System Hydraulic System-Post Cut-Automatic Stacking Components of line: NO Name Unit Qty 1 Automatic Decoiler(5T) set 1 2 Main Machine For Roll Forming set 1 3 PLC System set 1 4 Hydraulic System set 1 5 Post Cut set 1 6 Automatic Stacking(Length20) set 1 4. Technical Specification (1) Automatic Decoiler (2) Roll-Forming M/C: Steps: 27 Roller Material: 45# steel Voltage:3 phase, 440/220, 60HZ. line speed:8-12m/min; Rolling chromium thickness:0.05 mm (3) Cutting Mechanism It adopts hydraulic drive and automatic location to decide the dimention and cut the target products. Match equipment : one set of cutting tool, one hydraulic tank , one cutter machine. Stop to cut , Post cut cutting length tolerance: 2mm Cutting tool material: GCr12 with quenched treatment 62-64C (4) Hydraulic System It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank , the pump drive the cutter machine to begin the cutting job. Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves. Power of the oil pump: 5.5kw Hydraulic oil :40# (5)Computer control cabinet : It adopts Taida PLC to control(PLC can be chosen as your requirement). The target piece length is adjustable and digit of it can be adjusted Computed mode has two modes: automatic and manual one. (6)Counter One counter gauges length, pulses, and decides length (7) Automatic Stacking (Length20) Model Number 688 Type Tile Forming Machine Tile Type Colored Glaze Use Wall color as your requirement usage floor deck working voltage 380v/50HZ working speed 12m/min working mode automatically roller steps 27 roller material 45# steel main structure 400 H

• MOQ 1 Set(s)

Detailed Product Description 1, Roll Froming Machine:fast 2, Little Error 3, Quality is Stable roll Forming Machine Technical Parameters : 1. Hydraulic Loading Frame 2. Leak Rack Load: 6t 3. Rack: Using 300h Steel Welding 4. Forming Machine-driven Feeding Frame Forms: Lateral Slide-style 5. Forming Machine Type: Wall-type Chain Drive 6. Shaft Diameter: 72mm Solid Shaft 7. Chain: 1 Inch Sinle . 8. Forming Motor Power: 3kw Speed Reducer 9. Forming Machine Speed: 8m/min 10. Forming Machine Road Number: 11 11. Roll Material: High Quality Steel Forged Playing Pieces 12. Hydraulic Station Motor: 3kw 13. Hydraulic Pump Station: Gear Pump 14. Cutting Method: Hydraulic Shear 15. Scissors Film Forming Material: Cr12 16. Shearing Blade Heat Treatment: Hrc58 ° -60 ° 17. Rolling Thickness :0.3-0 .8 Mm 18. Material Expand Width: 1000mm 19. Length Accuracy: ± 2mm 20. the Computer Use of Plc, Computer Operation
