Xinxiang Bashan Aero Material co.,ltd

Xinxiang, China

• MOQ 500 Kilogram
• Conditionhard,soft.semihard
• Diameter0.10mm,0.15mm,0.20mm,0.25mm,0.30mm
• Number Of Floweryellow

• Length1d=2,1.5d=3,2d=4,2.5d=5,3d=6
• Diameter2
• pitch0.4
• circles2.9,4.9,6.9,8.9,10.9
• outside diameter in free condition2.6-2.8
• weight/1000pcs0.02,0.03,0.05,0.06,0.07

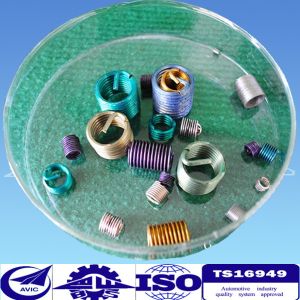

We offer helicoi. 1．Having more than 50 years of experiences in this field, and with background of military technology. 2. We can supply both Inch system and Metric system insert to meet customers' need, according to DIN standard. 3.Passed ISO9001:2008 quality certificate 4.Passed ISOTS16949:2009 certificate 5.Passed GJB9001A-2001 military quality certificate. 6.Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GBT5330-2003, HB1862-93 7. Supplier of ABB company, Ericsson company, China XD Electric company, Fast Group. 8 There are two forms: free-run type and screw-locking type. 9 Thread insert is used for manufacturing high strength, wear-resistant, high duty and vibration-proof in metallic and non-metallic materials such as Al, Mg alloy, plastic to form M and MJ thread. 10.Features: a. Abrasion resistant b. Corrosion resistant c. Heat-stable d. Saving material e. Increasing the bearing capacity and fatigue resistant of the insert connecting part。 11.Material and application condition Material Grade Temperature Under Used Tensile Strength Under Room Temperature Surface Stainless Steel 0Cr18Ni9 425℃ short time 315℃ long time >1400Mpa No coated Coat lubricant on the surface Coat Cr Coat Ag 1Cr18Ni9Ti 1Cr18Ni9 Alloy Inconelx750 Nimonic90 750℃ short time 550℃ long time >1400Mpa No coated Coat Ag size M2*0.4 length 1D=2mm, 1.5D=3mm, 2D=4mm circle 2.9K, 4.7K, 6.5K type free-running insert material stainless 304 color originalredblack coating plates the titaniumcadmiumgalvanization standard MERTRICUNCUNF weight1000pcs 0.02KG, 0.03KG, 0.05KG outside diameter 2.62—2．76 drill diameter 2mm install tool siz
