Zhejiang Tiebao Electric Motor Co. Ltd

Taizhou, China

• ISO9001-2000CQC

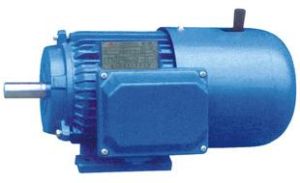

YEJ series electromagnetic brake motor can acquire slow brake time by changing the connection in the terminal box as request YEJ series electromagnetic brake motor This series can acquire slow brake time by changing the connection in the terminal box as per customer's request. This series have low noise and the braking performance is reliable. The working principle: The electromagnetic-brake motors acquire 198V direct current rectified from 220V AC when the power is on. At the same time, the armature is attracted by electromagnet. This makes brake disc ratable and enables motor to run freely. When the power is off, the electromagnet loses electromagnetic force. The armature is pushed by the spring and sticks to endshield of the motor immediately, the rotation is stopped therefore. This series are widely used in machine tools, packaging machinery, woodworker machinery, food processing machinery, chemical engineering machinery, textile machinery, construction machinery, gear reducer and so on. Conditions: Motors of this series can continuously run at the rated power under the following conditions: Altitude: Above sea level, not exceeding 1000m. Ambient temperature: It varies with seasons but not exceeding +40 Frequency: 50Hz, 60Hz Connection: Y-connection for 3kW and below whereas delta-connection for 4kW and above. Duty: Continuous(S1) Insulation class: B, F Protection: IP44, IP54 or IP55 NOTES: Imported bearing and locked bearing at D-end on request.

• MOQ 10 Piece(s)
• ISO9001-2000CQC

YCT series electromagnetic speed adjustable motorIt is a kind of governor motor which adopts the method of changing exciter current to adjust output rotational, . It has the advantages of high efficiency, low noise, low vibration, wide governor range, no out-of -control area and with negative feedback of speed. Its power grade and installationsize conform to the standard of JB/T7123-93 and IEC, and it was jointly listed by State Planning. Commission, State Economic Commission, Ministry of Finance, Ministry of Power & Machinery as well China Industrial and Commerce Bank as Sixth lot, seventh lot, tenth lot energy-saving product. On the first session of China Machinery Product Fair, it was appraised as "excellent energy-saving product in machinery industry". It consists of three-phase induction motor, electromagnetic difference change clutch and speed indicating generator. It is usually mated with Model JD or ZTK controller to form a set of AC stepless governor device. It is widely applicable to the industries of textile, dying, cement, paper-making, printing, rubber, plastic, sugar-making, agitation, air blowing, fiber and cable, etc. Technical data: Power range 0.55-90kw center Height of frame: 112-355 rated voltage of the motor: 380V(three phase)220V(single motor) excitation winding: No more than 90VV(DC) rated voltage of the controller: 220V rated frequency: 50Hz or 60Hz or special Pretection class: B Duty type: S1 Connection: Y start--0.12kw up to 3kw delta--4kw or more We have passed the tests and get certificates as: ISO90001: 2000, CE, CCC, GOST R, etc. We can produce motors of special technical requirements (volatage, frequency, nameplate, fixing measurement, etc. ) as you ordered.

• MOQ 10 Piece(s)
• ISO9001-2000CQC
• Number Of FlowerSeries Motors
• Country of OriginIndia

• ISO9001-2000CQC

YVP series Frequency conversion speed-adjustable motors have the advantages of wide range adjustable speed. 1. Wide range of adjustable speed 2, ittle vibration and low noise 3, high reliability 4, easy maintenance YVP series Frequency conversion speed-adjustable motors have the advantages of wide range of adjustable speed, little vibration and low noise. The cage type of structure makes it with the advantage of high reliability and easy maintenance. YVP series Frequency conversion speed-adjustable motors adopted the advantages of the same-type motors of industry-advanced countries such as German and Japan, is designed with the CAD technology. It can be coordinated with the similar type frequency converter, so it has a good interchangeability and commonality. Based on axial-flow ventilator assembled independently, YVP series can guarantee its perfect cooling effect at different speed. Related parameters: Power range: 0.55~ 200KW cooling method: IC411 Stand center height: 80 ~ 315mm Rated Voltage: 380V (produced under conditions of use: 220V-660V) Insulation class: B F H Protection class: IP44 IP54 (or IP55) Working system: S1

• MOQ 10 Piece(s)
• Brand NameTiebao
• Country of OriginIndia
• Place of OriginChina
• Frame 80 to 315wood carton
• Number Of FlowerThree Phase Asynchronous Motor
• Model NumberY2
