Zhongshan Anwen Technology Co., Ltd

ZHONGSHAN, China

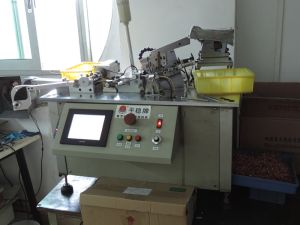

Zhongshan anwen technology co., ltd is founded in 1998,as one of the leader manufacturer in mini toroidal coil winding machine,our 10 years of experience have produced the most advanced and full automatic toroidal coil winding machine,mini toroidal coil is used for mang wide band,pulse and power transformers and inductors.anwen’s customer service is just as important to us as the quality of the coil winding machine. Thank you for the opportunity of servicing your toroidal winding production requirements. If there are any questions please do not hesitate to contact us today. 二、principal and optional features： • fully automatic winding • direct winding onto cores • ability to control winding speed • speed turns and rotator control • dual language option in english and chinese for programming and display • winding mini magnetic toroidal coil • display the real-time status in a touch screen hmi • plc control system can store upto to 1000 single programs. Each program can • be edited with 10 different winding steps • built in fiber optic turns sensor; double display, adjustable easily, utmost accurate, stability and reliability. • programmable pitch control for wire spacing programmed by the plc • high capacity,high-quality,high efficiency. 三、specification/capabilities maximum wire size:0.18mm (#33awg) minimum wire size:0.05mm (#44awg) magnetic maximum o.d:13mm (0.51") magnetic minimum o.d:2.9mm (0.115") magnetic minimum i.d:1.00mm (0.040") magnetic maximum height:8.0mm (0.315") wire spacing:programmable with controller segment winding:programmable with controller progressive winding:programmable with controller rotator motor:hybrid stepper motor main motor:servomotor power requirement:ac 220v 50/60hz winding speed:variable to 700tpm carted dimension:146cmx70cmx140cm cross weight:210kg factory address:4f 16 building,torch hi-tech industrial development zone,zhongshan city,guangdong pv., china. Office address: no. 10,chuangye road,torch development zone,zhongshan city,guangdong pv., china.
