Zibo Taiguang Electrical Equipment Fac.

Zibo, China

• MOQ 20 Piece(s)

products have Been Sold to 30 Provinces and Districts Including Taiwan and also have Been Exported to Over 20 Countries in Asia, Africa, Europe, America and Australia. now We are Looking for Agency in Africa and Europe, We Warmly Welcome Customers from all the World to Visit Our Company and Estanlish Long Term Business Relations! practice Proves that Taiguang Insulators Has Superior Performance and Longer Life please Don't Hesitate to Contact Us Online, We Will Make Favorable Response At First Time

• MOQ 20 Piece(s)

Design: 1) GB/T19519-2004; IEC; ANSI 2) KEMA certification, ISO 9001 3) 10~1000kV / 70~600KN 4) Material: composite Polymer 5) Self-refined silicone rubber with imported raw material from DOR CORNING CO. USA; Fumed silica is imported from CABOT CO. in the USA and WACKER CO. in Germany. 6) Weathershed: silicon-rubber sheds are the feature of TAIGUANG technology. 7) Made of ECR core, acid and high temperature resistance. 8) Metal end fittings: advanced compressing technique with Acoustic Emission Detector imported from Finland. Performance: 1) Excellent electrical insulation properties and restoration of insulator performance 2) High mechanical strength 3) Good features of light weight, self cleaning, easy to install, anti-aging. 4) Good resistance to soiling and flashover 5) Hydrophobicity of sheds meets class HC1

• MOQ 20 Piece(s)

Design: 1) Gb/t19519-2004; Iec; Ansi 2) Kema Certification, Iso 9001 3) 10~1000kv / 70~600kn 4) Material: Composite Polymer 5) Self-refined Silicone Rubber with Imported Raw Material from Dor Corning Co. Usa; Fumed Silica is Imported from Cabot Co. in the Usa and Wacker Co. in Germany. 6) Weathershed: Silicon-rubber Sheds are the Feature of Taiguang Technology. 7) Made of Ecr Core, Acid and High Temperature Resistance. 8) Metal End Fittings: Advanced Compressing Technique with Acoustic Emission Detector Imported from Finland.

• MOQ 20 Piece(s)

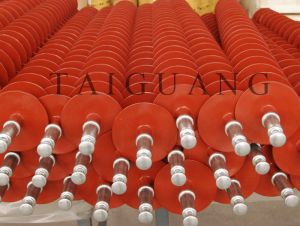

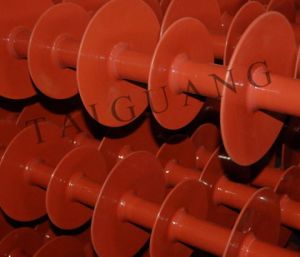

• Number Of FlowerSilicone Insulator

FXBW-400kV/210kN 1.Standard: IEC, ANSI 2.Min creepage distance: 16000mm 3.Distance between corona ring: 4120 4.Min thickness of housing: >3mm 5.Power frequency withstand voltage(Wet): 850kV 6.Lightning impulse withstand voltage: 1800kV 7.Switching impulse withstand voltage: 1240kV 8.Specified mechanical load(SML): 210kN 9.Mechanical failing load >255kN 10.Routine tensile load 105kN 11.The ball coupling IEC120-20
