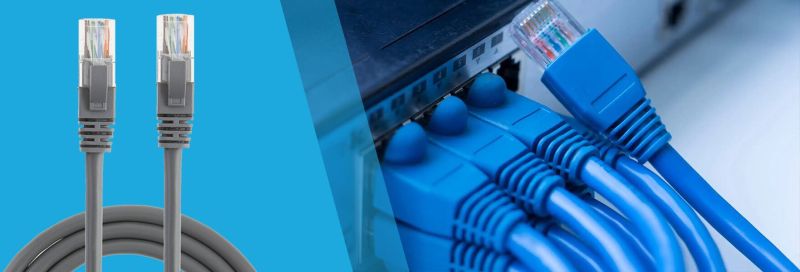

Computer LAN Cables To begin this article lets first start with exactly what is a LAN? A LAN stands for local area network and it is a computer network that interconnects computers in a certain area such as homes, universities, offices, commercial buildings, labs and just about any place with a range of computers in a close vicinity. LANs are vital in computer networking and just about any computer you use is connected to another device in some way. Not only are there small scale network connections but they can vary in size. What about over large areas of land, say large corporations and governments? These are called wide area networks.

his FR PVC Compound has a high oxygen and temperature index. These properties help in restricting the spread of fire even at very high temperatures. This special compound also offers high insulation resistance and dielectric strength. These ISI marked wires meet the requirements of IS 694:1990. In addition, they also offer Fire Retardant properties which means extra protection against electric shocks, short circuits and fires.

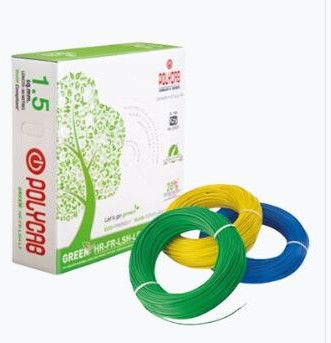

Green Wire Conductor Resistance (DC) of Solid: 65 /km @20C. (Max) Conductor Resistance (DC) of Stranded: 175 /km @20 C. (Max) Tensile Strength in PVC Jacket 12.5 N/mm (Min) Elongation in PVC Jacket 150% (Min)

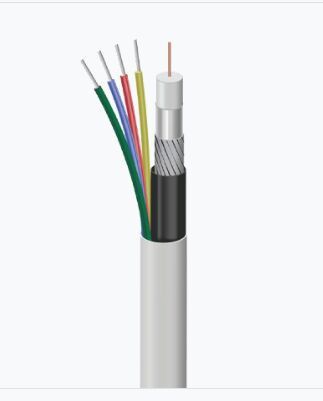

CCTV Cables Accuracy in Power and Video Signal transmission 4+1 CCTV Cable and 3+1 CCTV Cable Transmit the complete video frequency range with minimum distortion or attenuation Designed to optimize the quality of video signals Solid annealed bare copper conductor of electrolytic grade ensures complete elimination of MEI / RFI from the video signals.

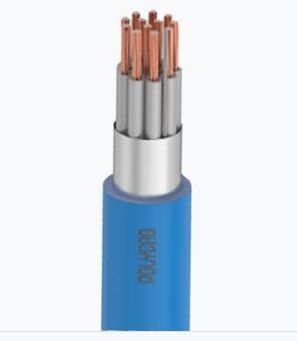

BMS Cable shielded 300V Polycab BMS 300 MC-A7 cables generally conforming to EN 50288-7, are designed for transmission of analogue and digital signals in the building management system. The cables are useful for controlling & monitoring of diverse applications inside the building Core-Red & Black Core-Red, Black & Yellow-green Core-Red, Yellow, Blue & Yellow-green Core & above -White/Grey core with number printing VOLTAGE RATING: 300 V OPERATION TEMPERATURE: Max.: PVC 70C CORE IDENTIFICATION: STANDARD AND REFERENCES: EN 50288-7 EN 50288-1 EN 60228 EN 60332-1-2 OUTER SHEATH COLOUR: Blue

Braided Cables Annealed bare bunched copper with class 5 conductor, PVC insulated, PVC inner sheathed, Tinned copper wire braiding / G.I wire braided, PVC transparent / PVC sheathed Cable for industrial use sizes 0.5 to 95 Sqmm with 2C to 4C. CONSTRUCTION High flexibility Better EMI suppression Low emission of toxic gases Low volatile, organic, content-less contamination

POLYCAB A2XFY MC-3, Stranded compacted aluminium conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel Flat strip armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth VOLTAGE RATING: 650/1100 VOPERATION TEMPERATURE: 90CShort circuit temperature 250CCORE IDENTIFICATION: Red, Yellow and BlueSTANDARD AND REFERENCES: IS 8130:2013IS 5831:1984IS 3975:1979IS 7098-1:1988BENDING RADIUS: Fixed installation 12 x Overall diameterCOMPLIANCE: Conductor resistance - IS 8130:2013Insulation resistance - IS 7098-1:1988Flammability test - IEC 60332-1:2015

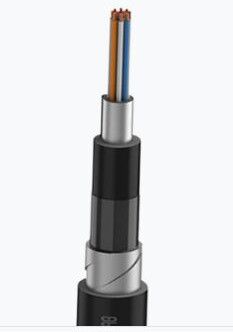

Telephone Cables Solid Polythene Insulation Copper Conductor, Jelly Filled, Core Wrapped Polyester, Moisture Barrier Polyal Screened, Black Polythene Inner Sheath , Double Steel Tape Armoured , Black 03C Polythene Outer Sheathed Under Ground Armoured Telecom Cable As Per GR/CUG-01/03 Aug 2003. Polycab Brand Jelly Filled Telephone Cables, Solid Annealed Copper, Polythene Insulated, Petroleum Jelly Filled With Poly-Al Laminate Moisture Barrier, Polythene Sheathed, G.S.Tape Armoured Polythene Jacketed Telephone Cables As Per Dot/ Polycab Specification

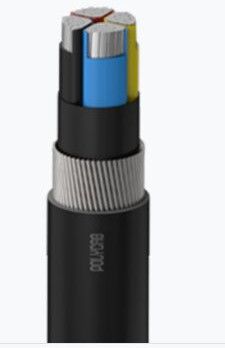

Aluminium Conductor POLYCAB A2XY MC-3.5, Stranded compacted aluminium conductor, XLPE insulated, and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth CONSTRUCTION Upto 1.1 kV 1.5 sqmm to 1000 sqmm cable range Low Voltage Cable with 1, 2, 3, 3.5 & 4 cores 2 core to 100 core, 1.5 & 2.5 sqmm control cable range Aluminium / Copper conductor XLPE insulation, PVC insulation Armoured / Unarmoured FR / FRLSH / PVC ST2 / LSZH sheathing

Speaker Cables We are dealing all sizes of Speaker wires.We offer and deal in wide range of Speaker Wire. Finding usage in different industrial applications, we ensure these cables are quality certified and deliver optimum durability and reliability in the involved operations. Further, we can offer these in different specifications to choose from. 1.5 Sqmm x 2 Core Twin Parallel Speaker Cable With High Quality Oxygen Free Copper Conductor Ensuring Excellent Sound Quality For Expensive Sound System.
