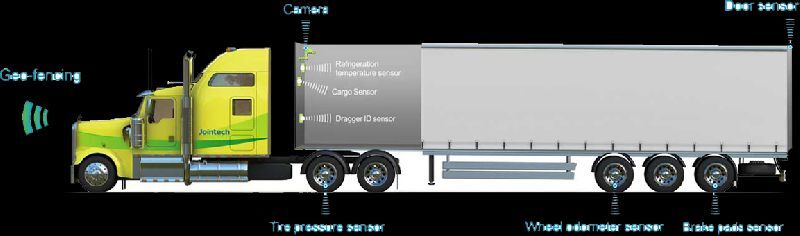

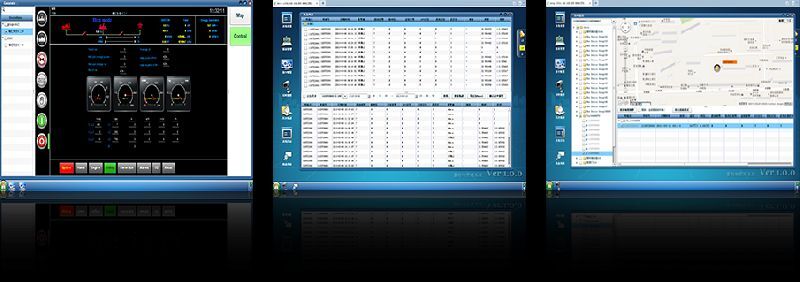

Leading Manufacturer, Supplier & Retailer of Smart Passive Keyless Entry System, Generator Status Monitoring System, Ascent Fleet Management System, Jointech Fleet Management System and Network Communication System.
PKE-100L Smart Passive Keyless Entry System adopts global top RFID technology. It has the same design and quality with the luxury vehicle of Benz S600 and BMW 7 series. With its extremely high performance, compatibility and stability, more and more car owners share this product to make their cars more security and intelligent.
Advantages & Features:
3D antenna professional design for UHF/LF
Automotive qualified connectors, cables and chips
Super low-power design
RFID anti-collision tech
FHSS high security
Over loading protection
Emergency entry policy
Specifications & Functions:
Passive Keyless Lock/Unlock Functions
Remote Lock/Unlock
Morse Decoding Unlock Supported
Anti-hijacking
Search Car
Trunk Open
Release Smart Key (Exhibition Mode)
Low Battery Warning
Saving Power Mode
Smart Keys Switching
Auto Window-Up (Changes according to car’s specifications; realized by relays)
Window Closer (optional) is recommended to replace relays for less installation labor.
Components:
Main unit x1
Main cable x1
Smart key x2
Antenna x2
Diode x4
Relay x3

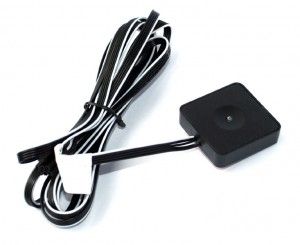

Morse Decoder x1 (optional)
Recommendation:

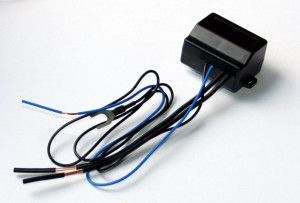

Strengthen your car’s security with external Fuel Circuit Disconnector
Update your PKE-100L to Push Start System
Vehicle Coverage: This product is widely compatible for over 95% of world car models
Keyless Entry Unit Parameter
| Working voltage: | DC 9V-16V |
|---|---|
| Main unit static current: | < 12mA |
| Smart key response distance: | 2.0M < distance < 2.5M |
| UHF frequency: | 315MHz / 433.92MHz |
| LF frequency: | 25KHz |
| Remote distance: | Open space > 40M |
| Working temperature: | -40°C – 105°C |
| Working humidity: | < 95% |
Remote Key Parameter
| Working voltage: | DC 2.1V-3.6V |
|---|---|
| Static current: | < 12μA |
| Working frequency: | 25KHz / 433.92MHz |
| Battery model: | CR2032 |
| Working temperature: | -25°C – 80°C |
| Working humidity: | < 95% |
| Battery life: | > 16 months (average) |

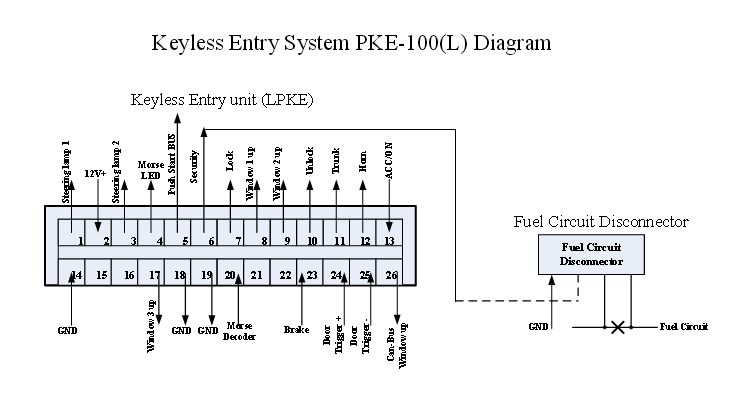

Diagram
