Technical Specification
| TECHNICAL SPECIFICATIONS | 2750 | 2200 | 1500 |
|---|---|---|---|
| Height of centre from the table | 350 mm – (13.8″) | 300 mm | 265 mm |
| Maximum swing over table | 700 mm – (27.5″) | 600 mm | 530 mm |
| Maximum head offset | 140 mm – (5.5″) | 140 mm | 100 mm |
| Maximum distance between chuck | 2725 mm | 2150 mm | 1450 mm |
| Maximum distance between centers | 2800 mm | 2200 mm | 1500 mm |
| Maximum weight admitted between chuck | 1250 kgs | 500 kgs | 250 kgs |
| Diameter of self centering chucks | 250 mm – (10″) | 250 mm | 200 mm |
| Diameter of grinding wheel | 813 mm – (32″) | 813 mm | 710 mm |
| Grinding head feed per turn of handle wheel | 1 mm | 1 mm | 1 mm |
| Fast grinding head feed with control | 350 mm | 175 mm | 150 mm |
| Micrometeric grind head feed | —– | 175 mm | 150 mm |
| Work head spindle rotation speed (variable) | 25 – 100 rpm | 19 – 90 rpm | 25 -100 rpm |
| Table slow feed per turn of hand wheel | 5 mm | 5.4 mm | 5.4 mm |
| Table fast feed per turn of hand wheel | 3000 mm / min. | 15.2 mm | 15.2 mm |
| Automatic table movement | —– | 1 set | optional |
| Grinding wheel spindle | 760 rpm. | 760 rpm | 900 rpm |
| Grinding wheel motor | 7.5 hp / 5.5 kw/ 1440 rpm | 5.5kw / 7.5 hp/ 1440 rpm | 3.7 kw / 5 hp/ 1440 rpm |
| Work head motor | 1 HP / 0.75 kw/ 1440 rpm | 0.37kw / 0.5 hp/ 1440 rpm | 0.37 kw / 0.5 hp/ 1440 rpm |
| Coolant pump motor | 0.13 hp/ 2800 rpm | 0.13 hp/ 2800 rpm | 0.13 hp / 2800 rpm |
| Servo control motor (grinding wheel slide) | 0.4 kw | 0.4 kw | 0.4 kv |
| Length of the machine | 5400 mm | 4500 mm | 3500 mm |
| Width of the machine | 2250 mm | 1750 mm | 1750 mm |
| Height of the machine | 1650 mm | 1650 mm | 1550 mm |
| Work space required | 7000 X 2000 mm | 5100 X 1900 mm | 5500 X 2000 mm |
| Work height required | 1650 mm | 1650 mm | 1550 mm |
| Net weight | 5 ton | 4 ton | 3.25 ton |
| Gross weight | 6.5 ton | 4.5 ton | 4 ton |
| Shipping volume | 17 m3 | 17 m3 | 15 m3 |
Technical Data
| Model product name 3 Roll Plate Bending Machine | Working Roll Length | Bending Thickness (MS.) | Pre-Bending Thickness (SS.) | Top Roll Diameter | Bottom Roll Diameter | Motor H.P. | Lenght | Height | Width |
| MPBD-3R-0621 | 2100 mm | 6 mm | 4 mm | 160 mm | 140 mm | 3 | 3950 mm | 1160 mm | 1080 mm |
| MPBD-3R-0821 | 2100 mm | 8 mm | 6 mm | 190 mm | 170 mm | 5 | 3950 mm | 1160 mm | 1080 mm |
| MPBD-3R-1021 | 2100 mm | 10 mm | 8 mm | 210 mm | 190 mm | 10 | 3950 mm | 1160 mm | 1080 mm |
| MPBD-3R-1221 | 2100 mm | 12 mm | 10 mm | 230 mm | 210 mm | 10 | 4030 mm | 1275 mm | 1370 mm |
| MPBD-3R-1621 | 2100 mm | 16 mm | 12 mm | 270 mm | 250 mm | 15 | 4180 mm | 1385 mm | 1440 mm |
| MPBD-3R-2021 | 2100 mm | 20 mm | 16 mm | 300 mm | 270 mm | 20 | 4440 mm | 1630 mm | 1620 mm |
| MPBD-3R-2521 | 2100 mm | 25 mm | 20 mm | 330 mm | 300 mm | 20 | 4250 mm | 1850 mm | 1800 mm |
| MPBD-3R-3021 | 2100 mm | 30 mm | 25 mm | 360 mm | 330 mm | 25 | 4500 mm | 2000 mm | 1900 mm |
| MPBD-3R-4021 | 2100 mm | 40 mm | 30 mm | 390 mm | 360 mm | 30 | 4900 mm | 2200 mm | 2000 mm |
| MPBD-3R-5021 | 2100 mm | 50 mm | 40 mm | 430 mm | 390 mm | 40 | 5200 mm | 2500 mm | 2200 mm |
| MPBD-3R-0626 | 2600 mm | 6 mm | 4 mm | 190 mm | 170 mm | 5 | 4450 mm | 1160 mm | 1080 mm |
| MPBD-3R-0826 | 2600 mm | 8 mm | 6 mm | 210 mm | 190 mm | 10 | 4450 mm | 1160 mm | 1080 mm |
| MPBD-3R-1026 | 2600 mm | 10 mm | 8 mm | 230 mm | 210 mm | 10 | 4530 mm | 1300 mm | 1370 mm |
| MPBD-3R-1226 | 2600 mm | 12 mm | 10 mm | 270 mm | 250 mm | 15 | 4680 mm | 1350 mm | 1450 mm |
| MPBD-3R-1626 | 2600 mm | 16 mm | 12 mm | 300 mm | 270 mm | 15 | 5000 mm | 1650 mm | 1650 mm |
| MPBD-3R-2026 | 2600 mm | 20 mm | 16 mm | 330 mm | 300 mm | 20 | 5000 mm | 1850 mm | 1850 mm |
| MPBD-3R-2526 | 2600 mm | 25 mm | 20 mm | 360 mm | 330 mm | 25 | 4900 mm | 1950 mm | 1850 mm |
| MPBD-3R-3026 | 2600 mm | 30 mm | 25 mm | 390 mm | 360 mm | 30 | 5400 mm | 2150 mm | 2000 mm |
| MPBD-3R-4026 | 2600 mm | 40 mm | 30 mm | 430 mm | 390 mm | 40 | 6000 mm | 2250 mm | 2200 mm |
| MPBD-3R-0631 | 3100 mm | 6 mm | 4 mm | 210 mm | 190 mm | 7.5 | 5000 mm | 1200 mm | 1100 mm |
| MPBD-3R-0831 | 3100 mm | 8 mm | 6 mm | 230 mm | 210 mm | 10 | 5100 mm | 1300 mm | 1400 mm |
| MPBD-3R-1031 | 3100 mm | 10 mm | 8 mm | 270 mm | 250 mm | 10 | 5200 mm | 1400 mm | 1500 mm |
| MPBD-3R-1231 | 3100 mm | 12 mm | 10 mm | 300 mm | 270 mm | 15 | 5500 mm | 1700 mm | 1700 mm |
| MPBD-3R-1631 | 3100 mm | 16 mm | 12 mm | 330 mm | 300 mm | 20 | 5700 mm | 1900 mm | 1900 mm |
| MPBD-3R-2031 | 3100 mm | 20 mm | 16 mm | 360 mm | 330 mm | 20 | 5700 mm | 1900 mm | 1900 mm |
| MPBD-3R-2531 | 3100 mm | 25 mm | 20 mm | 390 mm | 360 mm | 25 | 5900 mm | 2000 mm | 2100 mm |
| MPBD-3R-3031 | 3100 mm | 30 mm | 25 mm | 430 mm | 390 mm | 30 | 6000 mm | 2200 mm | 2300 mm |
| MPBD-3R-4031 | 3100 mm | 40 mm | 30 mm | 460 mm | 420 mm | 40 | 6200 mm | 2450 mm | 2400 mm |
| MPBD-3R-5031 | 3100 mm | 50 mm | 40 mm | 510 mm | 460 mm | 60 | 6400 mm | 2800 mm | 2500 mm |
| MPBD-3R-0641 | 4100 mm | 6 mm | 4 mm | 270 mm | 250 mm | 7.5 | 6200 mm | 1400 mm | 1500 mm |
| MPBD-3R-0841 | 4100 mm | 8 mm | 6 mm | 300 mm | 270 mm | 10 | 6200 mm | 1700 mm | 1700 mm |
| MPBD-3R-1041 | 4100 mm | 10 mm | 8 mm | 330 mm | 300 mm | 10 | 6400 mm | 1900 mm | 1900 mm |
| MPBD-3R-1241 | 4100 mm | 12 mm | 10 mm | 360 mm | 330 mm | 15 | 6500 mm | 1900 mm | 1900 mm |
| MPBD-3R-1641 | 4100 mm | 16 mm | 12 mm | 390 mm | 360 mm | 20 | 7000 mm | 2000 mm | 2000 mm |
| MPBD-3R-2041 | 4100 mm | 20 mm | 16 mm | 430 mm | 390 mm | 20 | 7200 mm | 2200 mm | 2200 mm |
| MPBD-3R-2541 | 4100 mm | 25 mm | 20 mm | 460 mm | 320 mm | 25 | 7300 mm | 2500 mm | 2350 mm |
| MPBD-3R-3041 | 4100 mm | 30 mm | 25 mm | 510 mm | 460 mm | 30 | 7500 mm | 2800 mm | 2500 mm |
Technical Data
| MODEL | EMT 2500 | EMT 1500 |
| Maximum Length of Block | 2500 MM (98.5'') | 1500 MM (59'') |
| Max.Distance Between Top of Bed To Boring Bar Center | 850 MM (33.5'') | 750 MM (29 1/2'') |
| Min.Distance Between Top of Bed and Boring Bar Center | 550 MM (215'') | 450 MM (17 3/4'') |
| Boring Capacity With Standard Equipments | 32 MM - 175 MM (1.25'' - 7'') | 32 MM - 140 MM (1 1/4 - 5.5'') |
| Boring Capacity With Optional Equipments | 24 MM - 225 MM (1''- 8.9'') | 24 MM - 225 MM (1'' - 8 3/4'') |
| Spindle Speed Infinitely Variable | 80 - 700 RPM | 80 - 700 RPM |
| Feed Both Directions Infinitely Variable | 0-50 MM / MIN. | 0 - 50 MM / MIN. |
| Max.Travel of Boring Bar | 450 MM (17 3/4'') | 450 MM (17 3/4'') |
| Drive Motor (A.C) | 1.5 KW / 2 HP | 1.5 KW / 2 HP. |
| Spindle Feed Motor (D.C) | 0.18 KW / 0.25 HP | 0.18 KW / 0.25 HP |
| Length of Machine | 4840 MM (190'') | 3840 MM (151'') |
| Width of the Machine | 750 MM (29 1/2'') | 750 MM (29.5'') |
| Height of Machine | 1850 MM (73'') | 1750 MM (69'') |
| Work Space Required (LxWxH) | 6000 MM X 1750 MM X 2000 MM | 5000 MM X 1750 MM X 1900 MM |
| (236'' X 69'' X 78.7'') | (197'' X 69'' X 75'') | |
| Net Weight (Approx) | 2250 KGS. | 1750 KG |
| Gross Weight (Approx) | 2750 KGS. | 2250 KGS |
| Shipping Volume | 2750 KGS. | 6 M3 |
| Packing Case Outer Size (LxWxH) | 5100 MM X 1000 MM X 1595 MM | 4100 MM X 1000 MM X 1495 MM |
| (200'' X 40'' X 62'') | (161'' X 40'' X 58.8'') |

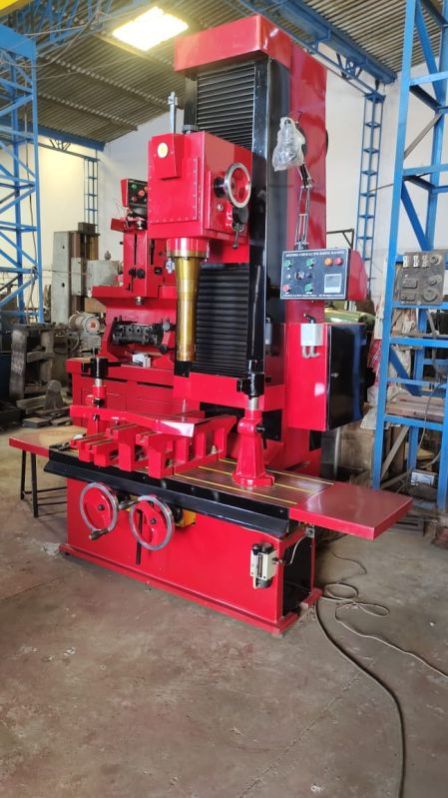

Technical Specification
| TECHNICAL SPECIFICATIONS | 600V | 450V |
|---|---|---|
| Bore center distance | 80 mm to 600 mm (3.1″ x 23.6″) | 80 mm to 450 mm (3.1″ x 17.7″) |
| Boring spindle speed 100 -1000 rpm | infinity variable 100 -1000 rpm | infinity variable |
| Boring range (0.6″- 7″) | 15 mm to 175 mm (0.6″-5.5″) | 15 mm to 140 mm |
| Bottom part traverse crosswise | 50 mm(1.97″) | 50 mm(1.97″) |
| Table movement longitudinal | 300 mm(11.8″) | 300 mm(11.8″) |
| A.C motor | 1.5 kw / 2 hp | 1.5 kw / 2 hp |
| D.C. Motor | 0.19 kw /0.25 hp | 0.19 kw/0.25 hp |
| Lenght of the machine | 1300 mm (51″) | 1300 mm(51″) |
| Width of the machine | 800 mm (31.5″) | 800 mm(31.5″) |
| Height of the machine | 1850 mm (73″) | 1700 mm(67″) |
| Work space required (L x W x H) | 1800 mm x 1100 mm x 2000 mm (71″ x 43″ x 79″) | 1800 mm x 1100 mm x 1850 mm (71″ x 43″ x 73″) |
| Net weight(approx) | 775 kgs | 725 kgs |
| Gross weight(approx) | 1100 kgs | 925 kgs |
| Shipping volume | 3 m3 | 3 m3 |
| Packing case outer size (L x W x H) | 1500 mm x 950 mm x 2055mm | 1500 mm x 950 mm x 1905 mm |
Machine description:This type paper cup machine advantages:High Performance, High Efficiency , High Quality
1.20GP container can loading 6 sets, 40HQ container can loading 12sets.Greatly reduce the transportation cost, is the ideal equipment for the production of small cup.
2.High production speed, making cup speed can be 70-100pcs/min, stable operation at 85pcs/min, cost-effective than similar products.
3. Aluminium disc indexing adopts open cam.

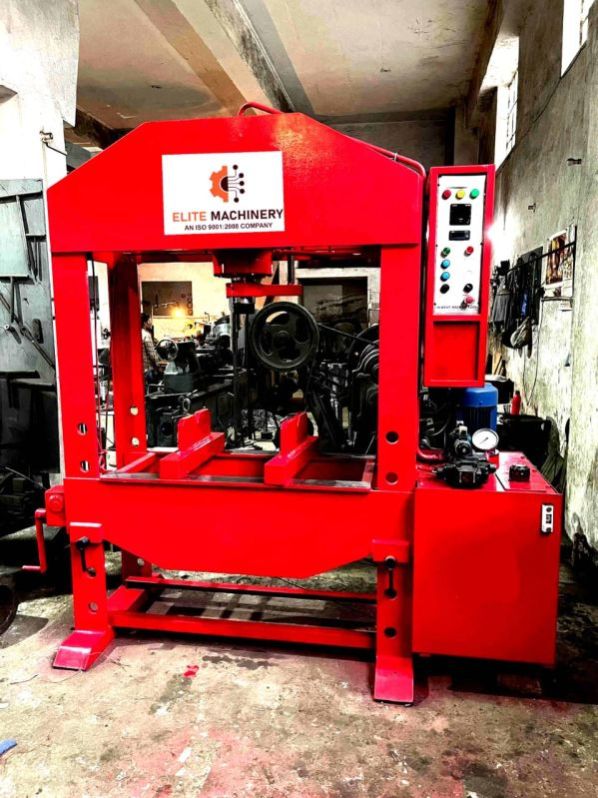

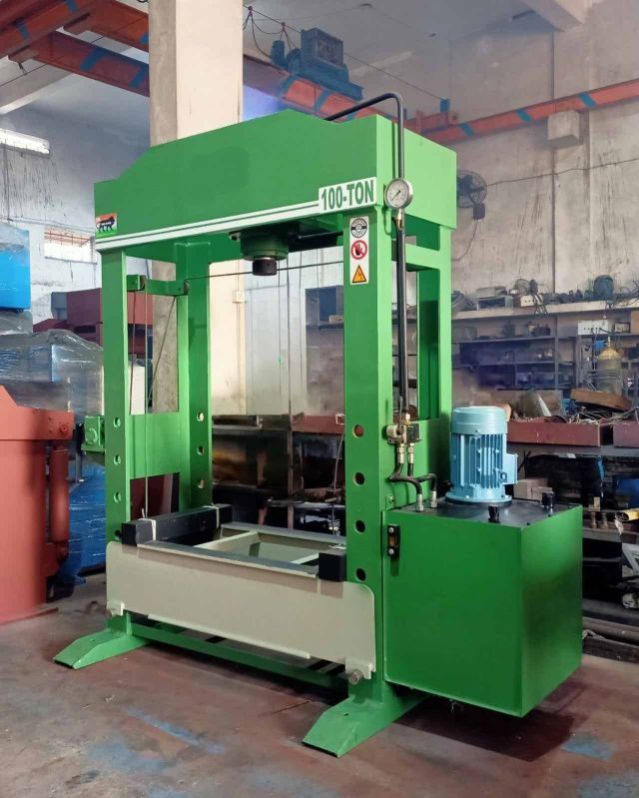

Technical Specification
| Tons | Between column Length x Width mm.mm. | Between Ram to Bed Min.Max. mm.mm. | Travel of Ram mm. | Motor Power H.P. |
|---|---|---|---|---|
| 15 | 650X150 | 75X600 | 150 | 3 |
| 20 | 700X225 | 150X750 | 150 | 3 |
| 25 | 850X300 | 180X910 | 180 | 5 |
| 40 | 950X350 | 180X910 | 190 | 5 |
| 50 | 1000X400 | 180X950 | 200 | 5 |
| 60 | 1050X450 | 180X975 | 200 | 5 |
| 75 | 1150X500 | 180X975 | 210 | 7.5 |
| 100 | 1200X600 | 180X975 | 225 | 7.5 |
| 150 | 1300X635 | 180X975 | 240 | 10 |
| 200 | 1325X650 | 180X975 | 240 | 10 |
| 250 | 1350X650 | 180X975 | 250 | 20 |
| 300 | 1395X660 | 180X975 | 265 | 20 |
| 500 | 1425X685 | 180X975 | 300 | 25 |
Technical Data
| MODEL | HSC 1 |
| Peeling mould | 6.8.10.13.16.19.22.25 |
| Cutter blade | 1 piece |
| Cutting tool | 2 |
| Power | 3KW |
| Voltage | 380V/220V |
| Dimension | 680mm*520mm*1040mm |
| Weight | 65kg |
| Maximum cutting size | 051mm |
Technical Specification

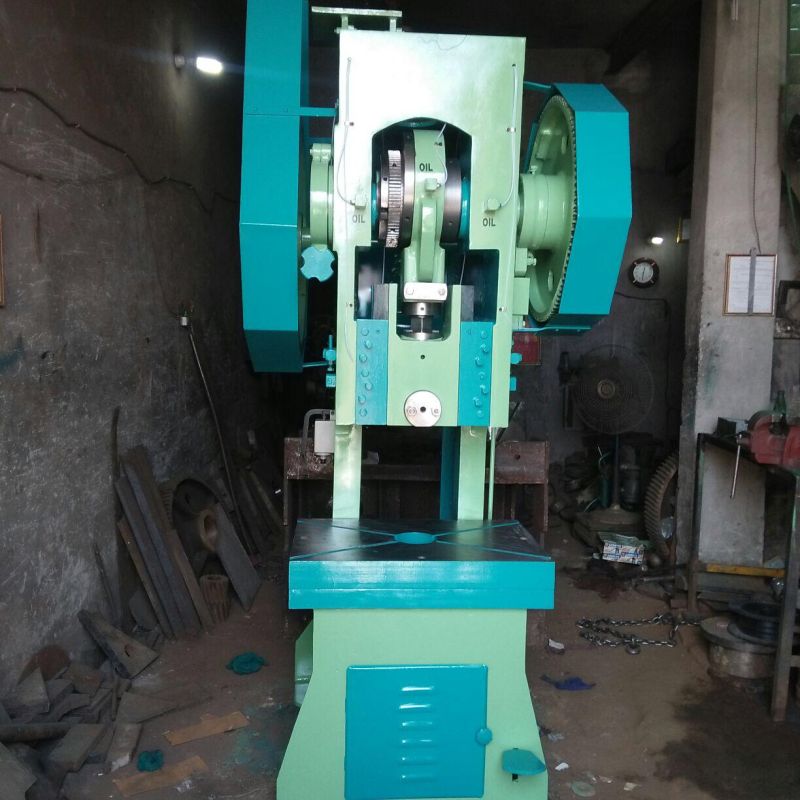

| Model Specifications |
Unit | 10 Tons | 20 Tons | 30 Tons | 50 Tons | 75 Tons | 100 To | 150 Tons |
|---|---|---|---|---|---|---|---|---|
| Dia of Crank Shaft | mm | 80 | 90 | 100 | 115 | 125 | 150 | 175 |
| Adjustability of Stroke | mm | 50 | 76 | 76 | 100 | 100 | 125 | 150 |
| Punch Bore in Ram | mm | 25 | 31 | 31 | 38 | 38 | 45 | 50 |
| Width of Bed | mm | 300 | 375 | 440 | 525 | 600 | 650 | 700 |
| Length of Bed | mm | 450 | 550 | 615 | 700 | 800 | 900 | 1000 |
| Gear Dia | mm | 450 | 525 | 600 | 650 | 890 | 960 | 1060 |
| Fly Wheel Dia | mm | 525 | 650 | 700 | 800 | 900 | 1000 | 1125 |
| Gap (Bed to Bottom ) | mm | 250 | 325 | 350 | 375 | 400 | 450 | 500 |
| Stroke per Minute | mm | 60 | 55 | 50 | 45 | 40 | 40 | 35 |
| H.P. Required (1440) | mm | 2 | 3 | 3 | 5 | 7.5 | 10 | 15 |
| Bore in Bed | mm | 110 | 125 | 140 | 160 | 190 | 220 | 250 |
| Weight in kgs (Approx) | mm | 900 | 1550 | 2050 | 2700 | 4000 | 5500 | 7800 |
Specifications
| Model | PWL-6 | PWL-8 |
|---|---|---|
| mm /inch | mm /inch | |
| Length of Bed | 1825/ 72" | 2435/96" |
| Width of bed | 215/8 1/2" | 215/8 1/2" |
| Height of centers | 203/8" | 203/8" |
| Admit between centers | 1220/ 48" | 1830/ 72" |
| Approx Spindle Speed -RPM | 700/1400/1800 | 700 /1400 /800 |
| Face plate diameter | 190/7 1/2" | 190/7 1/2" |
| Power Required HP/RPM | 1 1440 | 2 1440 |
| Approx. Wt. Of Machine- kg. | 300 | 350 |

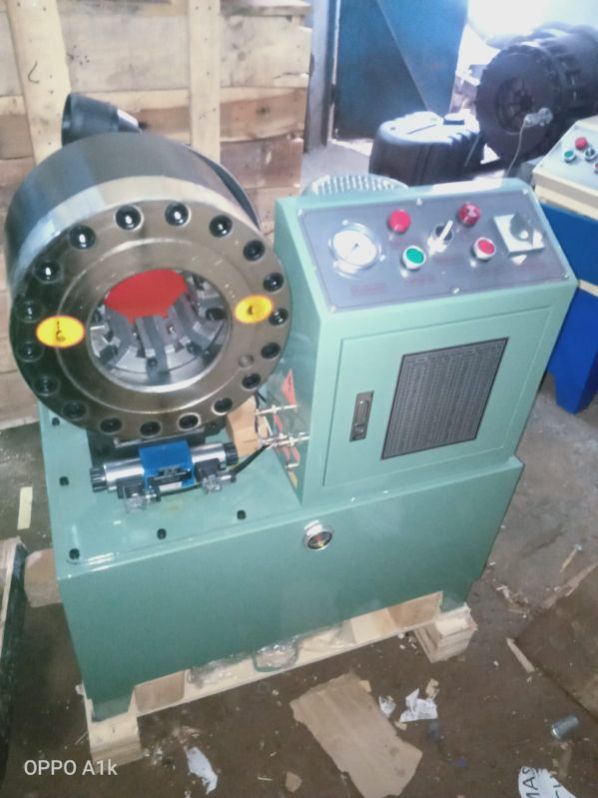

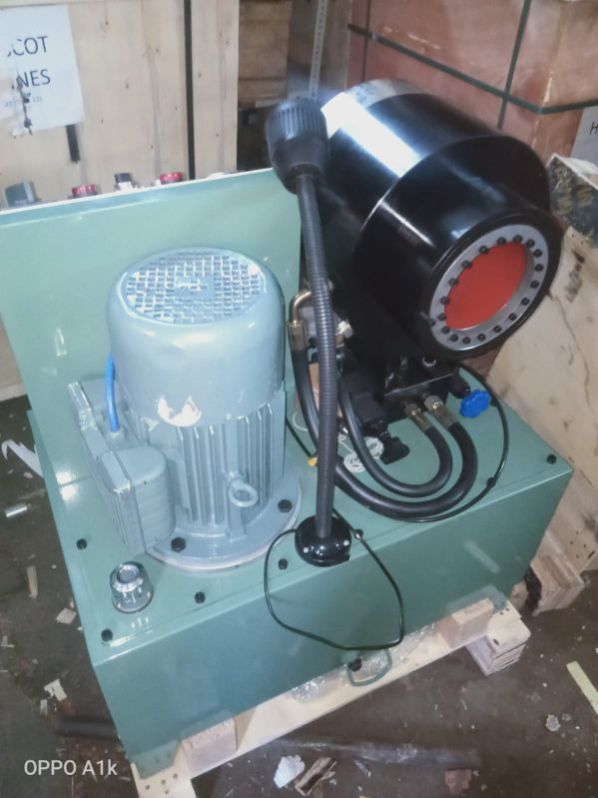

Technical Data
| Crimping Capacity of 2 wire hose | 2 inches |
| Crimping Capacity of 4 wire hose | 1 inches |
| Opening at Front side | 155 mm |
| Maximum inside opening without dies | 115 mm |
| Opening at Rear end | 130 mm |
| Maximum working pressure | 315 Bar |
| Kilowatt of motor | 3.75 KW, 5 HP |
| Voltage | 220V/415 V |
| Capacity of oil tank | 50 Litres |
| Number of dies | 10 |
| Sizes of dies | 15, 19, 23, 26, 30, 34, 38, 45, 52, 62 |
| Noise level | <75db |
| Weight of the machine | 250 Kg |
| Dimensions of machine (L X B X H) | 665 x 525 x 800 mm |
| Dimensions of Export packing (wooden box) | 720 x 575 X 870 mm |

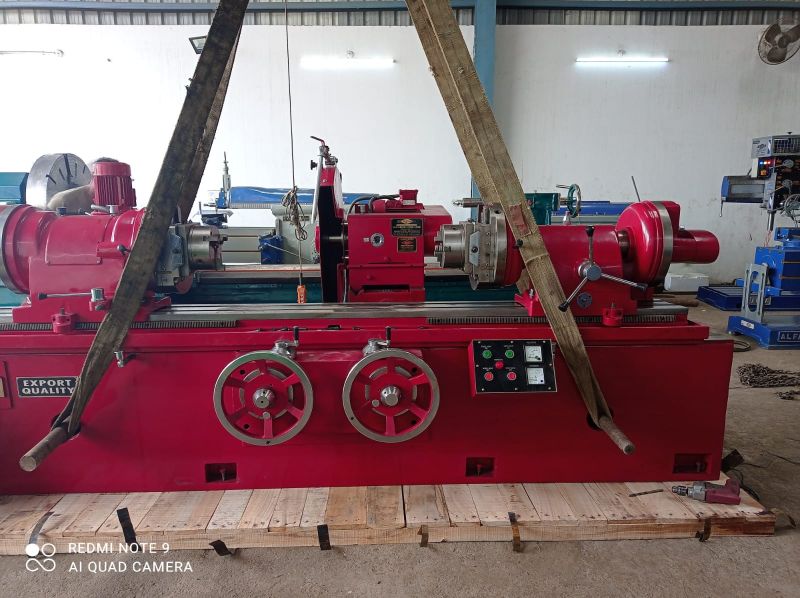

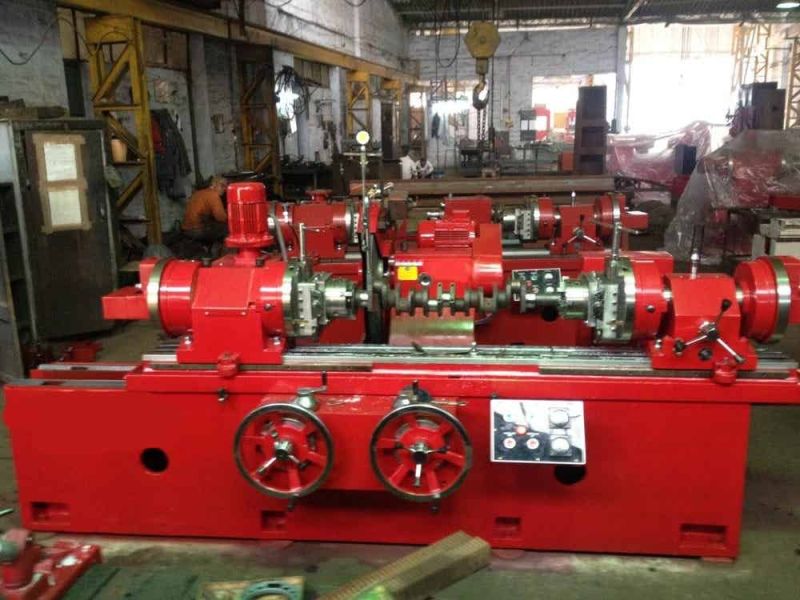

Technical Specification
| Size in inches | 48” | 60” | 72” | 84” | 90” | 104’’ | 120’’ |
|---|---|---|---|---|---|---|---|
| Max. distance between centres | 1200mm | 1500mm | 1800mm | 2100mm | 2250mm | 2600mm | 3000mm |
| Max. distance between chucks | 1100mm | 1400mm | 1700mm | 2000mm | 2150mm | 2500mm | 2900mm |
| Max. weight of crankshaft | 60kg | 80kg | 100kg | 125kg | 150kg | 200kg | 300kg |
| Swing over table | 400mm | 500mm | 500mm | 650mm | 650mm | 650mm | 650mm |
| Max. stroke | 175mm | 225mm | 225mm | 280mm | 280mm | 280mm | 280mm |
| Work head spindle speeds | 27-41-61rpm | 27-41-61rpm | 27-41-61rpm | 27-41-61rpm | 27-41-61rpm | 18-27-41rpm | 18-27-41rpm |
| Grinding wheel speed | 950rpm | 950rpm | 950rpm | 750rpm | 750rpm | 750 mm | 725rpm |
| Grinding space reqd | 4500x2500mm | 5400x2800mm | 6000x2800mm | 6500x3250mm | 7150x3250mm | 7500x3250mm | 9000x2400mm |
| Net/Gross weight | 3000/3800kg | 4000/5000 kg | 4200/5200kg | 5000/6300kg | 5100/6500kg | 5500/7000kg | 7000/8500kg |

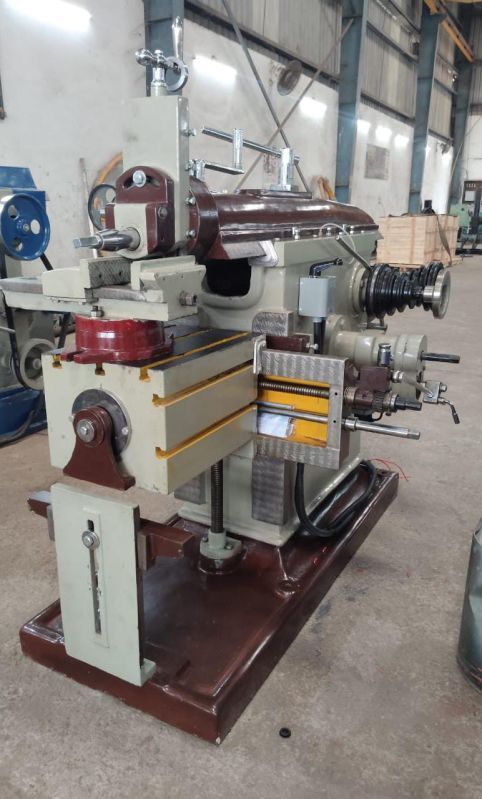

Technical Specification
| Maximum Working Stroke | 14'' | 20'' | 26'' | 32'' | 38'' | 42'' |
|---|---|---|---|---|---|---|
| Length of ram without tool slide | 30'' | 40'' | 53'' | 60'' | 66'' | 75'' |
| Ram bearing in Column | 20'' | 26'' | 31'' | 37'' | 41'' | 44'' |
| Ram bearing width | 7.5'' | 10.5'' | 12'' | 12.5'' | 12.5'' | 14'' |
| Tool Slide Traverse | 5'' | 6'' | 8'' | 9'' | 10'' | 11'' |
| Maximum distance from table to ram | 14'' | 15'' | 16'' | 18'' | 20'' | 24'' |
| Maximum distance from table to ram | 2'' | 2'' | 2'' | 2'' | 2'' | 3'' |
| Horizontal traverse of the table | 16'' | 20'' | 26'' | 30'' | 32'' | 36'' |
| No of speed | 3 | 3 | 4 | 4 | 4 | 4 |
| Length and width of cross slide | 25''*10.5'' | 31''*11'' | 38''*12'' | 43''*12.5'' | 46''*12.5'' | 51''*15'' |
| Top clamping surface of table | 14''*11'' | 18.5''*12'' | 25''*15 | 31''*16'' | 37''*18.5'' | 40''*20.5'' |
| Size of base plate | 40''*16.5'' | 50''*22'' | 64''*23'' | 76''*24'' | 82''*26'' | 90''*30'' |
| Power required | 1 H.P. | 2 H.P. | 3 H.P. | 5 H.P. | 5 H.P. | 7.5 H.P. |
| Approximate net weight | 800 kg. | 1200 kg. | 1800 kg. | 2300 kg. | 3200 kg. | 4000 kg. |
Technical Specification
| Technical Specification | MODEL NO | |||
| EMT 25MM | EMT 32MM | EMT 40MM | EMT 50MM | |
| DRILLING CAPACITY IN STEEL | 25 MM | 32 MM | 40 MM | 50 MM |
| DRILLING CAPACITY IN CASTING | 30 MM | 35 MM | 45 MM | 55 MM |
| TAPPING CAPACITY IN CASTING | 20 MM | 25 MM | 25 MM | 30 MM |
| MAXIMUM DISTANCE FROM SPINDLE TO COLUMN | 24" | 32" | 36" | 48” |
| MINIMUM DISTANCE FROM SPINDLE TO COLUMN | 10" | 12" | 12" | 18" |
| MAXIMUM DISTANCE FROM SPINDLE TO BASE PLATE | 30" | 34" | 40" | 50" |
| DIAMETER OF COLUMN | 5.1/2” | 7” | 9” | 10” |
| NO. OF SPINDLE SPEEDS | 4+4=8 | 3+3=6 | 3+3=6 | 3+3=6 |
| RANGE OF SPINDLE SPEEDS | 80-700 RPM | 80-700 RPM | 50-760 RPFM | 40-750RPM |
| WORKING SURFACE OF BASE PLATE | 9” | 11” | 12” | 15” |
| TRAVEL OF SPINDLE | 6” | 8” | 9” | 12” |
| SPINDLE MORSE TAPER NO. | 3 | 4 | 4 | 5 |
| VERTICAL ADJUSTMENT OF ARM | 15" | 18" | 2" | 24" |
| OVER ALL HEIGHT | 60" | 70" | 80" | 90" |
| ARM TILT ANY ANGLE UPTO | 90" | 90" | 90" | 90" |
| FLOOR SPACE REQUIRED | 36" * 21" | 44" * 25" | 55" * 30" | 61" * 32" |
| ELETRICALS MOTOR REQUIRED | 1 H.P. | 2 H.P. | 3HP. | 5H.P. |
Technical Specification

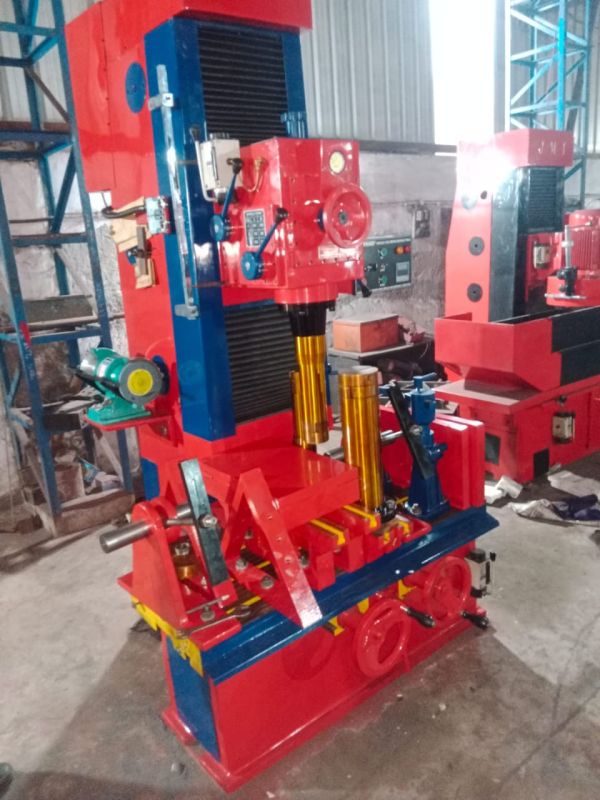

| TECHNICAL SPECIFICATIONS | 2500 | 2200 | 1500V | 1500V | 1200V | 1200V |
|---|---|---|---|---|---|---|
| Boring capacity | 62 – 265 mm | 62 – 265 mm | 48 – 220 mm | 48 – 220 mm | 62 – 135 mm | 62 – 135 mm |
| Boring capacity with extra spindle | 38 -350 mm | 38 – 310 mm | 38 – 310 mm | 38 – 190 mm | 38 – 190 mm | |
| Milling length | 2300 mm | 1800 mm | 1350 mm | 1250 mm | ||
| Milling width | 400 mm | 400 mm | 350 mm | 350 mm | ||
| Maximum boring head travel | 850 mm | 850 mm | 700 mm | 700 mm | 600 mm | 600 mm |
| Maximum distance head to table | 1500 mm | 1500 mm | 1340 mm | 1340 mm | 1300mm | 1300mm |
| Maximum distance between outer cylinder center |
2500 mm | 1800 mm | 1200 mm | 1200 mm | 900 mm | 900 mm |
| Max work piece on table | 2500 kg | 1000 kg | 1000 kg | 750 kg | 750 kg | |
| Spindle speed motor | 2.2 kw/3 hp | 2.2 kw / 3 hp | 1.5 kw / 2 hp | 1.5 kw / 2 hp | 1.5kw / 2hp | 1.5kw / 2hp |
| Motor rapid & feed | 4kw servo motor | 0.37 kw / 0.5 hp | 0.37 kw / 0.5 hp | 0.37 kw / 0.5hp | 0.37 kw / 0.5hp | |
| Motor table traverse longitudinal | 0.37 kw / 0.5hp | 0.37 kw / 0.5 hp | 0.37 kw / 0.5hp | |||
| Spindle speeds | 50 to 750 rpm | 50 to 750 rpm | 50 to 750 rpm | 50 to 750 rpm | 50 to 750 rpm | 50 to 750 rpm |
| Spindle feeds | 10 to 100 mm/min | 12 – 100 mm / min | 12 – 100 mm / min | 12 – 100mm / min | 12 – 100mm / min | |
| Maximum distance from spindle centre to column |
500 mm | 500 mm | 410 mm | 410 mm | 360 mm (14.17″) | 360 mm |
| Working table size (l x w) | 2500 mm x 600 mm | 2200 mm x 600 mm | 1500 x 450 mm | 1500 x 450 mm | 1200 x 360mm | 1200 x 360mm |
| Table traverse – longitudinal | 2700 mm | 2050 mm | 1850 mm | 1350 mm | 1300mm | 850 mm |
| Table traverse – cross wise | 150 mm | 150 mm | 120 mm | 120 mm | 75 mm | 75 mm |
| Length of the machine | 3300 mm | 3300 mm | 2800 mm | 2500 mm | 2200mm | 1900 mm |
| Width of the machine | 1800 mm | 1800 mm | 1440 mm | 1420 mm | 1300 mm | 1300 mm |
| Height of the machine | 3050 mm | 3050 mm | 2525 mm | 2525 mm | 2440 mm | 2440 mm |
| Work space required ( l x w) | 4500 x 1850 mm | 4400 x 1850 mm | 4050 x 1520 mm | 4050 x 1520 mm | 2880 x 1400 mm | 2800 x 1700 mm |
| Net weight | 5000 kgs | 4800 kgs | 3500 kgs | 3000 kgs | 2650 kgs | 2500 kgs |
| Gross weight | 60000 kgs | 5800 kgs | 4000 kgs | 3500 kgs | 3300 kgs | 3200 kgs |
| Shipping volume | 15 m3 | 15 m3 | 9.5 m3 | 9 m3 | 9 m3 | 7 m3 |
Technical Specification
| Alloy Steel Work Spindle Hardened & Ground Diameter | 80 | 100 | 110 | 125 |
|---|---|---|---|---|
| Morse Taper Number | 5 | 6 | 6 | 6 |
| Max. Longitudinal Movement of working Spindle(Z-Axis) | 510 | 510 | 510 | 600 |
| No. of Spindle Speeds | 9 | 9 | 9 | 9 |
| Range of Spindle Speeds-R.P.M | 20to300 | 15to250 | 15to250 | 15to250 |
| Longitudinal Work Spindle Feeds Nos. | 9 | 9 | 9 | 9 |
| Max. Height of Spindle Axis from Table Surface(Y- Axis) | 925 | 1000 | 1100 | 1250 |
| Min. Height of the Spindle Axis from Table Surface | 25 | 35 | 35 | 35 |
| Dimensions of the rotary table | 900*1105 | 1030*1375 | 1100*1450 | 1225*1675 |
| Longitudinal Table Traverse(W-Axis) | 1625 | 1775 | 1925 | 2050 |
| Long Table Travel Feeds(including one rapid) | 10 | 10 | 10 | 15 |
| Transversal Table Travel Feeds | 10 | 10 | 10 | 15 |
| Vertical Head Stoke Travel feeds | 4 | 4 | 4 | 15 |
| Rotary Table Automatic feeds | 10 | 10 | 10 | 15 |
| Max. Cross Movement of the table(X-Axis) | 1000 | 1100 | 1300 | 1550 |
| Max. Distance b/w Stay Bearing & Facing Head | 2400 | 2690 | 2800 | 2950 |
| Facing Head Diameter | 505 | 555 | 600 | 650 |
| Weight Approx in Kgs.(without packing & accessories | 8500 | 10000 | 11000 | 16500 |
Technical Specification
| Model Specifications |
Unit | 30 Tons | 50 Tons | 75 Tons | 100 Tons | 150 Tons | 200 Tons | 250 Tons |
|---|---|---|---|---|---|---|---|---|
| Dia of Crank Shaft | mm | 100 | 115 | 125 | 150 | 175 | 200 | 225 |
| Adjustability of Stroke | mm | 76 | 100 | 100 | 125 | 150 | 150 | 150 |
| Punch Bore in Ram | mm | 31 | 38 | 38 | 45 | 50 | 50 | 57 |
| Width of Bed | mm | 450 | 500 | 600 | 700 | 750 | 800 | 900 |
| Length of Bed | mm | 450 | 500 | 600 | 700 | 750 | 800 | 900 |
| Gear Dia | mm | 600 | 650 | 890 | 960 | 1060 | 1125 | 1200 |
| Fly Wheel Dia | mm | 700 | 800 | 900 | 1000 | 1125 | 1200 | 1275 |
| Gap (Bed to Bottom ) | mm | 350 | 375 | 400 | 450 | 500 | 550 | 600 |
| Stroke per Minute | mm | 60 | 45 | 40 | 40 | 35 | 35 | 35 |
| H.P. Required (1440) | mm | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 |
| Bore in Bed | mm | 140 | 160 | 190 | 220 | 250 | 275 | 290 |
| Weight in kgs (Approx) | mm | 1550 | 2050 | 3300 | 4600 | 6000 | 8400 | 10000 |
Technical Data
| TONNAGE | EMT-65 Ton | EMT-85 Ton | EMT-115 Ton | EMT-155 Ton |
| Maximum Capacity | 26 X 26mm | 30 x 20mm | 35 x 25mm | 30 x 30mm |
| Diameter x Thickness | 32 X 12mm | 38 x 15mm | 40 x 20mm | 44 x 20mm |
| Stroke | 70mm | 80mm | 80mm | 100mm |
| No.of Strokes (per/min) | Sep-27 | Sep-36 | Jun-30 | Jul-28 |
| Throat Depth | 240mm | 355mm | 400mm | 450mm |
| Round | 30mm | 50mm | 56mm | 80mm |
| Square | 30 x 30mm | 50 * 50mm | 56 * 56mm | 80 * 80mm |
| Angel Section(90 Degree) | 120 x 120 x 12mm | 160 x 160 x 15mm | 180 x 180 x 14mm | 200 x 200 x18mm |
| Angel Section(45 Degree) | 80 x 80 x 8mm | 80 x 80 x 10mm | 80 x 80 x 10mm | 100 x 100 x 10mm |
| Length xThickness | 230 x 20mm | 330 x 20mm | 355 x 25mm | 300 x 30mm |
| Max. Length x Thickness | 375 x 10mm | 480 x 10mm | 600 x 15mm | 750 x8mm |
| Blade Length | 400mm | 482mm | 610mm | 760mm |
| Shearing With Angle | 100 x 15mm | 120 x 15mm | 120 x 15mm | 120 x 15mm |
| Thickness | 10mm | 13mm | 13mm | 16mm |
| Width | 45mm | 50mm | 60mm | 60mm |
| Length | 90mm | 100mm | 100mm | 100mm |
| Length x Thickness | 500 x 5mm | 500 x 3mm | 700 x 3mm | 700 x 4mm |
| Length x Thickness | 120 x 58mm | 160 x 74mm | 200 x 90mm | 240 x 105mm |
| 90 x 11mm | 100 x 11mm | 120 x 13mm | 150 x 15mm | |
| 4kw | 5.5kw | 7.5kw | 11kw | |
| 1600kg | 2400kg | 3100kg | 5800kg | |
| (L x W x H) | 1700 x 900 x 1670 | 1930 x 900 x 1830 | 2240 x 850 x 1960 | 2700 x 1020 x 2116 |
Miss. Tania Verma , Mr. Rohit Verma (ELITE Machine Tools)
#13 Rajindra Market, Gt Road, Batala, Punjab - 143505
https://www.elitemachinetools.in
Share us via
View Contact Number
