Excel Engineering

Gondal, Rajkot, Gujarat

• Brand NameExcel

Type: EK-1 Range: up to 7.5HP | 3 phase 50Hz We manufacture Direct-On-line starters using quality raw materials and hi-tech machinery. Our range or DOL motor starters are developed in compliance with technological advances and customer requirements. These are the most reliable and most used motor starter in industrial and agricultural applications. Salient Features: Type EK-1 DOL starter consists of EK-1 contactor and EK-1 thermal over load relay. Guaranteed performance because of these starters are manufactured and tested under strict quality managed cycle. Starter with double break bounce free contact gives long life and trouble free operation. Silver tips of contacts are made of advance powder metallurgy process gives robustness and long life. Wide range of coil operating voltage range is available. Remotely On-Off controllable. The enclosure is made of high quality sheet steel and its special design and powder coating makes starter more robust against adverse climatic conditions. Earthling screws are provided to save user from electric shock. Benefits: Accurate operation and protection. Corrosion resistance and long life. Rugged construction and accurate operation. On-Off indicating window on starter. Customer care support available. Applications: Power press Air compressors Blower fans Ventilators Wood cutting machines Submersible pumps Sludge pumps Thresher motors Centrifugal pumps.

Type: EK-1 Range: up to Up to 15HP We are proud to introduce Indias first Digitally controlled Fully automatic Star Delta Starter. In fully automatic star delta starter motor first starts in Star connection when Green button is pressed and then after some time connection is converted in Delta, this conversion is automatically done by Digital Timer incorporated inside starter. Salient Features: Star Delta Starter consists of 3 EK-1 contactors, 1 thermal overload relay and 1 Star Delta timer. Most advanced digital timer for start to delta conversion, which comes with Back to back contactor protection. Guaranteed performance because of these starters are manufactured and tested under strict quality managed cycle. Starter with double break bounce free contact gives long life and trouble free operation. This will save your motor from damage done by power problems. Silver tips of contacts are made of advance powder metallurgy process gives robustness and long life. Wide range of coil operating voltage range is available. The enclosure is made of high quality sheet steel and its special design and powder coating makes starter more robust against adverse climatic conditions. Earthling screws are provided to save user from electric shock. Benefits: Advanced electronic timer for Star to Delta conversion minimizes jerk of motor. Two auxiliary blocks for contactors are not required, which saves money of customer. Remotely On-Off controllable. Rugged construction and accurate operation. On-Off indicating window on starter. Customer care support available. Applications: Power press Air compressors Blower fans Ventilators Wood cutting machines Submersible pumps Sludge pumps Thresher motors Centrifugal pumps.

• Brand NameExcel

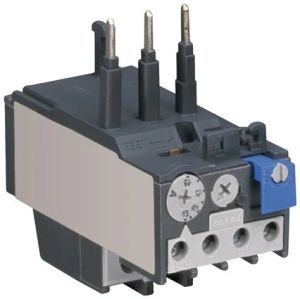

We bring a range of thermal overload relays which are made from hi-grade raw materials. These relays are highly demanded in various industries. Thermal overload relay is most important component because it protects our motors form overload generated by supply fluctuation, heavy mechanical load, high current caused by excess winding temperature. Salient features: type ek-1 thermal overload relay is 3 pole hand reset type. Relay range setting can be adjusted by a sliding pointer. whole relay is housed in hi-grade bakelite housing. relays are accurately calibrated and tested before dispatch. ambient temperature for satisfactory operation or relay is 0 0c to 55 0c. this relay is suitable for direct mounting on ek-1 contactor. extended push button switches are provided for regular start and stop operation. relay covers full range currents from 4a to 21a. ek-1 relay is manual reset type. benefits: accurate tripping in overload conditions. corrosion resistance. easy installation. best performance in adverse conditions.

• Brand NameExcel

We are offering star delta timer. Type: sdt2 range: 0 � 30 seconds. star delta timer is an advanced microcontroller based timer which is incorporated in side starter to control operation of star to delta conversion. Most advanced digital timer for start to delta conversion, which comes with back to back contactor protection. It means during starter operation in delta connection due to any reason if anyone contactor turns off will also turn off other contactor immediately. This will protect costly motors from hazards. Specifications: model star delta timer sdt2 dimension 55 x 96 x x97 mm time setting up - down front key pad display 2 digit 7- segment time setting range 0 - 30 seconds output contacts 3 co relay contact material silver alloy operating voltage 200v to 440v ac.

• Brand NameExcel

the contactor makes and breaks electric connection in motor starter and subjected to maximum wear. our contactors are praised for high endurance and durability. this contactor has proven design and it is most used contactor in up to 15hp motor starters. salient features: type ek-1 is 4 pole contactor. trouble free and noise free design. hi grade sheet metal and fire proof backlit body. varnish impregnated low power consuming coil. contact system is made of high grade copper alloy materials for optimum performance and life. contact tips are made of advanced silver alloys for millions of start and stop operation. magnetic cores have very low loss and mounted on rubber grummets to reduce hum. coils are available with wide operating voltage range suitable for agricultural and industrial usages. spare kits of main and auxiliary contacts are easily available at nominal price. benefits: thick silver tipped contacts. trouble free operation over wide voltage ranges. only copper alloy electric parts are used for flawless performance. robust contact system and long life.
