Hot Chamber Die Casting Machine Extractor And Sprayer

1.Adopt panasonic servo motor for extractor arm straight forward and backward;the performance is fast;stable and precise

2.Extractor could be used with different tonnage machine and the adjustment is fast and flexible

3.Special weight detection device could avoid mould impact

4.Extractor arm could rotate 90 degrees, which is convenient formould replacement and maintenance.

5.Independent control system with stable performance and convenient operation.

Die Casting Machine Automatic Extractor

(1)Adopt good quality components with low failure rate and long service life.

(2)Multi linkage arm has strong loading capacity;working fast and stable without impact.

(3)Driven by motor, controlled by frequency converter and PLC;arm has stand-by function, which could improve working efficiency.

(4)Adopt Mitsubishi PLC and Delta touch screen with stable performance;could supervise every movement, which is convenient for operation and maintenance.

(5)The system is equipped with self diagnosing and failure alarm function for easy removal problems.

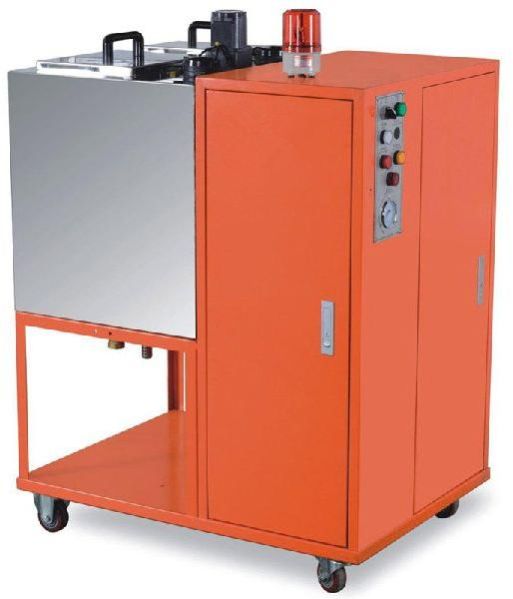

Die Casting Machine Release Agent Mixer

(1)Dilution ratio can be adjusted from 40 times to 200 times, easy and convenient to operate;

(2)Adopt good quality components with low defect rate and long service life.

(3)Production and conveyance are automated the dilution ratio and examinations on liquid level are fairly precise

(4)it will not create sedimentation, guaranteeing the purity of products.

Die Casting Machine Shot Beads Dispenser

1.No oil mark on the casting, making the casting clean and shinny.

2.Installation and operation is easy, the feeding volume could be adjusted

3.Prolong injection sleeve and plunger service life and improve workshop environment.

4.Lubrication frequency could be adjusted according to injection times

5.Could be used with different tonnage die casting machine.

die casting machine servo sprayer

(1)driven by rv reduction gear with high machanical strength, stability and long service life.

(2)could stop at any y axes position for spraying and blowing

(3)y axes driven by servo motor;could start and stop quickly, stably and precisely

(4)module sprayer with good atomization effect

(5)adopt mitsubishi plc and delta touch screen with stable performance;could supervise every movement, which is convenient for operation and maintenance.

(6) the system is equipped with self diagnosing and failure alarm function for easy removal problems.

die casting machine automatic sprayer

(1)sprayer has rotation function for option, which is convenient for mould replacement and avoid copper tube blockage by the spattered material.

(2)spray and blow time for the fixed and moveable platen could be adjusted independently, which could save release agent and improve product quality.

(3)sprayer has blowing function when ascending, which could clean mould surface.

(4)adopt mitsubishi plc and delta touch screen with stable performance;could supervise every movement, which is convenient for operation and maintenance.

(5)the system is equipped with self diagnosing and failure alarm function for easy removal problems.

Die Casting Machine Automatic Ladling Machine Technological Date

(1)With five-point-linkage structure and taiwan made reductor, which could ensure high stability

(2)The rotating part adopt self lubricating bearing to ensure stable performance.

(3)Ladle arm forward, backward, pouring, ladling are controlled seperately by frequency converter, easy to operate

(4)Pouring capacity controlled by KOYO encoder, which is easy and convenient for operation.

(5)Adopt Mitsubishi PLC and Delta touch screen with stable performance;could supervise every movement, which is convenient for operation and maintenance.

(6)The system is equipped with self diagnosing and failure alarm function for easy removal problems.
