Our Products

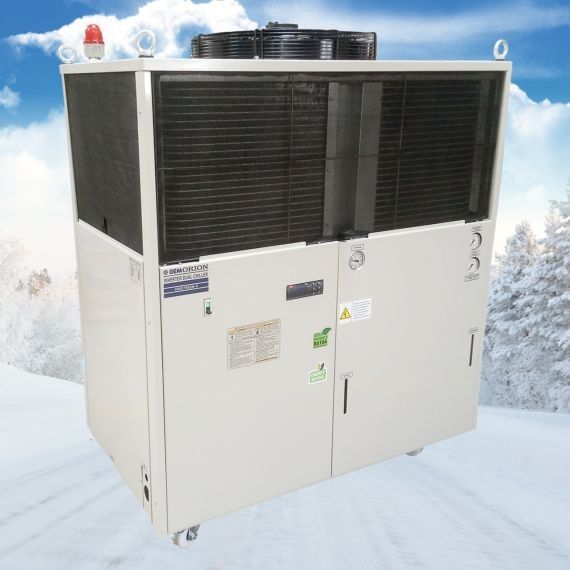

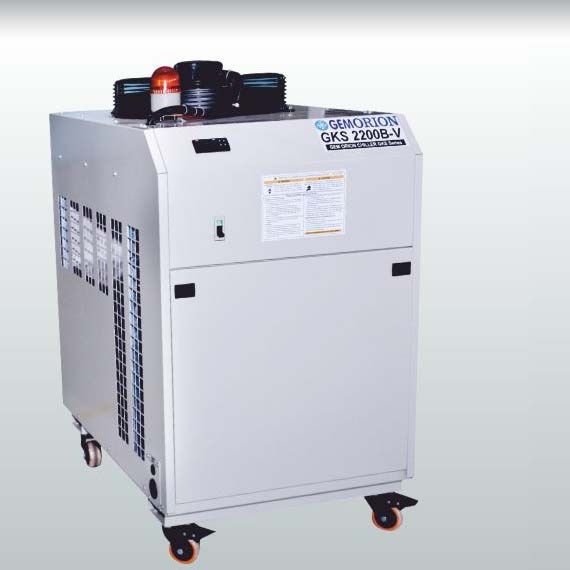

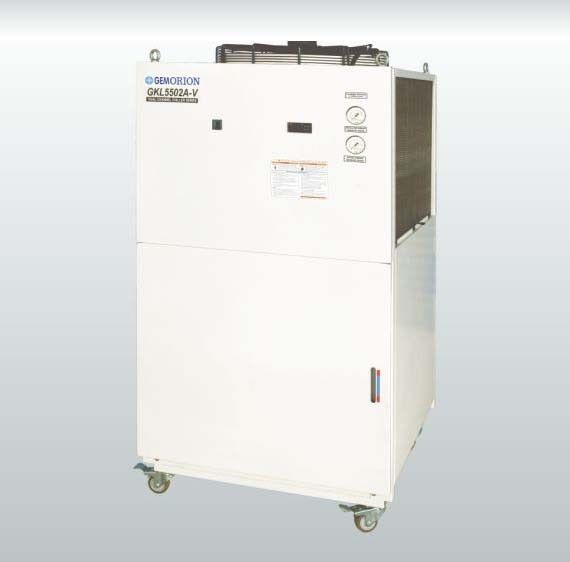

Leading Manufacturer, Supplier & Retailer of Inverter Chillers, Light Duty Precision Inverter Chillers, Dual Channel Inverter Chiller, Heavy Duty Precision Inverter Chillers and Coolant Inverter Chillers.
| ITEM | Units | GKE 2200A-V | GKE 3750A-V | GKE 5500A-V | GKE 7500A-V | GKE 11000A-V | GKE 15000A-V | GKE 18000A-V | GKE 22000A-V | GKE 30000A-V | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling Capacity *1 | kW | 8.7 | 12 | 20 | 25 | 35 | 45 | 57 | 70 | 90 | |
| External Dimensions (H x D x w) | mm | 1485x905x805 | 1684x905x805 | 1825x988x885 | 1646x800x1340 | 2020x919x1600 | 2124x924x1603 | 2320x1180x2200 | |||
| Unit Mass (dry weight)(when tank empty) | kg | Approx. 200 | Approx. 240 | Approx. 260 | Approx. 320 | Approx. 475 | Approx. 480 | Approx. 560 | Approx. 1050 | Approx. 1420 | |
| Operable Ambient Temp. Range | °C | 5 to 50 | |||||||||
| Operable Liquid Temp. Range | °C | 10 to 30 | |||||||||
| Control Precision *4 | ±0.5°C (±0.1°C Possible @ Stable Load Condition) | ||||||||||
| Operating Water Pressure | MPa | 0.25 ~ 0.50 | 0.25 ~ 0.50 | 0.35 ~ 0.55 | 0.35 ~ 0.55 | 0.5 ~ 0.7 | |||||
| Operating Flow Rate | L/min | 30 ~ 70 | 30 ~ 70 | 24 ~ 110 | 160 ~ 250 | 180 ~ 350 | |||||
| Inlet and Outlet Port Size | BSP1" | BSP1 1/4" | BSP2" | ||||||||
| Power Source *2 | V(Hz) | 3 Phase.400V ± 5% (50Hz) | |||||||||
| Power Connected *1 | kW | 3.8 | 5.6 | 8 | 9.5 | 16.4 | 19.7 | 25.2 | 30.64 | 37.9 | |
| Maximum Current *1 | A | 6.5 | 9.3 | 13.2 | 15.5 | 28.5 | 34.0 | 42.02 | 53.9 | 64.8 | |
| Power Capacity *3 | kVA | 4.5 | 6.4 | 9.1 | 10.7 | 19.8 | 20.80 | 29.11 | 37.35 | 44.9 | |
| Compressor | Inverter Driven Scroll type | ||||||||||
| Condenser | Finned tube type, Forced air cooling | ||||||||||
| Operation Control Method | Inverter Drive | ||||||||||
| Evaporator | Construction / Material | Plate type/SUS316(with copper brazing) | |||||||||
| Discharge Pump | Construction / Material | Multistage centrifugal pump(SS Body, SS Impeller, Cl end connection) | |||||||||
| water Tank Capacity | L | Approx. 44 | Approx. 95 | Approx. 115 | Approx. 140 | Approx. 220 | Approx. 320 | ||||
| Refrigerant | R - 410A | ||||||||||
