Our Products

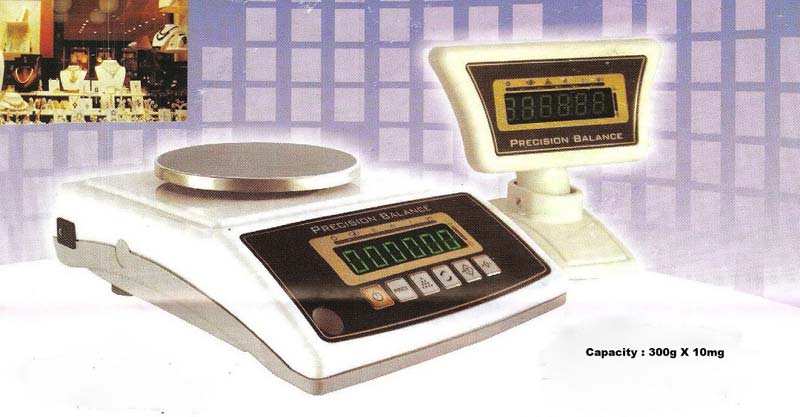

Electronic Digital Balance

Electronic Digital Balance
"MICRON" Electronic Digital Table Top Balance Accuracy class - II Capacity: 100g to 3200g with Legal Metrology Dept of Gujarat State Stamping & verification certificate
View Complete Details
Ask Latest Price & Details
Table Top Scales

Table Top Scales
"MICRON" Electronic Digital Table Top Balance Accuracy class - II & III Capacity: 100g to 30kg with Legal Metrology Dept of Gujarat State Stamping & verification certificate
View Complete Details
Ask Latest Price & Details
Weighing Scale

Weighing Scale
As per the demand of this developing and growing sector, Global Impex Corporation offers you an improbable range of industrial Weighing Scale, digital weighing scales at one place only. We are a pioneer weighing scale manufacturer of India. Here, we explore new ideas for manufacturing optimal quality, highly durable, accurate, industrial weighing scale, digital weighing scales etc. which are easy to operate. Digital weighing scales are available with wonderful visibility of numbers, portable specially one man handed and saves your work force at unmatched prices. Our weighing scale is highly used in every types of business for the accurate measurement.

Performance Specification

Standard Capacities20, 30, 50, 75, 100, 150, 200,250,300, 500, 750Kg1,1.5,2, 2.5,3, 5, 7.5, 10, 15, 20Ton
Excitation Voltage10 VDC- Maximum 15 VDC
Nominal Output3.0 m V/ V
Non Linearity< ± 0.025% FSO
Hysteresis< ±0.02% FSO
Non-Repeatability< ±0.01% FSO
Creep (30 minutes)< ±0.03% FSO
Zero Balance< ±1.0% FSO
Input Resistance392 ± 15 Ohms
Output Resistance350 ± 3 Ohms
Insulation Resistance (50 VDC)> 1000 Mega Ohms
Cable Length (4 Core Screened)5 mtr. Minimum
Safe Overload of Rated Capacity150%
Ultimate Overload of Rated Capacity250%
Allowable Side Load 50%
Temp. Compensated Range0-60 C
Temperature Effect on Output< 0.0015% FSO/ 0 C
Temperature Effect on Zero< 0.0020% FSO/ 0 C
Deflection< 0.4 mm at FSO
Tightening TorqueSee Table Below
Finish & ConstructionElectroless Nickel Plated Tool Steel
Environmental Protection ClassIP68
View Complete Details
Ask Latest Price & Details
Platform Scale

Platform Scale
"MICRON" Electronic Digital Platform Scale Accuracy class - III Capacity: 50kg to 2000kg with Legal Metrology Dept of Gujarat State Stamping & verification certificate
View Complete Details
Ask Latest Price & Details
Measuring Instruments

Measuring Instruments
We are one of the renowned Measuring Instrument Exporters, originated in India. Our prestigious clients will glad to know that a gigantic range of electronic measuring instruments and measurement instruments is available at one door named as Global Impex Corporation. We have a team of target oriented professionals that has valuable experience in the field of electronic measuring instruments and measurement instruments. Our measurement instruments are widely used in various esteemed schools, colleges and universities. In addition, our measurement instruments are also used in various researches and development works. We provide electronic measuring instruments and measurement instruments at the most competitive price.
View Complete Details
Ask Latest Price & Details
Load Cells

Load Cells
Global Impex Corporation is a professionally managed organization that has considerable expertise in dealing with different types of beam load cells. We are a renowned Load Cell Manufacturer from India. We are specialized in the manufacturing of compression load cell which is completely free from any leakage. We provide beam load cells and compression load cell which strictly work on the principle of conversion of mechanical weighbridge into an electro-mechanical weigh bridge. Our provide beam load cells and compression load cell are completely corrosion resistant. We provide beam load cells and compression load cell etc., at the most acceptable price.

Performance Specification

Standard Capacities 25, 30, 40 Ton
Excitation Voltage10 VDC - Maximum 15 VDC
Nominal Output2.0 mV/V
Non Linearity< +/- 0.025% FSO
Hysteresis< +/- 0.02% FSO
Non Repeatability< +/- 0.01% FSO
Creep (30 Minutes)< +/- 0.03% FSO
Zero Balance+/- 1.0% FSO
Input Resistance770 +/- 20 Ohms
Output Resistance700 +/- 7 Ohms
Insulation Resistance (50 VDC)> 1000 Mega Ohms
Cable Length ($ Core)12 Mtr.
Safe Overload150%
Ultimate Overload of Rated Capacity300%
Available Side Load50%
Side Load discrimination500:1
Temp. Compensated Range0-60 C
Temprature Effect on Output< 0.0015% FSO / O C
Temprature Effect On Zero< 0.0020% FSO / O C
Deflection< 0.5 mm at FSO
Tightening Torque10 m. Kg.
Finish & ConstructionElectroless Nickel Plated Tool Steel
Environmental Protection ClassIP68
Transient Voltage ProtectionProvided
View Complete Details
Ask Latest Price & Details
Load Cell

Load Cell
We are one of the leading Sensor Manufacturers, based in India. We provide all types of Automobile Sensors and automotive sensor that all are considered as the picture perfect example of modern science. We provide different types of automobile sensors and automotive sensor which are internationally known for their unmatched quality. Reliability and high quality are some of the hallmarks of our automobile sensors and automotive sensor. We strictly use top quality raw material for the manufacturing of our products. We provide all kinds of automobile sensors and automotive sensor at the most pocket friendly price.

Performance Specification

Standard Capacities20, 30, 50, 75, 100, 150, 200,250,300, 500, 750Kg1,1.5,2, 2.5,3, 5, 7.5, 10, 15, 20Ton
Excitation Voltage10 VDC- Maximum 15 VDC
Nominal Output3.0 m V/ V
Non Linearity< ± 0.025% FSO
Hysteresis< ±0.02% FSO
Non-Repeatability< ±0.01% FSO
Creep (30 minutes)< ±0.03% FSO
Zero Balance< ±1.0% FSO
Input Resistance392 ± 15 Ohms
Output Resistance350 ± 3 Ohms
Insulation Resistance (50 VDC)> 1000 Mega Ohms
Cable Length (4 Core Screened)5 mtr. Minimum
Safe Overload of Rated Capacity150%
Ultimate Overload of Rated Capacity250%
Allowable Side Load 50%
Temp. Compensated Range0-60 C
Temperature Effect on Output< 0.0015% FSO/ 0 C
Temperature Effect on Zero< 0.0020% FSO/ 0 C
Deflection< 0.4 mm at FSO
Tightening TorqueSee Table Below
Finish & ConstructionElectroless Nickel Plated Tool Steel
Environmental Protection ClassIP68
View Complete Details
Ask Latest Price & Details
