Our Products
Our Complete range of products are PP. HB Foot Valve, PP Threaded Bend, PP Cock, Hole Plug and Ring Joiner.
PP HB Foot Valveare especially utilized for adjusting the flow of water, liquid and various other sorts of fluids in different industrial and domestic pipe and hose fittings. We design these valves sturdily design by using graded polypropylene materials. To suffice the needs of our precious clients, we offer this range of valves in distinguished sizes, dimensions, connection ends and specifications after testifying on various quality parameters.
| Material Of Construction | Polypropylene (PP) | Construction | 2 Piece Design |
| Design | Flap Type | Test pressure | 08 kg./cm2 |
| Max working temp | 50 c (consistently) | Size Range | 50MM to 100MM |
| Connection End | Screw end (BSP thread) | Standard | As per manufacturer |
|
| Material Of Construction | PP (Polypropylene) & HDPE (High density polyethylene) | Construction | 3 piece design, 1 piece stem (spindle), full bore, Teflon seated |
| Design | 3 piece design | Test pressure | 08 kg./cm2 |
| Max working temp | 70 c (consistently) | Size Range | ½" 15MM TO 12’’-315MM |
| Connection End | Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. |
Standard | As per manufacturer |
| Material Specification | |||
| No. | DESCRIPTION | QTY. | MATERIAL |
| 1) | Flanged end | 2 | HDPE |
| 2) | Body | 1 | HDPE |
| 3) | Ball | 1 | Polypropylene |
| 4) | Stem/Spindal | 1 | Polypropylene With M.S. /S.S |
| 5) | Seat Ring | 2 | PTFE (TEFLON) |
| 6) | Body"O"Ring | 2 | Neoprene |
| 7) | Stem Seal Ring | 1 | PTFE (TEFLON) |
| 8) | Stem "O" Ring | 1 | Neoprene |
| 9) | Stud, Nut & Washer | REQ | M.S. Zinc Plated/S.S |
| 10) | Nut Cap | REQ | Polypropylene. |
| 11) | Handle | 1 | M.S. PP Coated. |
| 12) | Handle Hex. Pin | 1 | M.S./ S.S. |
| 13) | Handle Cap | 1 | Polypropylene. |
| Size | L | T | OD | ID | H1 | H | |
| In. | MM | ||||||
| 1/2" | 15MM | 129 | 12.5 | 100 | 13.5 | 130 | 69 |
| 3/4" | 20MM | 142 | 14 | 101 | 19 | 131 | 75 |
| 1" | 25MM | 160 | 20 | 123 | 24 | 165 | 89 |
| 1 1/2" | 40MM | 182 | 20 | 140 | 38 | 197 | 109 |
| 2" | 50MM | 208 | 22 | 165 | 50 | 200 | 121 |
| 2 1/2" | 65MM | 230 | 25 | 185 | 63 | 255 | 144 |
| 3" | 80MM | 251 | 25 | 201 | 75 | 255 | 150 |
| 4" | 100MM | 302 | 28 | 228 | 100 | 350 | 182 |
| 6" | 150MM | 428 | 30 | 300 | 150 | - | 236 |
| 8" | 200MM | 505 | 32 | 360 | 201 | - | 325 |
| 10" | 250MM | 570 | 34 | 425 | 242 | - | 310 |
| 12" | 315MM | 590 | 35 | 487 | 300 | - | 309 |
ThePP Threaded Bendis used where two pipes are to be joined at the turning point. The assortment is appreciated for excellent durability, high tensile strength and longer service life. These can also be customize in terms of size, quality and thickness as per the details laid by our clients.
| Specifications |
|
We are offering a huge stock ofPP Cockto our clients for use in agriculture sector. Widely used in the fittings of irrigation related activities, these polypropylene cocks regulate and control the supply of the flow. Constructed from UV resistant polypropylene materials, the range of cock is perfect for exposed as well as for underground installations. Manufactured in accordance with the industry standards and norms, the offered PP cock is available in different dimensions and sizes to choose from.
| Specifications |
|
Our offered optimum quality range ofHole Plugis ideally used in drip irrigation systems for temporarily blocking the supply of water through it. These plugs are designated by making use of topnotch quality material in conformation with the quality norms laid down by the industry. To suffice the application requirements of our clients, we offer this plug range in various sizes, diameters and dimensions.
| Specifications |
|
Ring Joineroffered by us is ideally utilized for perfectly connecting two pipelines in irrigation system. We develop these joiners by using topnotch quality material in divergent sizes, diameters, screw connection ends and dimensions to suffice the application requirements of our clients.
| Features |
|
ThisSprinkler End Plugis used in drip irrigation system to close the open end of the pipe. It is attached to the end of the drip tubing. It can be easily unscrewed for easy flushing and draining of tubing. We design this end plug in different sizes and thickness for varied diameters of pipes.
| Features |
|
ThisSprinkler Tube Setoffers the greatest hydraulic advantage. Its larger inside diameter dramatically improves flow characteristics. This tube set is specially designed for use in wet, dry, pre-action and deluge systems. Unlike other ordinary tubes, these have exceptional mechanical properties and lesser wall thickness, owing to its manufacturing through cold-forming process.
| Features |
|
Micro Tupis specially designed to meet every demand of low volume irrigation. This includes landscape installations or agricultural installations to backyard gardens. This tube can be installed above or below the ground without any risk of damaging effect. The tube is processed in such a way that it can easily sustain high pressure and flow of water along with other environmental effects.
| Features |
|
Thepoly hole plugsare used to repair the holes on poly tubes. The hole plugs are made using resilient rubber and are perfectly used in various concrete structures. The hole plug is haMMered in to the hole till it snuggly fitted in to it to achieve perfect vacuum.
| Features |
|
ThePP Spadeis used for gardening purposes. This assortment can be availed by the clients in customized sizes in order to meet their diverse requirements. Owing to strong and durable construction, this spade is offered to the clients at industry-leading prices.
AHDPE compression elbowis a pipe fitting installed among two lengths of pipe or tubing to permit a change of direction, usually a 90 or 45angle. HDPE Compression Elbow is specifically manufactured using best grade PP and latest technology.
When the two ends differ in size, the fitting is called areducing elboworreducer elbow. This elbow is in complete compliance with international quality standards and further ensures leak proof connections. Widely used for the association of fractional tube that ensures high working life, this elbow is offered in different sizes and grades as per the client's specific requirements.
Elbows are categorized based on design features as below:

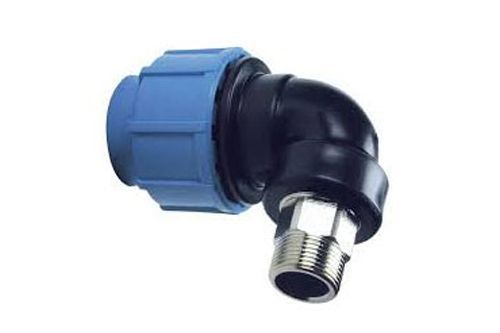

Incorporated with sophisticated technology, HDPE ElbowMale Threaded Off-Take offered by us is designed using optimum grade material. The range of male threaded elbow is broadly used in various fitting applications. Moreover, customization of this threaded elbow is provided by us to meet the requirements of customers.
Combining best available jointing technology, we are involved in offeringmale threaded tee off-take. The pp/ hdpe tee is used as both compression as well as push-fit fitting and can serve as perfect solution while installing new pipe lines as well as extension or renovation of pipe lines.
