Leading Manufacturer, Supplier & Retailer of Monolayer Blown Film Extrusion Machine, Raffia Tape Stretching Plant, Air Bubble Film Plant, PP/PET Box Strapping Plant and Automotive Carpet Extrusion Coating Line.
We are offering pp hdpe monofilament plant high output and outstanding quality monofilament lines we offering in range of products highly efficient monofilament lines to produce hdpe pp monofilament for manufacturing of: • ropes and twines • tooth brush bristles • fishing net • mosquito net • doll hair & wig hair • threads • knitting yarn • artificial grass • carpets salient features: • granulate hopper with hopper loader • energy saving extruder with barrier screw with 30:1 ld ration • continuous or standard hydraulic type screen changers • high precision monofilament die for bunch and separate monofilament • quenching tank with parallel quenching for fast cooling • heavy duty vibration free holding godets unit with no. Of five roller • energy efficient hot air oven or hot plate unit for uniform starching • control voltage pids with +_ 1o c accuracy having 4 to 6 meters length • heavy duty vibration free stretching unit with no. Of seven rollers • individual torque driven bobbin winder for bunch winding or online ring winder • ac frequency drive control system for complete plant for energy saving and maintenance free installation • temperature control system with ssr system for energy saving • independent complete technical support
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Seaworthy Stretch Warping Film Packing
Delivery Time : 8 to 12 weeks
HEAVEN Offering Air bubble Sheet Plant Its commonly used as a layer of protection for the packaging industry for fragile goods. This is achieved by utilizing dual extruders each feeding a separate die. One side of the film is heated in a vacuum mould forming the bubble and then the two layers are sealed together. The lines are able to produce air bubble packaging up to 2000 mm wide at a speed of up to 60 mpm. Air Bubble Wrap Sheets, a flexible and transparent plastic sheeting containing numerous small air pockets. The sheets offer cushioning and scratch protection far superior to packing paper and are used to protect items during shipping and storage. Bubble wrap is lightweight, water resistant, reusable on-scratching and is used for packing fragile items. It can be used to cushion medium to heavy weight products.
Additional Information:
Payment Terms : L/C, D/P, T/T
Packaging Details : Standard Seaworthy Export Packing
Delivery Time : 3 to 4 Month
HEAVEN has developed High-tech Box Strapping Plant to produce straps from Polypropylene granules. The Strap is suitable for manual clamping application, heat-sealing application and fully automatic machine heat-sealing application. We offers various models for single line, two lines, three lines and four lines straps with width of 6mm, 9mm, 12mm, 16mm and 19mm and Co-Extrusion Plants for Two Layer or Lining on straps with high production range from 35kg to 150 kghrs capacity.Box Strapping Extrusion Generates Plastic Sections of Continuous Length through Plastic Extruder. Plastic Granules are melting by required elements through Plastic Extruder to form a furnished product. This Process is carried out through Various Components like Extruder, Quenching tank, first godet, hot water tank, stretching godet, online single color printing machine, embossing unit, Stabilizing unit, third godet unit and wind on core winder.
Additional Information:
Payment Terms : L/C, D/P, T/T
Packaging Details : Standard Seaworthy Export Packing
Delivery Time : 3 to 4 Month

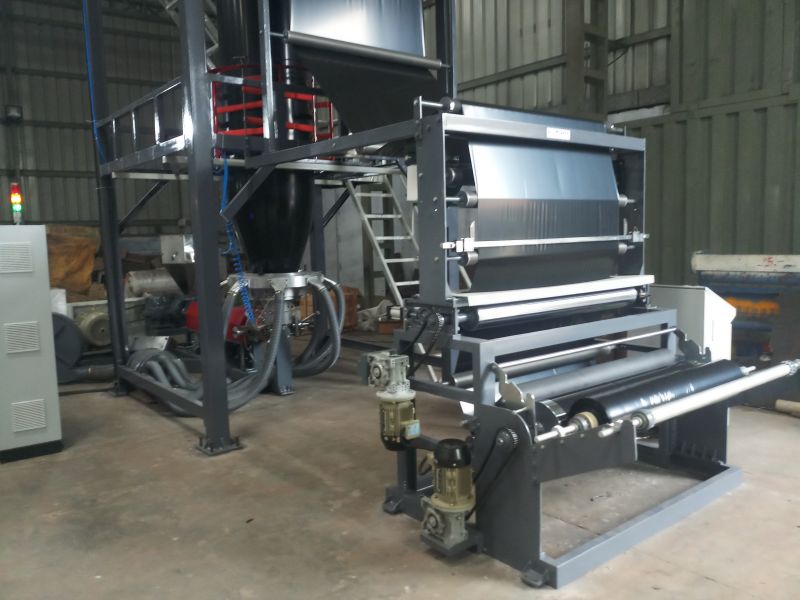

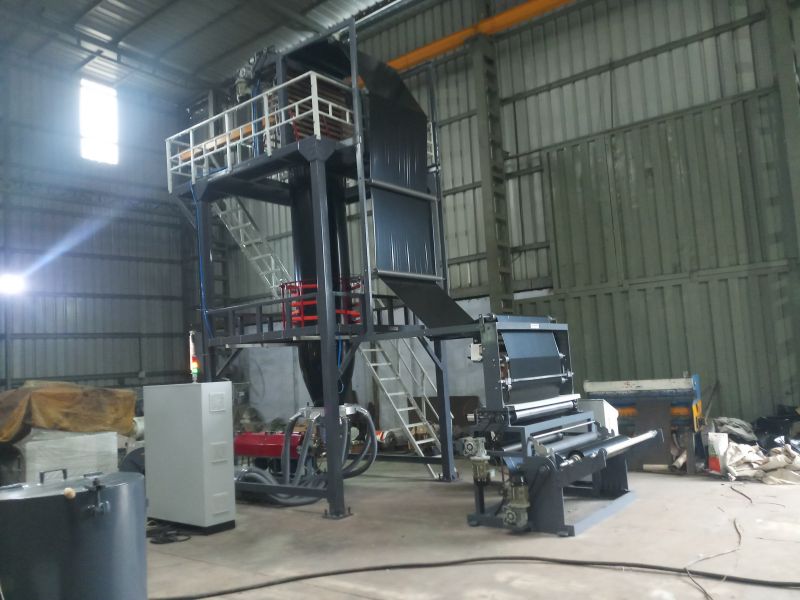

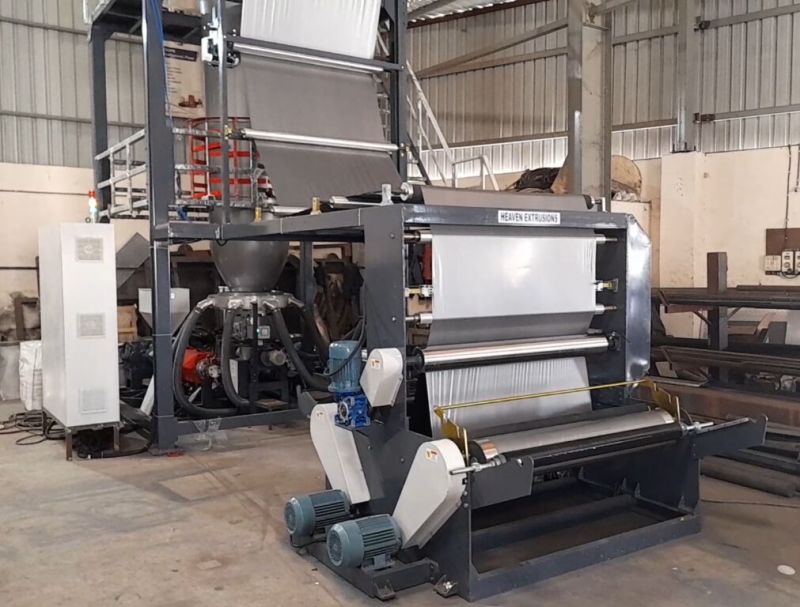

Heaven Extrusions is one of the renowned names in the industry for Monolayer Blown film Plant. Monolayer Blown Film Plants are manufactured in line with industry requirements and are used to produce lamination grade films, ultra high barrier films, liquid packaging films; high dart FFS resin sacks films, meat and cereal packaging films, green house films, and silage and mulch films. Producing single layer barrier films and mono layer blown film lines using a mono layer blown film machine is a cost-effective investment. Monolayer blown film machine is the perfect choice for packaging businesses that demand increased output with little investment and power consumption, since this equipment provides a high-speed production solution.
Application :-
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Seaworthy Stretch Film Packing
Delivery Time : 2 to 3 Month
Heaven Extrusions offer CompleteRaffia Tape Stretching Linewith output capacity up to 350 kg./ Hour. Our Plants are fully automated with highest Control technology. We manufacture the plant as per customers Specific Requirements which gives 100% Satisfaction to our Valuable Customers. Our expertise in energy saving gives our plant to produce tapes at minimum power consumption (less than 0.5 unit / kg.). As we are expert of Woven Sack Processing Machinery Manufacturer & Technical Consultant, we offer highest PPR (Price - Performance Ratio) with lowest Capital Investment. That means minimum payback period & nearest breakeven point. We also offer performance guarantee.
We deliver all Four Aces to Our Customer for their guaranteed win:
Other Details:
Specification:
| Raffia Tape Stretching Line | FET-TSL 70-150 | FET-TSL 75-200 | FET-TSL 80-250 | FET-TSL 90-350 | FET-TSL 100-400 | FET-TSL 100-450 |
| SCREW Die (MM) | 70 | 75 | 80 | 90 | 100 | 110 |
| L/D Ratio | 1.334027778 | 1.334027778 | 1.334027778 | 1.334027778 | 1.334027778 | 1.334027778 |
| Die Width (MM) | 800 | 900 | 1100 | 1300 | 1300 | 1500 |
| Max. Output PP (KG/Hr.) HDPE | 150 135 | 200 170 | 250 230 | 350 315 | 400 365 | 450 410 |
| Mani Drive | 45 KW | 56KW | 75 KW | 110 KW | 110 KW | 150 KW |
| NO of Cheese Winder | 130 Nos. | 150 Nos. | 180 Nos. | 220 Nos. | 220 Nos. | 255 Nos. |
| Max. Line Speed (MPM) | 280 | 280 | 350 | 350 | 350 | 350 |
| Total Connected Load With inverter Winder | 149.77 KW | 181.37 KW | 206.07 KW | 293.72 KW | 303.52 KW | 371.15 KW |
| Tape Plant Dimension with Winders (MM) | 25152 (L) 3925 (W) 5280 (H) | 2575 (L) 3925 (W) 5280 (H) | 27435 (L) 3925 (W) 5280 (H) | 28825 (L) 3925 (W) 5380 (H) | 28825 (L) 3925 (W) 5380 (H) | 31370 (L) 3925 (W) 5380 (H) |
Additional Information:
Payment Terms : L/C, D/P, T/T
Packaging Details : Standard Seaworthy Export Packing
Delivery Time : 3 to 4 Month
Specifications:
| Raffia Tape Stretching Line | FET-TSL 70-150 | FET-TSL 75-200 | FET-TSL 80-250 | FET-TSL 90-350 | FET-TSL 100-400 | FET-TSL 100-450 |
| Screw Die (mm) | 70 | 75 | 80 | 90 | 100 | 110 |
| L/D Ratio | 1.334027778 | 1.334027778 | 1.334027778 | 1.334027778 | 1.334027778 | 1.334027778 |
| Die Width (MM) | 800 | 900 | 1100 | 1300 | 1300 | 1500 |
| Max Output pp (kg/hr) hdpe | 150 135 | 200 170 | 250 230 | 350 315 | 400 365 | 450 410 |
| Mani Drive | 45 kw | 56 kw | 75 kw | 110 kw | 110 kw | 150 kw |
| NO of Cheese Winder | 130 Nos | 150 Nos | 180 Nos | 220 Nos | 220 Nos | 255 Nos |
| Max Line Speed (mpm) | 280 | 280 | 350 | 350 | 350 | 350 |

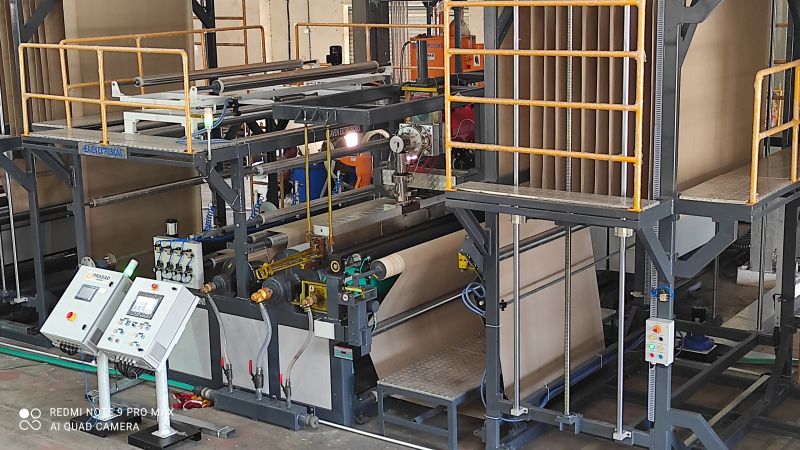

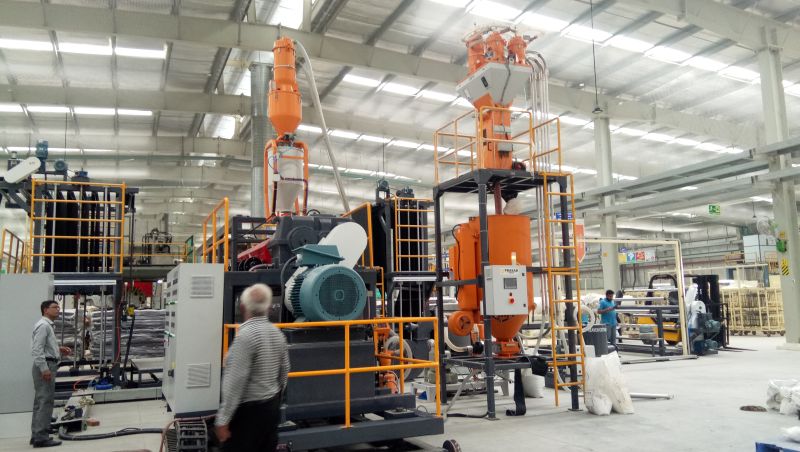

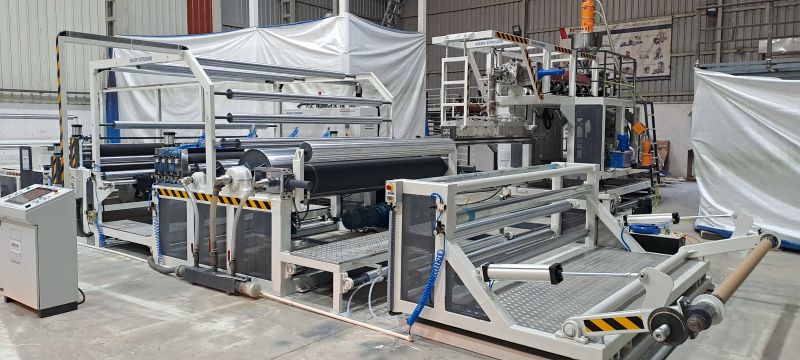

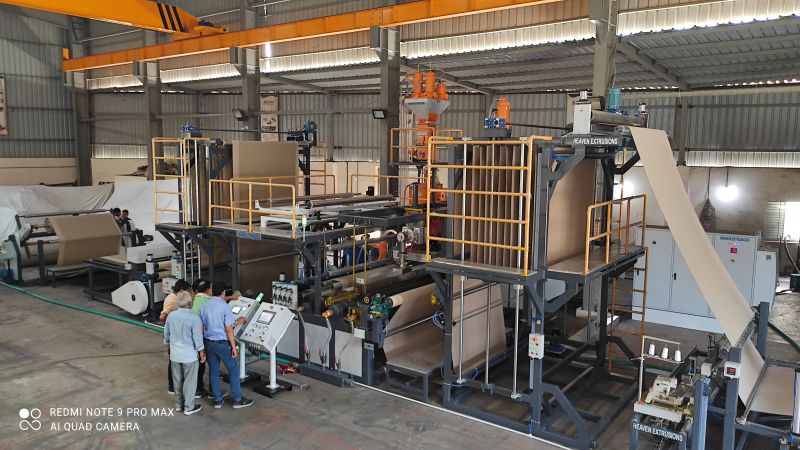

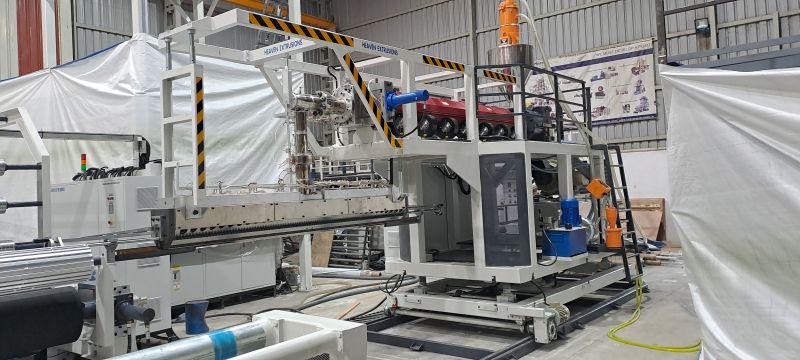

Coating and laminating a wide range of materials such as Automotive Carpet Lamination, PP/HDPE Woven Sack Fabric Lamination, Non woven Carpet and fabric Lamination, Paper Lamination, PP HDPE Tarpaulin Coating is done with a plastic lamination and extrusion coating facility. A moisture-resistant extrusion coated layer protects a printed substrate. Wide ranges of equipment are available on the market to meet the needs of the plastic production and processing industries.
For More details please contact us sales.heavenextrusions@ and Call us +91- or +91
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Seaworthy stretch film Packing
Delivery Time : 10 to 12 weeks

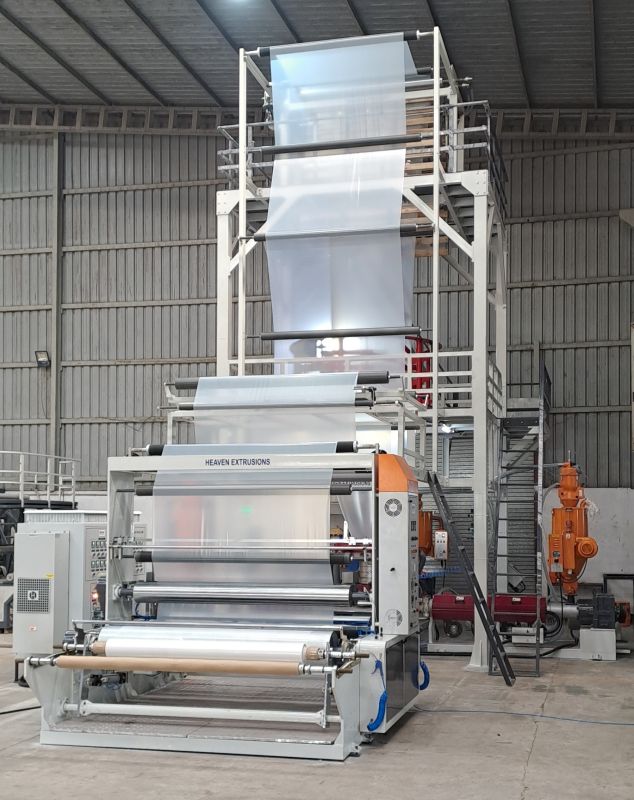

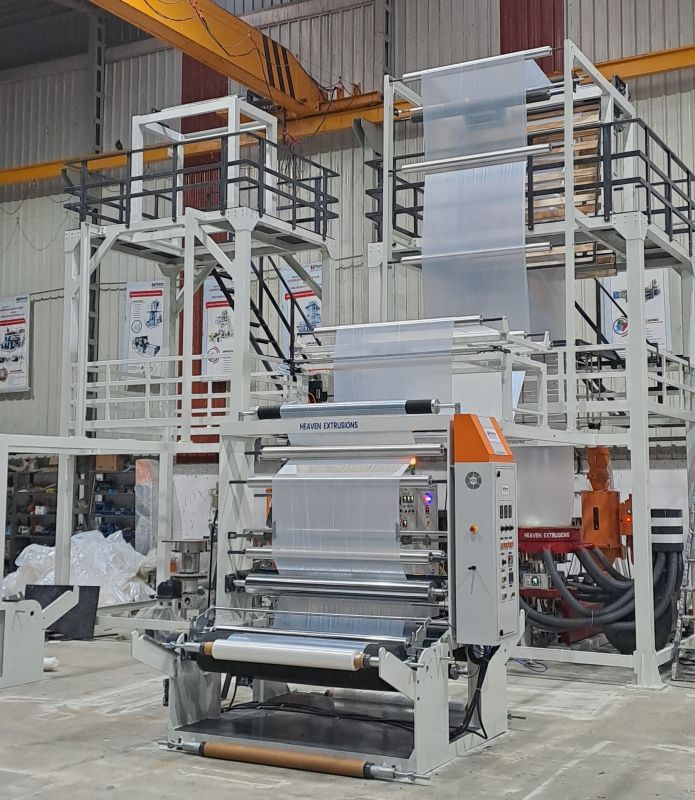

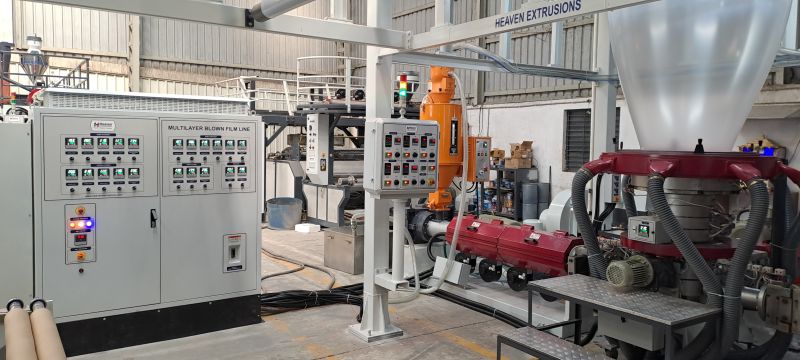

Multilayer Blown Film Line/Machine/Plant

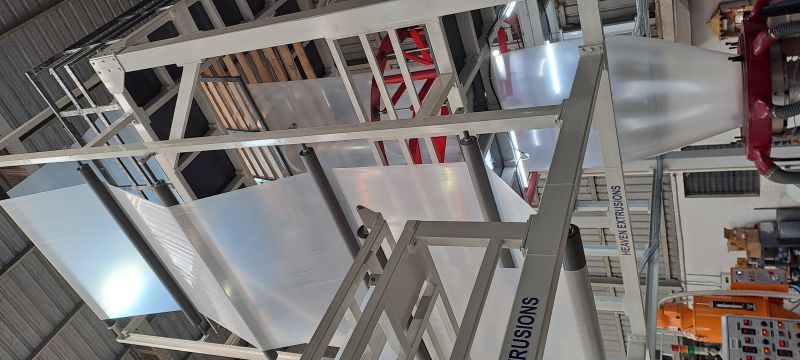

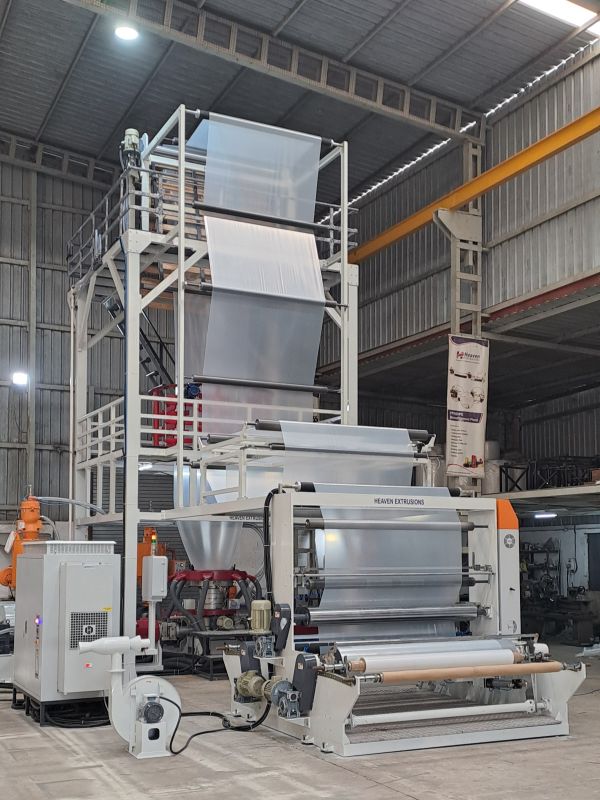

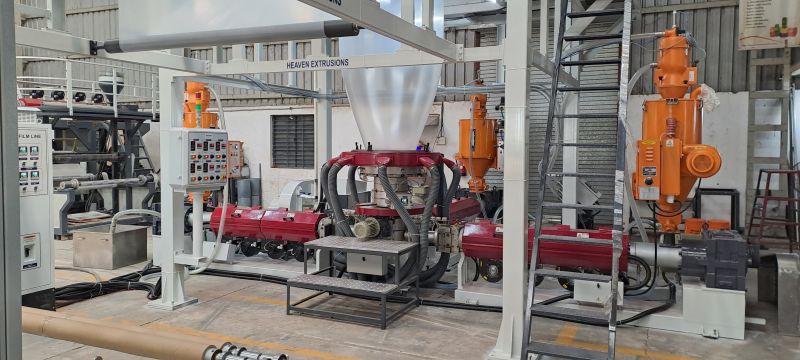

The blown film technique is used to make a wide range of goods, from basic monolayer bags to very sophisticated multilayer food packaging systems. Blown film co extrusion, which mixes two or more liquid polymer layers, can be used to create multilayer film structures. Tubular film is produced using HEAVEN's Multi-Layer Blown Film Line. The film can be used in the petrochemical and chemical industries for heavy-duty packaging bags on FFS automatic packaging lines. The goods are upright, attractive, strong, stackable, and prevent slide-down.
For More details please visit
Additional Information:
Payment Terms : L/C, D/P, T/T
Packaging Details : Seaworthy Stretch wrap film Packing
Delivery Time : 2 to 3 Month
