Hydrofit Engineers

George Town, Chennai, Tamil Nadu

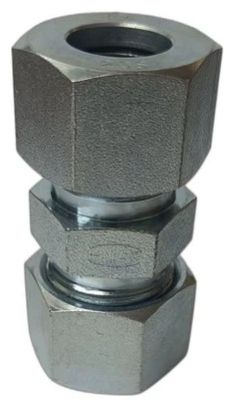

A hydraulic union or straight coupling DIN 2353 single bite ferrule type is a type of hydraulic fitting that is commonly used in high-pressure hydraulic systems. The coupling is a three piece design coupling assembly consisting of three distinct parts Components of the Hydraulic Union Straight Coupling Assembly :The Hydraulic Straight Coupling assembly consists of :The Main Union Body, the Nuts and the Ferrules or Cutting Rings. Union Body : The Main Union Body is the Male threaded adapter which has a special 24 Degrees conical seats at both ends to seat the Ferrules or cutting rings and a center step seat for the Hydraulic Tube or Pipe to rest on, in the coupling assembly.Progressive Nut : The Nuts are the tightening portion of the coupling as it screws onto the coupling body and presses the ferrule or cutting ring onto the pipe

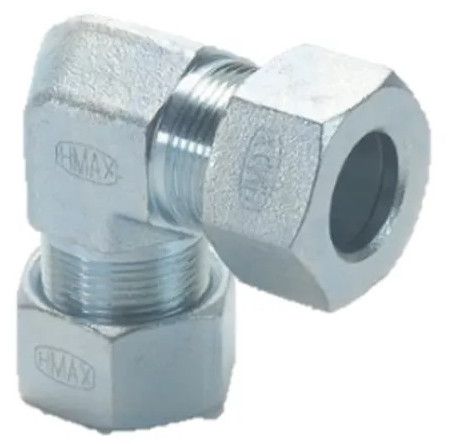

A hydraulic equal elbow is a type of hydraulic fitting that is used to change the direction of fluid flow in a hydraulic system. It is called an equal elbow because the angle of the bend is equal on both sides of the fitting. Hydraulic equal elbows come in different sizes and configurations to suit different hydraulic applications. In this article, we will discuss the various aspects of hydraulic equal elbows in detail.Types of Hydraulic Equal ElbowsHydraulic equal elbows come in different types based on their configuration and size. Some of the commonly used types of hydraulic equal elbows are as follows:90 Degree Elbows: 90 degree elbows are the most commonly used hydraulic fittings. They consist of an elbow-shaped fitting with a 90-degree angle on both sides. 90 degree equal elbows are used in applications where the hydraulic system requires a change in direction without a significant change in the flow rate

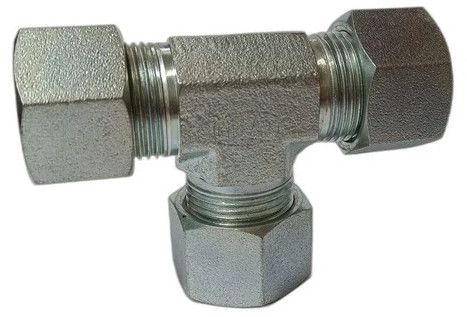

A hydraulic equal tee is a type of hydraulic fitting that is used to join three hydraulic components or pipes at right angles to each other. It is called an equal tee because all three branches of the fitting are of the same diameter. Hydraulic equal tees come in different sizes and configurations to suit different hydraulic applications. In this article, we will discuss the various aspects of hydraulic equal tees in detail.Types of Hydraulic Equal TeesHydraulic equal tees come in different types based on their configuration and size. Some of the commonly used types of hydraulic equal tees are as follows:Threaded Equal Tees: Threaded equal tees are used in applications where the hydraulic system requires a connection with a female threaded fitting. They consist of a tee-shaped fitting with three threaded branches.Welded Equal Tees: Welded equal tees are used in applications where the hydraulic system requires a permanent connection between three pipes or components. They consist of a tee-shaped fitting with three branches that are welded to the pipes or components

A hydraulic swivel elbow is a device used to connect two hydraulic hoses or pipes while allowing for rotation between them. This type of elbow is typically used in hydraulic systems where hoses or pipes are subject to twisting or bending. The swivel elbow helps to prevent damage to the hoses or pipes and allows for smoother operation of the system.This elbow consists of two separate parts: the male fitting and the female fitting. The male fitting is attached to one end of the hydraulic hose or pipe, while the female fitting is attached to the other end. The two fittings are then joined together by a rotating joint, allowing for free movement between the two hoses or pipes

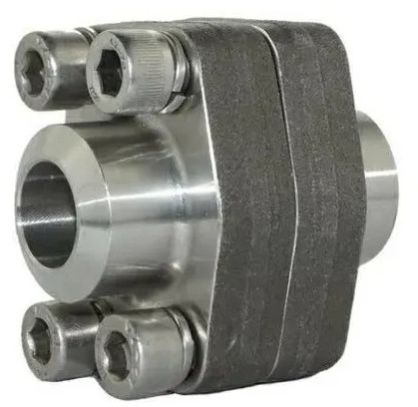

Hydraulic flanges are components used to connect hydraulic hoses, tubes, or pipes in a fluid power system. They provide a secure and leak-free connection between two components by creating a flat sealing surface between the two flange halves. Hydraulic flanges are commonly used in applications where high-pressure fluid transfer is required, such as in the oil and gas, marine, and construction industries.Hydraulic flanges come in different shapes and sizes, but the most common type is the SAE standard 4-bolt flange. This type of flange has four bolt holes arranged in a square pattern, and it can accommodate hydraulic hoses or tubes with different sizes and types of end connections, such as flared, O-ring face seal, or straight thread connections

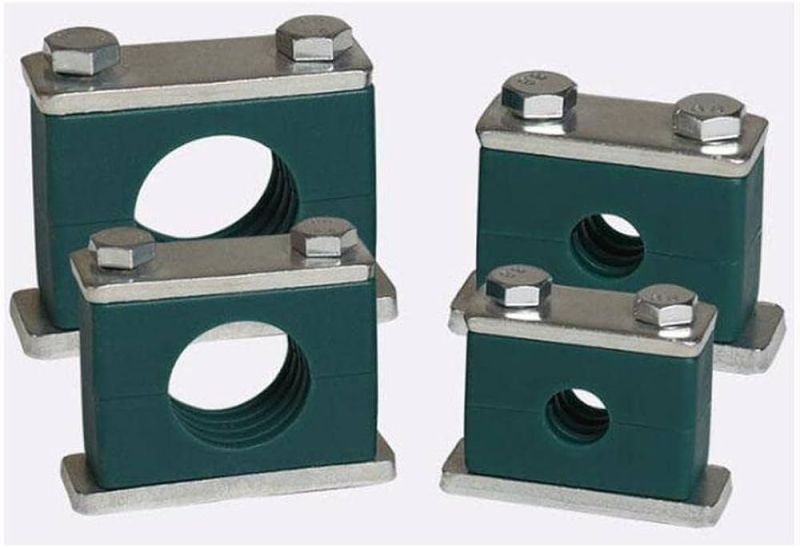

Hydraulic clamps, also known as hydraulic tube clamps or hydraulic pipe clamps, are devices used to secure and support hydraulic pipes, tubes, or hoses in various applications. They are designed to provide stability and prevent movement or vibration of the pipes, which is crucial in hydraulic systems to maintain efficiency and prevent damage.These clamps typically consist of two main parts: a metal clamp body and a securing mechanism such as bolts or screws. The clamp body is usually made of materials like steel or aluminum and is designed to securely hold the hydraulic pipe in place. The securing mechanism allows for easy installation and adjustment of the clamp to accommodate different pipe sizes.Hydraulic clamps come in various sizes and configurations to fit different pipe diameters and mounting requirements. They are often used in industries such as manufacturing, construction, agriculture, and automotive to secure hydraulic lines in hydraulic systems, hydraulic machinery, and hydraulic power units

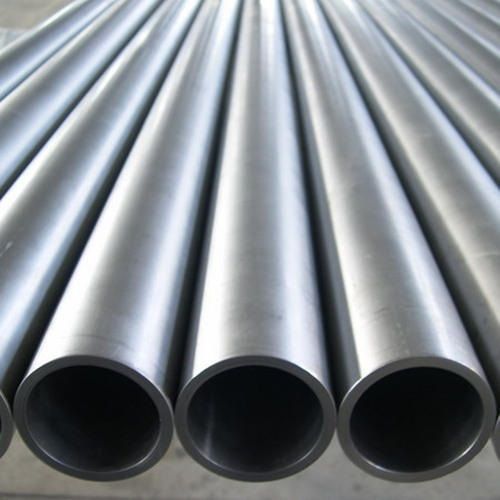

Hydraulic seamless tubes play a crucial role in various industries, contributing to the efficiency and reliability of hydraulic systems. These tubes are designed to withstand high-pressure applications, ensuring the seamless transmission of fluids and providing a durable solution for hydraulic components

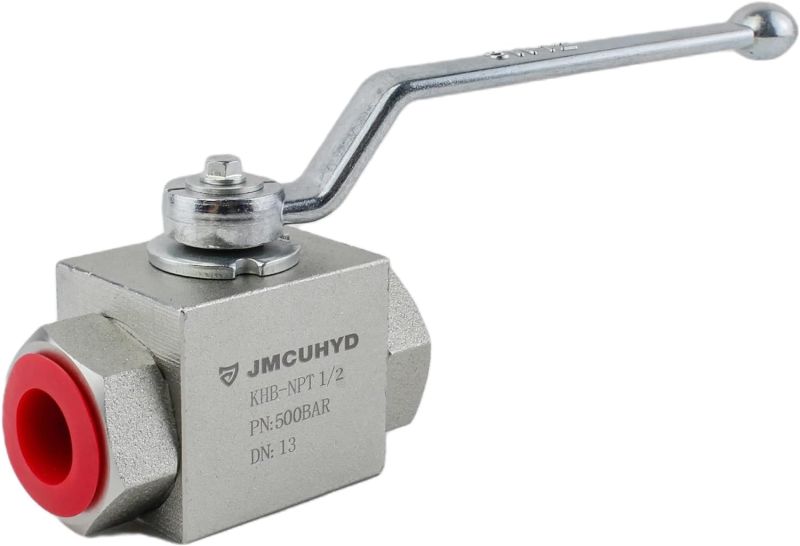

High pressure ball valves are specialized types of valves designed to withstand high-pressure environments. They are commonly used in industrial applications where high-pressure fluids, gases or chemicals need to be controlled or shut off. High pressure ball valves are typically made of materials such as stainless steel, carbon steel, or other strong alloys that can withstand the high pressures and temperatures of the system they are installed in. One of the key features of high pressure ball valves is their ball-shaped sealing element, which rotates inside the valve body to regulate the flow of the fluid or gas. This ball-shaped design allows for quick and precise control of the flow, as the valve can be easily opened or closed with a simple quarter-turn of the handle or actuator

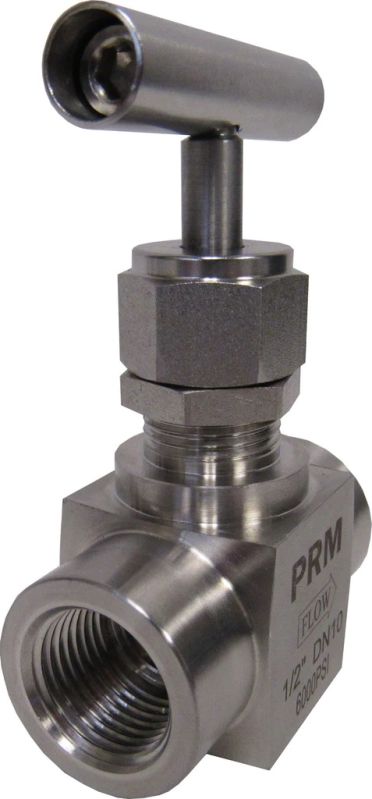

A high pressure needle valve is a type of high pressure valve that is designed to regulate the flow of fluids or gases at high pressures. It is typically used in industrial applications where precision flow control is required, such as in the oil and gas industry, chemical processing, and high-pressure testing.The valve gets its name from the shape of its internal components, which resemble a needle. The valve has a slender, tapered stem that is threaded at the top, and a small orifice at the bottom that is surrounded by a tapered seat. When the stem is turned, the tapered end of the stem moves closer to or further away from the seat, controlling the flow of fluid or gas through the orifice.High pressure needle valves are made from durable materials such as stainless steel, brass, or carbon steel, and are designed to withstand the high pressures and temperatures associated with industrial applications. They come in a variety of sizes and configurations, including straight, angled, and multi-port versions, and can be operated manually or with pneumatic or electric actuators

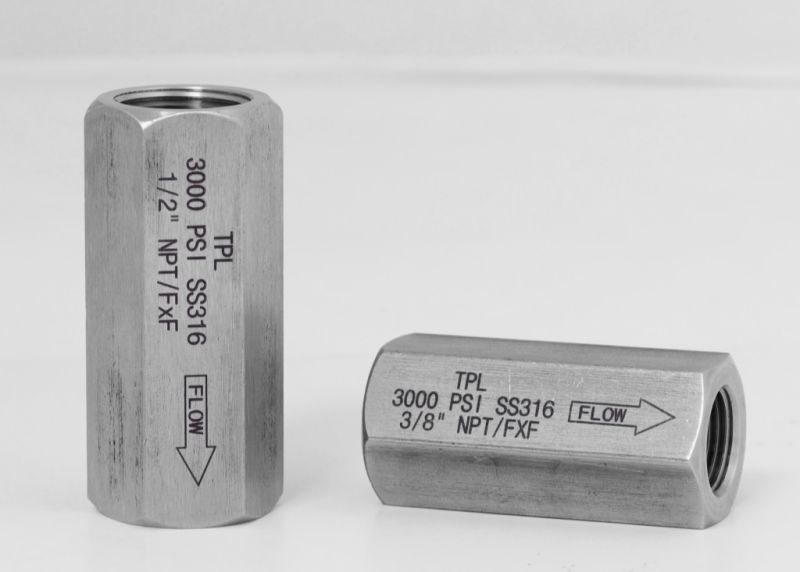

A non return hydraulic valve, also known as a hydraulic check valve, is a specific type of non return valve designed for use in hydraulic systems. Its primary function is to allow the flow of hydraulic fluid in one direction while preventing reverse flow. This is crucial in hydraulic systems to maintain the desired direction of fluid flow and prevent the loss of pressure.Key Features of a Hydraulic Non Return ValveFunctionality: The primary function of a hydraulic non-return valve is to allow fluid flow in one direction and block it in the opposite direction. It ensures that hydraulic fluid moves in the intended direction within the system.Design: Hydraulic non-return valves come in various designs, including ball check valves, poppet valves, and pilot-operated check valves. The design choice depends on factors such as pressure requirements, flow rates, and system specifications.Pressure Rating: These valves are designed to handle the specific pressure levels encountered in hydraulic systems. The pressure rating is a critical factor in selecting the appropriate valve for a given application

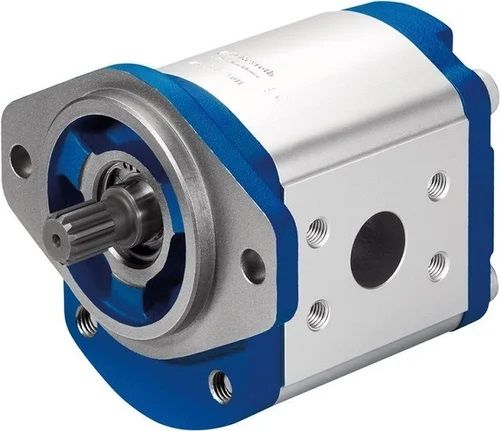

Hydrofit Engineers is a leading Dealer and Supplier in India of Hydraulic Gear pumps used for Hydraulic Power Packs, Hydraulic SPM Machines, Agricultural machines and more. The company deals in the entire range of Hydraulic Gear Pumps covering OP Series, 1P Series, 2P Series, Tandem Gear Pumps and Triple Gear PumpsHydraulic gear pumps are devices that are used to transfer fluids from one place to another through the use of gears. They are an essential component in hydraulic systems that are used in a variety of industries, such as construction, agriculture, mining, and transportation. In this article, we will discuss hydraulic gear pumps, their components, and how they work.

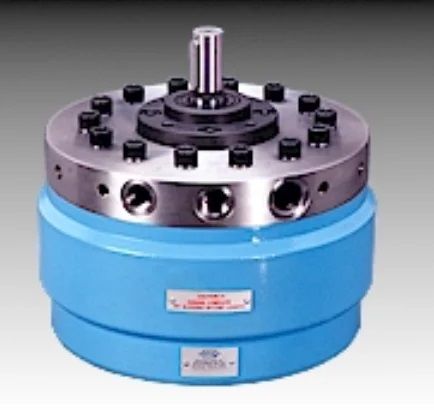

Radial piston pumps are a type of positive displacement pump that are commonly used in a variety of industrial applications. These pumps are designed to generate high-pressure flow rates by using them to compress fluid within a circular housing. They are known for their reliability, efficiency, and ability to operate in a wide range of temperatures and pressures.Working principle of Radial Piston PumpRadial piston pumps consist of several pistons that are arranged in a circular pattern around a central shaft. The pistons are driven by a cam or a swash plate, which rotates around the central shaft. As the pistons move in and out of their respective cylinders, they create a vacuum that draws fluid into the pump. The fluid is then compressed by the pistons as they move back towards the center of the housing. The compressed fluid is then expelled through an outlet port

Vane pumps are a type of hydraulic pump that use a series of vanes mounted within a rotor to generate hydraulic pressure. They are commonly used in a wide range of industrial applications due to their versatility and reliability.The basic construction of a vane pump consists of a housing, a rotor, and a set of vanes. The housing is typically made of cast iron or aluminum and is designed to house the rotor and vanes. The rotor is a cylindrical component that rotates within the housing, and the vanes are mounted within slots in the rotor. The vanes are typically made of a composite material, such as carbon or graphite, and are spring-loaded to maintain contact with the housing as the rotor rotates.

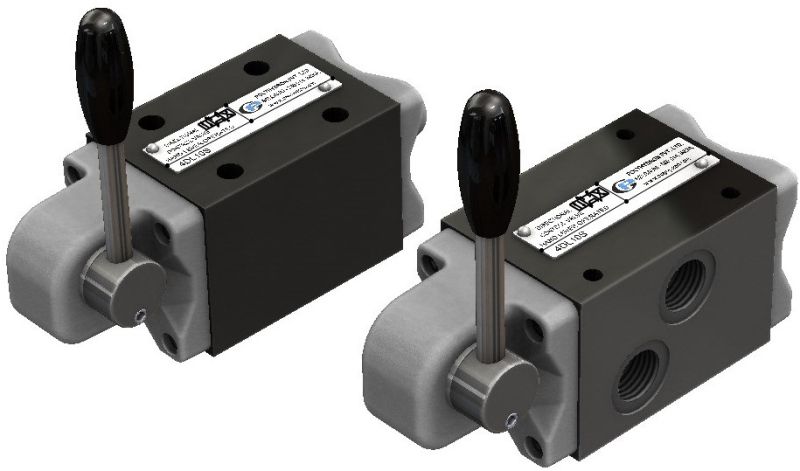

These valves regulate the flow direction of the hydraulic fluid. They can be used to control the movement of hydraulic cylinders or motors. They are typically classified as two-way, three-way, or four-way valves, depending on the number of ports and positions they have.

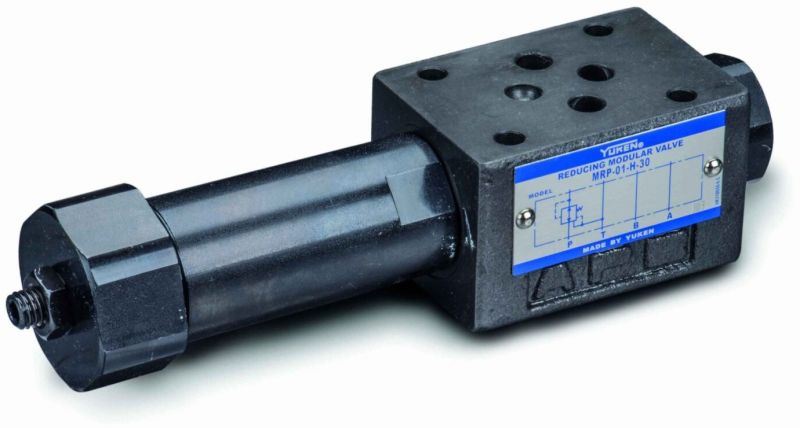

These valves regulate the pressure of the hydraulic fluid in the system. They can maintain a constant pressure or limit the pressure to a specific value.

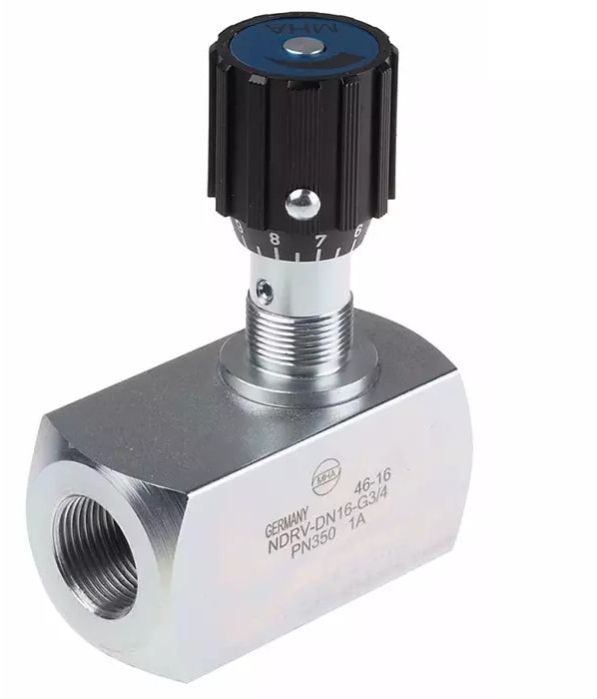

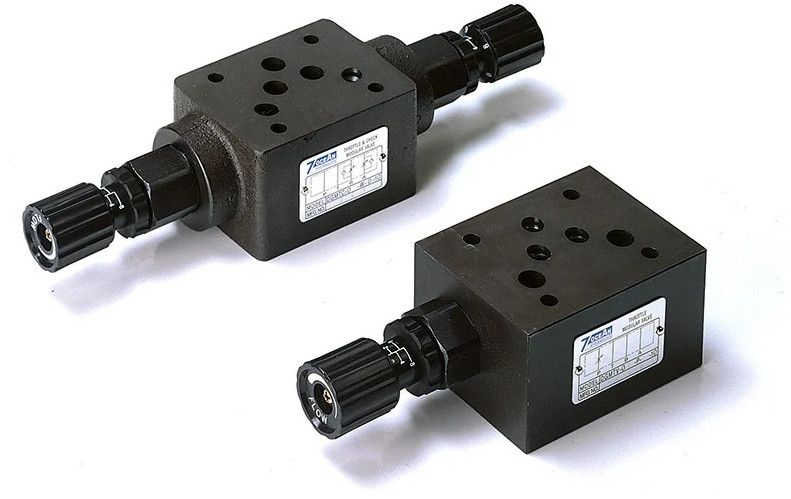

These valves regulate the flow rate of the hydraulic fluid in the system. They can be used to adjust the speed of hydraulic cylinders or to control the flow of fluid to specific hydraulic components. Some common types of flow control valves include needle valves, throttle valves, and flow divider valves

These valves are used to regulate the flow rate or pressure of hydraulic fluid in proportion to an electrical or mechanical input signal. They are commonly used in applications where precise control of hydraulic performance is required.

Hydraulic relief valves are important components of hydraulic systems that are designed to protect the system from overpressure conditions. They help regulate the pressure of hydraulic fluid and prevent damage to the system and its components. Here is a brief overview of how hydraulic relief valves work and their functions:Working of hydraulic relief valvesHydraulic relief valves work by opening and diverting the flow of hydraulic fluid to the tank when the system pressure exceeds a set pressure. The valve has an adjustable spring-loaded pressure relief valve that opens when the system pressure exceeds the valves set pressure. As the pressure relief valve opens, it diverts the excess fluid flow to the tank, thus preventing damage to the system and its components due to overpressure.Functions of hydraulic relief valvesa. Overpressure protection : The primary function of hydraulic relief valves is to protect the system from overpressure conditions. If the system pressure exceeds the valves set pressure, the relief valve opens and diverts the excess fluid flow to the tank, preventing damage to the system and its components

These valves control the order in which hydraulic actuators operate. They are commonly used in systems where multiple actuators need to be controlled in a specific sequence.

These valves allow the flow of hydraulic fluid from two separate sources to be combined or diverted. They are often used in applications where redundancy is necessary

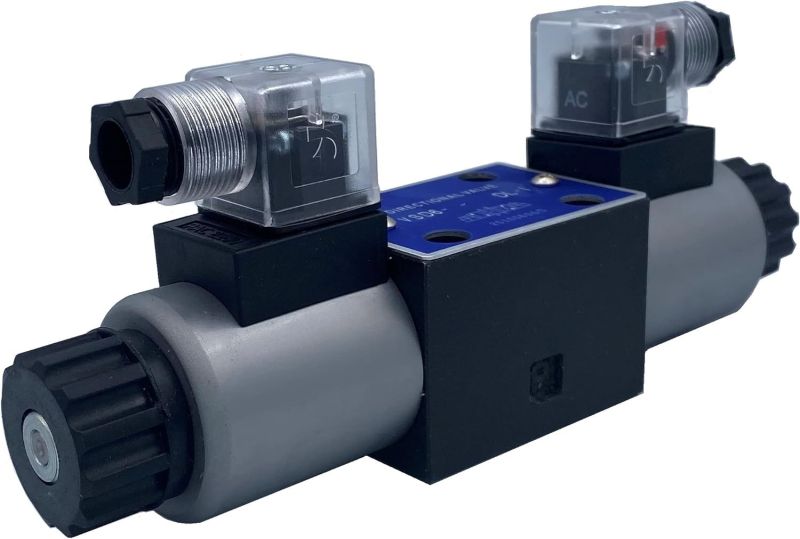

These valves are operated by an electric current and are often used in applications where remote control is required

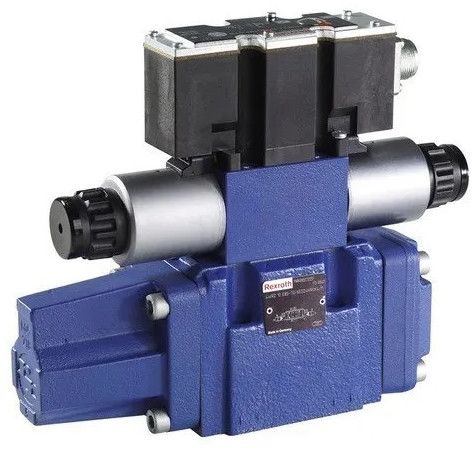

These valves are high-precision proportional valves that are used to control the position or speed of hydraulic cylinders or motors. They are typically used in applications where precise motion control is required, such as in aerospace and industrial automation.

These valves use a combination of electrical and hydraulic control to provide precise control of hydraulic fluid flow and pressure.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

A pneumatic cylinder is a mechanical device that uses the power of compressed air to produce force and motion. It is a type of linear actuator, meaning it creates motion in a straight line, as opposed to rotary motion.The basic components of a pneumatic cylinder include a cylindrical chamber or tube, a piston, and two valvesone for intake and one for exhaust. Compressed air is introduced into the cylinder through the intake valve, causing the piston to move in the desired direction. The exhaust valve allows air to escape from the cylinder, enabling the piston to return to its original position.Pneumatic cylinders are commonly used in various industrial applications, such as manufacturing, automation, and machinery. They are valued for their simplicity, reliability, and relatively low cost. Additionally, pneumatic systems are often preferred in environments where cleanliness and the avoidance of electrical components are important, as they do not produce sparks and are not affected by electrical interference
