Our Products

We are leaders in the market for providing best range of Waterwash Flexo Plate Machine, Washout Unit, Wovensack Flexo Press, Printign Station and Letterpress Plates

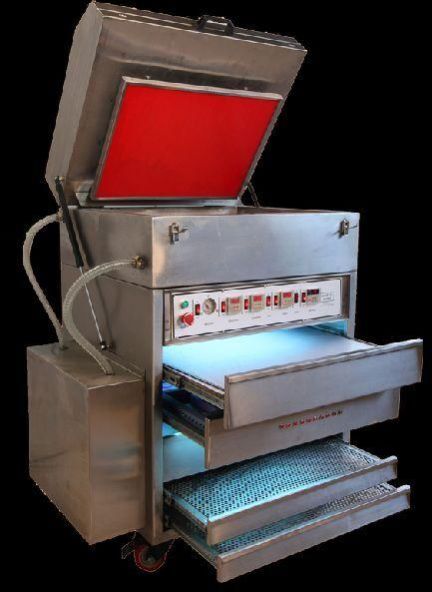

Waterwash Flexo Plate Machine

@FlexoPhotopolymer Plate Making Machine
ForWaterwash flexo Plate Making Equipment
(Model : @C-A2SSF / @C-A3SSF / @C-A4SSF / @C-2430 / @C-3040)
Plates suitable : Label, film, paper, corrugated board, paper carton, bag, Tetra pak etc. Exposure + Washout + Drying +Treatment (Light finishing) in complete set @C-A2SSF
All stainless steel.
Exposing+drying+washout+treatment.
With water circulation & filtration system.
Simple operation, best plate result

Features of Exposure unit :

Instant light up Philips high intensity lamps
Unique digital timers for back/main exposure
Excellent lamps cooling / exhausting system
Quick vacuum drawdown pump with indicato

Features of Washout unit :

High temperature water washout
With water circulation system
Special arrangements of brush
With residue filtration system

Features of Drying unit :

Drying drawer with uniform heat distribution
Temperature adjustable by a precise controller
Unique air circulation and exhaustion design
Over heat sensor for safety and protection

Features of Treatment unit :

Chemical free operation, simple, easy and save
Digital timer for light finishing control
Philips UVC high intensity lamps equipped
With powerful air exhausting for big size models

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@2430 ET	EXPOSING+TREATMENT	132 x 120 x 60	250KG	350KG	1.5KW
@C-A2SSF	EXPOSING+DRYING +WASHOUT+TREATMENT	120 x 100 x 125	235KG	335KG	2.8KW
@3040 ET	EXPOSING+TREATMENT	145 x 114 x 76	300KG	450KG	2.5KW
@C-A3SSF	EXPOSING + WASHOUT + TREATMENT	940 x 770x 400	85KG	125KG	1.2KW
@C-A4SSF	EXPOSING+DRYING	760 x 650 x 400	56KG	90KG	1KW
