Leading Manufacturer, Supplier & Retailer of CA17 Used Cast Film Extrusion Line, CA12 Used Cast Film Extrusion Line, Uteco Rainbow, Uteco Usimeca and Lemo Capmat.

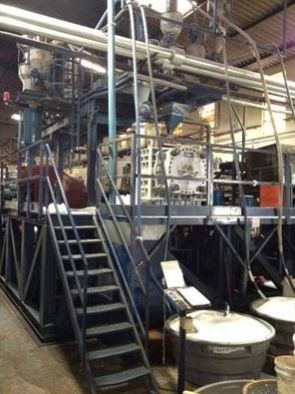

We are one of the leading Importers and Exporters of CA12 Used Cast Film Extrusion Line from Italy. Our company is known for consistently imparting high quality products at fair prices. The CA12 Used Cast Film Extrusion Line, we are making available, is in high demand by buyers due to its great efficiency, premium finish, and high durability. We are providing our buyers with fast paced and hassle free delivery of Used Cast Film Extrusion Line.
Details
| Manufacturer | DOLCI |
|---|---|
| Year | 1997 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | STRETCH |
| Film width (mm) | 2000 |
| Extruder 1 Layer ref: | A |
| Extruder 2 Layer ref: | B |
| Extruder 3 Layer ref: | C |
| Head description | Simplas |
| Chill roll unit | Chill roll: diam 1 800 mm,diam 2 350 mm |
| Rewinder max reel diameter (mm) | 600 |
| Additional informations | Max Output: Kg/h 1000 kg/hr, with 25 micras Usual average working out put 24 tons/ day Max speed m/min 380 m/min Slitting device up to 5 slitting Chiller Inline regranulating and recovery unit included |

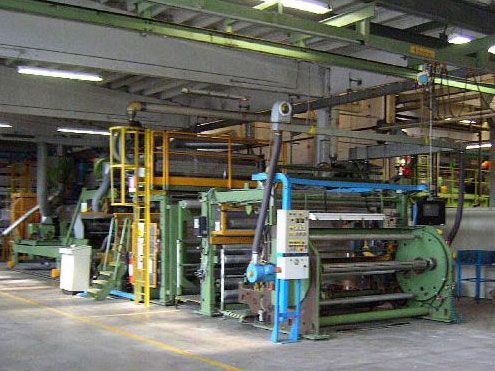

We bring forth CA17 Used Cast Film Extrusion Line from the house of Prandi for the global market. We are bracketed with the top-notch Exporters and Importers of CA17 Used Cast Film Extrusion Line from Italy. This pre-owned machinery has consistently been delivering optimal performance since 1984. We have restored Cast-Film Extrusion Line to its pristine state, whereby it is deemed fit for executing hassle-free operation for a longer time period.
Details
| Manufacturer | PRANDI |
|---|---|
| Year | 1984 |
| Number of layers | 1 |
| Material | CPP |
| Film width (mm) | 2000 |
| Output (Kg/h) | 350 kg/h gross output |
| Screw diam | 160 |
| Head description | fixed extrusion die manual adjustment, |
| Die width (mm) | 2300 |
| Chill roll unit | Head: manual adjustment, air and smoke suction by fan and encapsulating hood\r\nChill roll: with two cylinders (diameter 750 and 300 mm UNION SELECT width 2400 mm, independent thermoregulation units for the two cylinders, rubber-covered pressure roller and brush cleaner; Thickness : 25 to 250 micron ;edge pinning system by air; |
| Thickness controll system | Electronic system thickness mesurement; |
| Corona treatment | single-face corona treatment unit, FERRARINI & BENELLI |
| Web guide | E+L |
| Rewinder max reel diameter (mm) | 800 |
| Rewinder description | TURRET winder , transversal guillotine cut, control device: PLC Siemens |
| Additional informations | In line slitting;automatic hopper loader (without dosing systems);air and smoke suction by fan and enca;side-slip unit ERHARDT + LEIMER;motor-drrevolver-type winder with lay-on roller and contact carriage, transversal guillotine cut, max. reel diameter 800 mmiven haul-off unit and trimming group with 4 rotary blades;control device: PLC Siemens |
