Kavaatavalves

Vadgaon, Belgaum, Karnataka

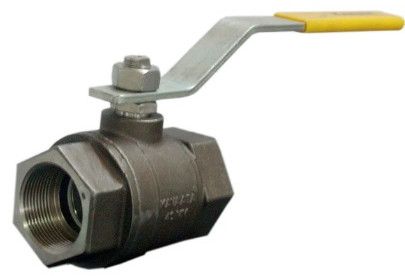

The screwed end 2 piece design ball valves are economical as the design is simpler with less number of body joints. However, there is no compromise on quality- be it in material selection or workmanship. All the sizes are Full Bore. " Ball Valve is available in reduced bore also.

Kavaata Screwed End Investment Cast Ball Valves are designed and manufactured as per BS 5351/ ISO17292 or API 6D standards. The materials of construction generally offered are ASTM A216 Gr WCB (CS), ASTM A351 Gr CF8 (SS304) and ASTM A351 Gr CF8M (SS316).

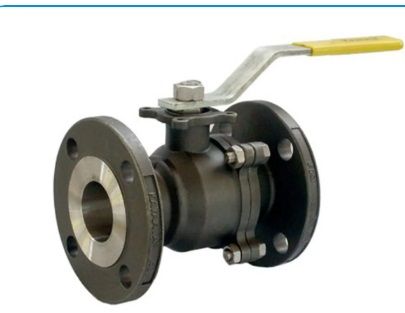

Flanged End 2 Piece design Ball Valves are economical & less prone to leakages. These valves are also known as Split Body design valves. These valves are by far most commonly used Ball Valves in the industry. These Ball Valves are available in ASA Class 150# & are tested as per Fire safe test standards such as API 607 VI edition / ISO 10497:2010.

KAVAATA Flanged End Ball Valves are made from Investment Castings, designed & manufactured as per ISO 17292 / API6D standards. The material of construction generally offered are ASTM A216 Gr WCB (CS), ASTM A351 Gr CF8 (SS304) & ASTM A351 Gr CF8M (SS316).

The Forged Steel Ball Valves are rugged in construction and are designed as per BS 5351 (ISO 17292) standards. The material of construction offered is ASTM A105 Forged Steel. The trims can be supplied in SS304 or in SS316.

A butterfly valve is a type of flow control device used to regulate or isolate fluid flow in pipelines. It consists of a circular disc or plate (the "butterfly") mounted on a rotating shaft. When the valve is fully closed, the disc blocks the passageway entirely; when fully open, the disc is rotated a quarter turn (90 degrees) to allow fluid to pass through almost unrestricted.

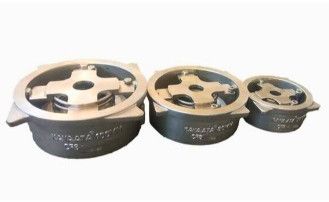

KAVAATA Non-Slam Check Valves are made of Investment Castings, designed and manufactured as per BS7438/ ASME 16.34. The valve can be supplied in sizes like 1/2 to 4. The common materials of construction are ASTM A216 Gr WCB (CS), ASTM A351 Gr CF8 (SS304) and ASTM A351 Gr CF8M (SS316) Non-slam check valves are lift type non return valves used in pipelines to prevent backflow of the fluids with elimination of water hammer effect and hence reducing resultant pressure swings, vibrations and damage. Their application is found throughout the chemical processing industry, steam condensate systems, power generation industry, textile industry, water treatment, boilers etc. These valves are used in process line, hot & cold water system, heating system, oil lines etc.

Kavaata Socket Weld End Investment Cast Ball Valves are designed and manufactured as per BS 5351/ ISO17292 or API 6D standards. The materials of construction generally offered are ASTM A216 Gr WCB (CS), ASTM A351 Gr CF8 (SS304) and ASTM A351 Gr CF8M (SS316). Application Standards Throttle Check valves are used where volume flows have to be infinitely controlled in one direction while allowing for free flow in the reverse direction. A typical use is the speed control of cylinder or other actuators. The free flow control allows for meter-in or meter-out actuator control. WORKING PRESSURE: 100 Kg/ Sq. cm

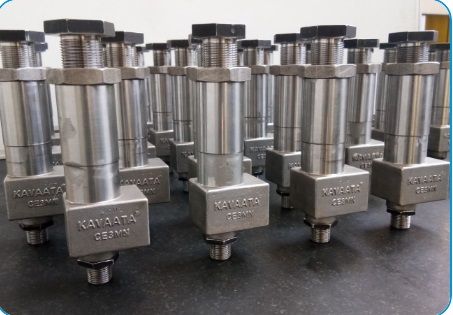

A safety relief valve (SRV) is a pressure-relieving device designed to open at a specified set pressure to relieve excess pressure and reclose once normal conditions are restored.
