Our Products
Our offered Product range includes Automatic Polishing Machine, Magna Scope, Phenolic Moulding Powder, Belt Polisher and COD Digestion Apparatus.
| Image Sensor | 1/3. 2 CMOS |
| Image Format | 640×480800×6001024×7601280×1024 |
| Data Format | YUY21420 |
| Image Output | USB2.0, plug-and-play |
| Connecting Mode | Insert it into Eyepiece Tube of Microscope Directly (23.2mm or 30mm) |
| Image Velocity | 30PfS@VGAI420 15PfS@VGA(YUY2) |
| Lowest Illumination | 2.5LUX |
| SNR | 48dB |
| Camera Image Control | Saturation, Contrast, Sharpness and so on |
| White Balance | Auto, Manual |
| Exposure | Auto, Manual |
| Working Current | 200mA |
| Dormant Current | 1mA |
| Storage Temperature | -20~+60 |
| Viewing Head | Siedentopf Binocular Viewing Head, Inclined At 30°, Rotatable, Interpupilary 47mm-75mm |
|
| Extra Wide Field Eyepiece WF 10X/22 | ||
| Backward Quintuple Nosepiece | ||
| Infinite Plan Achromatic Objective 4X, 10X, 40X, 100X | ||
| Condenser | Abbe Condenser NA1.25 with Aperture Diaphragm | |
| Focusing System | Coaxial Coarse And Fine Adjustment, Fine Division 0.002mm Fine Stroke 0.2mm per Rotation Moving Range 24mm |
|
| Stage | Double Layer Mechanical Stage 216X150mm, Moving Range 78X5450mm two-slice is available |
|
| Illumination | 3W LED Illumination | |
| Optional Accessories | Photo Attachment | |
| Video Adapter | ||
| Polarization Attachment | ||
| Phase Contrast Kit | ||
| Dark Field | Dark-Field Condenser (Dry) | |
| Dark-Field Condenser (Oli) | ||
| Kohler Illumination | ||
| Epi-fluorescent Attachment | ||
Being a customer focused organization, we are engaged in the manufacturing and supplying process of a wide gamut of Tensile Testing Machine. All our products are developed using superior quality material and other required components. These products widely used for tests like tension, compression, cross breaking/bending, shear, linear bonding/gripping/peeling strength of adhesives and tapes. Features: Wide range of grips, attachments and special fixtures are available to suit variety of material and shapes. Continuous roll autographic "load vs elongation" recorder Elongation scale with least count 1 mm. Three measuring ranges for accurate testing A number of straining speeds are available for proper selection Machine with AC or DC drive motor is available Various Models - maximum Capacity from 200 N to 50 kn Loading accuracy well within 1%, conforms to IS:1828 / BS:1610.
| MODEL | S-963 Table Model |
| Display | 3 ½ Digital LED |
| Detector | Photocell /Photodiode |
| Range | 0 to 1000 NTU |
| Resolution | 1 NTU |
| Accuracy | ±3% FS± 1digit |
| Sample System | 30 mm Clear Glass Test tubes |
| Light Source | 6V Tungsten Lamp |
| Power | 230V±10%, 50Hz AC |
| Dimensions | 265 X 230 X 125 mm |
| Accessories | Test tubes Set , Operation Manual and Dust Cover |
Automatic Calibration: LMPH meter is capable of calibrating up to 2 points using USA or NIST pH standard buffer. Press CAL key to enter calibration mode and immerse pH electrode into indicated calibration solution, press ENTER key and meter is automatically calibrated Auto-Buffer Recognition: During calibration, if the calibration solution does not match the meter's indicated value, an ERROR message is displayed View Electrode Slope: After calibration, the percentage slope of the electrode is displayed before the meter returns to measurement mode. Per the slope value, you decides whether to change the pH electrode Automatic Temperature Compensation: Using the supplied temperature probe, the temperature value is displayed on the screen. The meter provides manual or automatic temperature compensation mode for optimum accuracy under variable temperature conditions
Gained by the years of experience in this domain, we are able to come up with high performance and reliable range of Zoom Stereo Microscope. These offered products are is widely used in the various industries for various magnification application and perform reliable performance. Features: Cost-effective Highly durable Optimality High performance Seamless finish Trinocular Observation Head: Siedentopf observation head inclined at 45 Diopter adjustment ring on both ocular tube Interpupillary distance from 55mm to 75mm Specifications: Eyepiece: Wide field eyepieces 10X (paired) fov 22mm Magnification Range: 6.2X to 50X Working Distance: 115mm

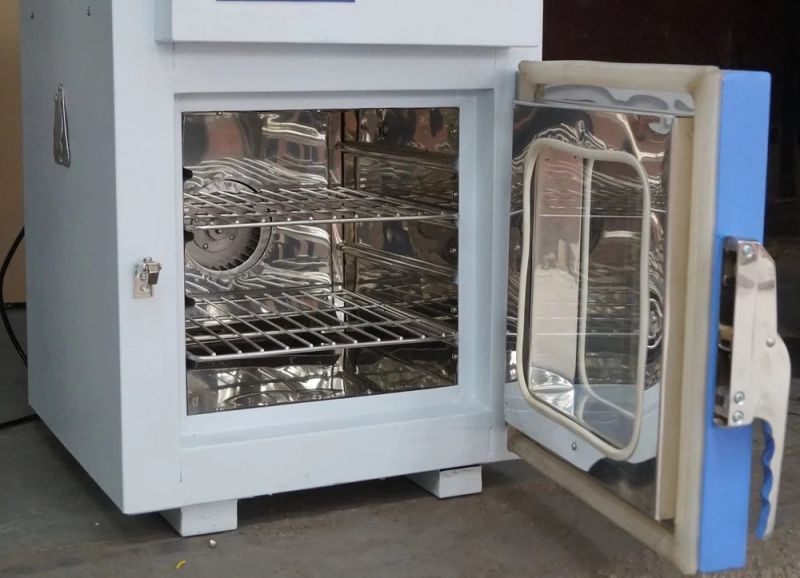

| External | Powder coated mild steel sheet |
| Heater | Tubular air heaters |
| Temperature range | Ambient 5°c to 250°c |
| Temperature accuracy | ±2.0°c at 150°c |
| Temperature uniformity | ±3.0°c at 150°c |
| Temperature sensor | Fe-k thermocouple |
| Display | Digital led with set value (sv) & process value(pv) |
| Controller | Microprocessor based pid digital temperature indicator-cum-controller with an in-built digital timer to control the temperature from ambient +5°c to 250°c. Once the unit is switched ‘on’ heating Starts automatically and once the set/desired value is achieved the in built automatic digital minute timer starts automatically. Once this set time period is over the heaters are switched “off” automatically And the unit sounds a buzzer, thus alerting the user that process is complete. |
| Circulation | Heavy forced air circulation by strong & reliable axial flow fans for cross flow circulation |
| Insulation | High grade mineral wool |
| Trays | Aluminum {stainless steel (ss-304) trays optional on request} |
| Drip tray | Made of crc duly painted at base (1no.) |
| Door packing | Asbestos packing door |
| Safety device | Over temperature and over current protection |
| Power supply | 220/230v or 400/430v, 3 phase a.c. Supply |
|
Type |
SE-1000DT |
|
Test force |
10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) |
|
Rulers |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2 |
|
Minimum measurement unit |
0.25μm |
|
Measuring the hardness range |
1HV-4000HV |
|
Hardness value read |
Digital LCD |
|
Total magnification |
100X (observed), 400X (measurement) (Expandable up to 200X or 600X) |
|
Loading mode |
FULLY AUTOMATIC (loading, dwell, unloading) |
|
Holding Time |
1-99 seconds |
|
The objective lens and the press head switch |
Manual Turret |
|
Specimen allows a maximum height |
85mm |
|
Indenter center to wall distance |
110mm |
|
Instrument Size |
405 × 290 × 480mm (L × W × H) |
|
Instrument Weight |
45kg |
|
Light source |
LED cold light source (continuous 24-hour use life of up to 100,000 hours) |
|
Power supply |
110V/220V + 5%, 50/60 Hz |
|
XY table |
Dimensions: 100 × 100 mm, the largest mobile: 25 × 25mm Minimum reading: 0.01mm (Optional digital XY table, LCD digital display) |
|
Data Output |
Built-in printer (hardness values, maximum and minimum test time, the number of tests, the average) Built-in RS-232 interface |
|
Implementation of standards |
GB/T4340.2 national standards, JJG151 VRof |
|
Standard fittings, accessories |
10X eyepiece micrometer a Vickers indenter a 10X and 40X objective lens of each one, and two standard hardness block, XY table, flat fixture, sheet fixtures, small parts jig a leveling screw four a bubble level, the power cord is a dust cover a manual, hardness conversion tables, cert |
Features: Measurement performance; Optimized pulse shaping, automated transmission settings for optimum performance and a range of new, more powerful transducers ensure accurate, stable measurements. Integrated waveform display; Allows analysis of the received signal and manual triggering directly on the instrument. On-line data acquisition; Full remote control of all transmission parameters, data logging function and functionality that turns your PC into an oscilloscope. USB interface and data analysis software; Data analysis and export to third party programs. Open interface; Control Pundit Lab using third party software such as Lab VIEW
| Constructions | Industrial grade mica clad wooden board |
| Table | Stainless steel sheet table of ss-304 grade |
| Per Filters | Washable pre-filter unit |
| HEPA Filters | Glass pleated non woven fabric filter Having 99.99% efficiency 0.3 micro particles size. |
| Air Flow | Unidirectional. |
| Blower Assembly | Centrifugal lubricated bearing type ISI marked assembly |
| Illumination | Fluorescent light illumination greater than 800 lux on work table |
| Noise level | Noise level less than 54 db |
| Add on features | Gas/air/vacuum line cock |
| Power Requirements | 500 watts – 750 watts (Model specific) |
| Nominal voltage | 220-230 Volts |
| Frequency | 50 Hz Single Phase |
| Constructions | Class II |
| Cleanliness (Class) | 90 ft/min +/- 20 feet |
| Construction | Industrial grade mica clad wooden board/M.S./S.S. |
| Table | Stainless steel sheet table of ss-304 grade |
| Per Filters | Washable pre-filter unit |
| HEPA Filters | Glass pleated non woven fabric filter having 99.97% Efficiency 0.3 micro particles size. |
| Air Flow | Unidirectional. |
| Blower Assembly | Centrifugal lubricated bearing type ISI marked assembly |
| Illumination | Fluorescent light illumination greater than 800 lux on work table |
| Control Panel | Membrane type soft touch key pad |
| Noise level | Noise level less than 60db |
| Add on features | Gas/air/vacuum line cock |
| Power Requirements | 500 watts – 750 watts (Model specific) |
| Nominal voltage | 220-230 Volts |
| Frequency | 50 Hz Single Phase |
