Mandelia Insulation & Transmission Co.

BBD Bag, Kolkata, West Bengal

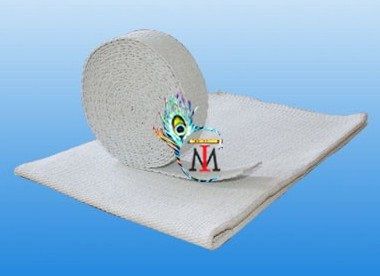

Asbestos Cloth & Tape By Asbestos & Non-Asbestos Heat Insulation Products MAP Brand Asbestos Cloth & Tape are weaved from superior grade long "chrysotile " asbestos fibres. These are widely used for insulation purposes in various industries. It is also available in braidings with wires, such as copper or steel, polyester fiber. This construction strengthens its ability to withstand harsh working environments.

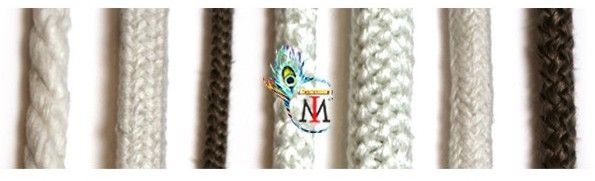

Ceramic Fiber Rope By Asbestos & Non-Asbestos Heat Insulation Products MAP Brand Ceramic Fibre Braided Rope is manufactured from superior quality Ceramic Fibre Yarn, braided cover on cover or cover on core to form a solid packing. The Ceramic Yarn used in the manufacturing of this rope comprises of high temperature resistance inorganic refractory oxides of mainly alumina & silica. It shows excellent thermal insulation properties and low Loss on Ignition thus making it suitable for caulking and general thermal insulation application. The Ceramic Yarn is reinforced with a carrier yarn of ASTM grade E-class filament for added tensile strength. Also Available: Ceramic Fibre Braided Rope Impregnated with Special Graphite for better heat dissipation. Ceramic Fibre Braided Rope Impregnated with a, high temperature resistant, Mineral Emulsion that acts as an Excellent binder & is flame retardant, thus increasing the thermal & flame resistance capability of the rope. Ceramic Fibre Braided Rope Impregnated with PTFE dispersion for low pressure dynamic applications. Ceramic Fibre Braided Rope reinforced with Stainless Steel Wire, as carrier for better resistance to temperature and pressure. Ceramic Fibre Braided Rope reinforced with Inconel Wire, as carrier for better resistance to temperature and pressure.

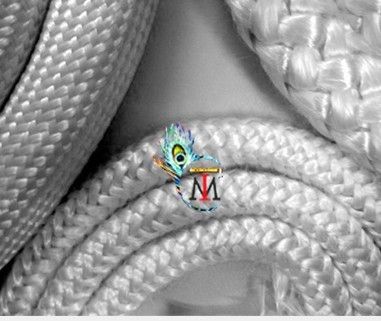

Fiberglass Rope By Asbestos & Non-Asbestos Heat Insulation Products MAP Brand Fiberglass Rope is braided from texturize fiberglass yarn to form a solid packing. The rope has a smooth textured finish, thus, reducing skin irritation which is a major drawback with other Fiberglass Rope available in the market. The Glass Fiber Ropes are also available with Metal Wire inserts, graphite based dispersion and with impregnation of mineral emulsion.

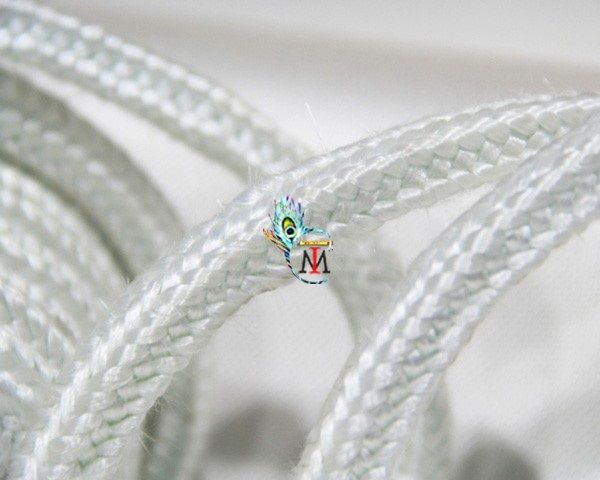

Silica Fiber Rope By Asbestos & Non-Asbestos Heat Insulation Products MAP Brand Silica Fiber Rope is braided from a smooth textured Silica Fiber Yarn, comprising > 96% pure SiO2 to form a solid packing. The silica fiber packing exhibits outstanding thermal insulation properties and shows excellent resistance to flame and spark. This packing does not shrink in live heat and retains longevity even at continuous exposure to elevated temperature, owing to its low LOI. The packing is non-toxic and & non-health hazardous in nature and does not cause any skin irritation even on continuous exposure.

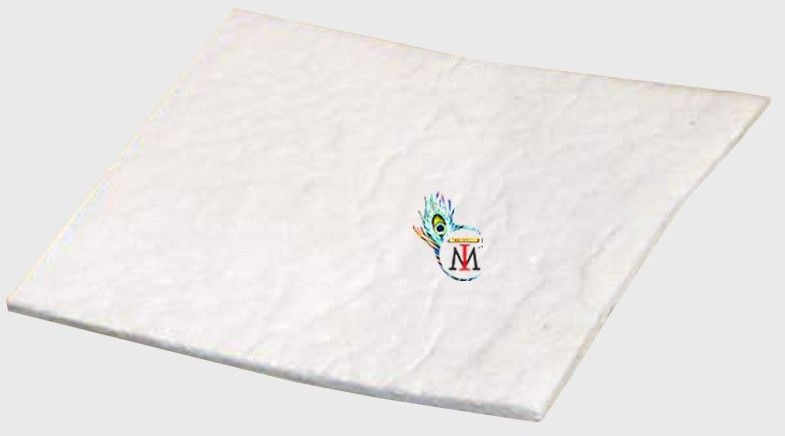

Ceramic Fiber Paper (MI-HICERA) By Asbestos & Non-Asbestos Heat Insulation Products MI-HICERA is Ceramic Fiber Paper, which is manufactured from Ceramic Bulk Fiber comprising high-temperature resistant inorganic refractory oxides of Alumina & Silica. The Ceramic Paper is manufactured in a very systematic method involving various processes. The product contains a small percentage of organic material to give it an extra ordinary pliability. Ceramic Fiber Paper features low thermal conductivity, excellent thermal shock stability, and chemical corrosion resistance. It exhibits excellent non-wetting characteristics i.e., it is unaffected by incidental spill of oil & water and its thermal and physical properties restored after drying. The Ceramic Paper, due to its inherent characteristics, it the right choice for applications requiring direct contact with molten Aluminum & Zinc.

Natural/Synthetic Rubber Sheet By Industrial Rubber Sheets Mandelia Transmission Natural Rubber Sheet is an excellent general purpose rubber which makes it suitable for almost all general as well as most dynamic applications. The sheet offers good mechanical properties like high resilience, low compression set, high resistance to cut, tear & abrasion etc. Natural Rubber Sheet also offer resistance to many acids, alkalis & salts. When compounded especially , NR also has excellent electrical properties.

Abrasion Resistant Shot Blasting Rubber Sheet By Industrial Rubber Sheets Mandelia Transmission Abrasion Resistant Sheets are Premium NR Grade Sheets for high abrasion, impact & corrosion resistance. The sheets are extremely flexible & durable, providing a high tear strength & excellent resistance. The outstanding properties like excellent resistance to cut, tear makes it more suitable for high impact & wear application.

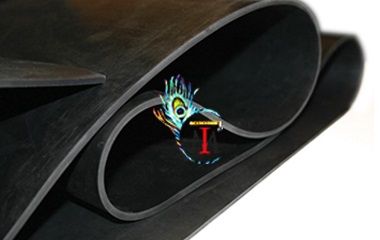

Nitrile Rubber Sheet By Industrial Rubber Sheets Mandelia Transmission Nitrile Rubber Sheet are designed to provide extraordinary fuel & oil resistance with high physical properties for longer service period in demanding applications. We also provide NBR Rubber Sheets in accordance with BS 2751 standard on requirement.

Mandelia Transmission Silicone Rubber Sheet stays constant at very high temperature & maintain flexibility even at very low temperature. It has excellent outstanding resistance to oxidation, ozone & weathering.

Mandelia Transmission Food Grade Sheets are designed for edible industry application that requires non-toxic, tasteless & smell free solution. We offers food grade sheeting in different polymers depending on the application requirements.

Mandelia Transmission Sponge Sheets are compounded of Natural Rubber used in general sealing applications with limited cycles of compression.

Fluoro Elastomer rubber or Viton is based on hexa fluoropropylene vinyl-idene fluoride. The polymer has high resistance to heat with a temperature range of -40 C to + 250 C. It has also possesses a good flame resistance and is usually self-extinguishing. APPLICATIONS FKMs have excellent resistance to oxygen, ozone and natural weathering and also have outstanding resistance to compression, especially at elevated temperatures. Its resistance to most solvents and chemicals give long service life as it has excellent resistance against hydrocarbons, aliphatic, aromatic and chlorinated chemicals and resistance to acids and alkalis including oxidants. SPECIFIC GRAVITY 1.85 TO 1.95 g/cc HARDNESS 70 +/-5 Shore A TENSILE STRENGTH 5.0 to 6.0 MPa ELONGATION 200% COLOR Black TEMPERATURE -30 to +250 Degree C

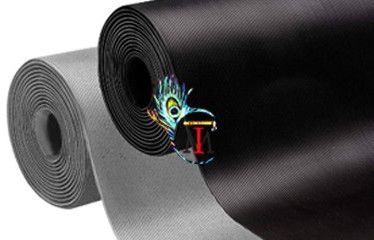

The Fine Rib Mat has an anti-slip ribbed surface one side and a fine cloth impression pattern on the reverse. It is ideally suited for loose lay applications for floors, walkways, runners, loading areas, workbenches and general-purpose areas. Solves slip hazards quickly in and around aprons, ramps and more. The Fine Rib Mat can be glued directly over existing flooring in most cases or installed as a new floor. The rubber flutes act as a scraper to trap debris, dirt and provide grip at the same time. These mats are easily cleaned by reverse rolling. APPLICATIONS General Purpose, Oil & Fire Resistant, High Traffic Area, Outdoor Use, Electrical Insulation SPECIFIC GRAVITY 1.2 To 1.5 g/cc HARDNESS 60 To 70 Shore A TENSILE STRENGTH 3.5 To 12.5 Mpa ELONGATION 250 To 350% COLOR Black TEMPERATURE -30 To +70 Degree C

Electrical Insulation Mats are generally used for covering the floor below the control panels. These Insulating Mats are manufactured using elastomer (latex, rubber and elastomericcompounds that might be natural, synthetic or mixture of both) all along with antiskid aberrations on the top to avoid slippage and smooth, lower surface. Our High Voltage Mats are manufactured as per latest Indian Standard and have been successfully tested and approved by DGS&D, ERDA, CPRI, NTH and other NABL accredited labs.

Mandelia Transmission Product is a premium brand for Electrical Insulating Rubber Mats according to the IS 5424:1969 Standard. Electrical Rubber Mats are highly recommended for the safety of workmen against any electrical hazard or immensely economical & suitable for general usage too. The material thats utilized in our insulating rubber mattings are made of natural rubber that has good mechanical properties and electrical resistance. They are available in standard size of 1mx2m with Fluted or Checkered design.

Fabricated in conformity with the defined industry standards, MAP Brand roll brake liners are widely acknowledged for their features like high tensile strength, excellent physical strength cross braking, heat resistant and rivet holding. It is manufactured from High Tenacity Asbestos Yarn reinforced with Brass Wire both side grinded.

Gland Packing provides a dynamic seal for a rod, shaft or stem via a housing or gland that is packed with resilient or semi-resilient material, thus providing a localized contact area, which offers a physical barrier to leakage. Style 1100 (325 Degree C) Lubricated and graphite general purpose asbestos packing for Glands for medium pressure conditions conforming to IS Specification 4687 & DGS&D Specification. Style 1200 (350 Degree C) Incorporated with white metal wire for low friction and greater mechanical durability. Suitable for rotary shafts with peripheral speeds upto 550 m./min. Recommended for steam, hot water, weak acids and alkalis. Style 1300 (500 Degree C) Brass wire reinforced asbestos yarn packing. Specially suited to high speed rotary and reciprocating shafts even at higher temperature and pressure. Incorporation of Brass wire improves its strength and anti-friction properties. It is recommended for saturated and super heated steam, hot water, air, gases, oils, steam, expansion glands, rotary and reciprocating equipments. Style 1490 (325 Degree C) Special grade of asbestos DUPLEX BRAID packing suitably lubricated and treated with graphite to withstand caustic liquors, including caustic potash, soda, lime, ammonia and sulphide. An ideal packing for paper mill application pH 4-12. Style 1800 (490 Degree C) Non-metallic asbestos lubricated and graphite packing for high pressure saturated super heated steam conforming to IS Specification 4687 & DGS&D Specification. Style 1910 (540 Degree C) A closely braided high content asbestos yarn packing, non-metallic, lubricated with special heat resisting dry lubricant. Specially recommended for high pressure super-heated steam services. Excellent soft packing for valve glands, gauge glass fittings, turbines, boilers and similar applications. Style 1916 (815 Degree C) Braided from high grade asbestos yarn suitably lubricated and reinforced with stainless steel wire. This is an ideal choice for high temperature val

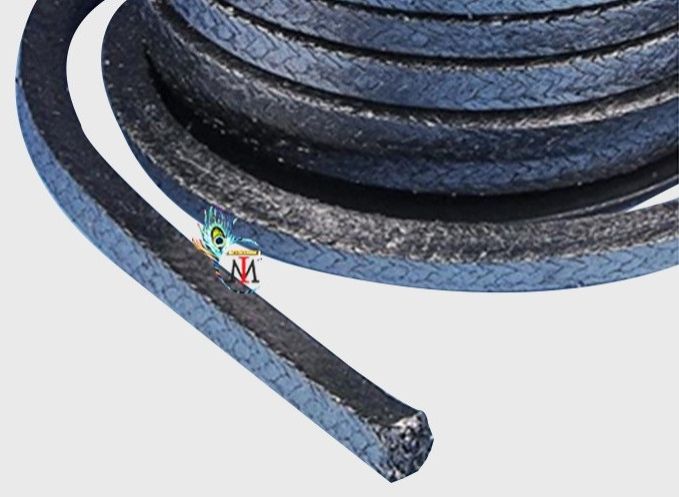

Style MI-3010 is braided from superior grade Ceramic Fiber yarn reinforced with Inconnel wire & impregnated with special lubricant enriched with High Carbon Graphite. This packing is resistant to very high temperature and pressure and is intended to be used for movable components as well. Impregnation of every thread before braiding results in a high performance packing. This packing is available in various sizes from 6 mm to 100 mm or above on request. The rope is available in round, square and rectangular cross-section, as per clients requirements.

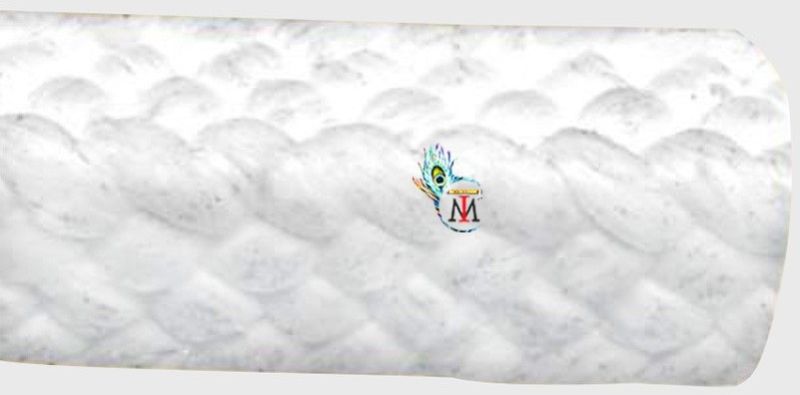

MI-3901 is interlocked braided from Pure PTFE Fiber yarns and prelubed with break-in lubricant and incorporated with PTFE based dispersion. The break-in lubricant ensures extra lubrication during the complete operational life and dispersion acts as blocking agents as well as anti-frictional additives. This packing is Non Toxic and Inert in nature, hence, does not contaminate the fluid media. It has low coefficient of friction, thus, ensuring trouble free operation for a longer period. It is a soft resilient packing with high dimensional strength and low maintenance cost.

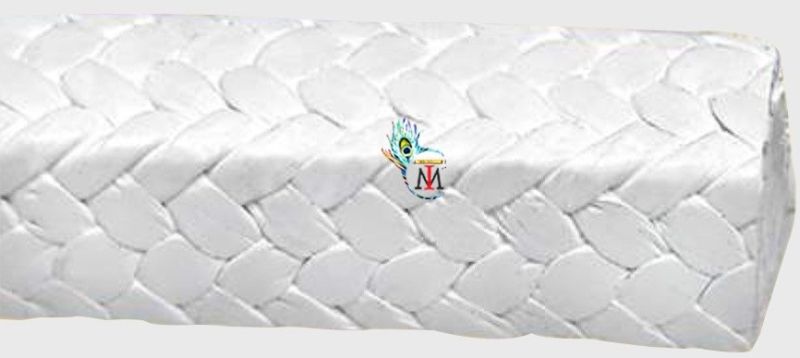

MI-3921 is interlocked braided from Dry Pure PTFE Fiber yarn without any lubricant or additives. It ensures safety & purity of the medium with no contamination of the fluid media. It serves as an excellent packing for Oxygen & Hydrogen services. This is a self lubricating packing with very low coefficient of friction and as such safeguards the parent equipments from erosion during operation. The packing needs very little gland adjustment after initial installation and is inert to almost all known chemicals except for some Molten Alkali Metals and Aquaregia.

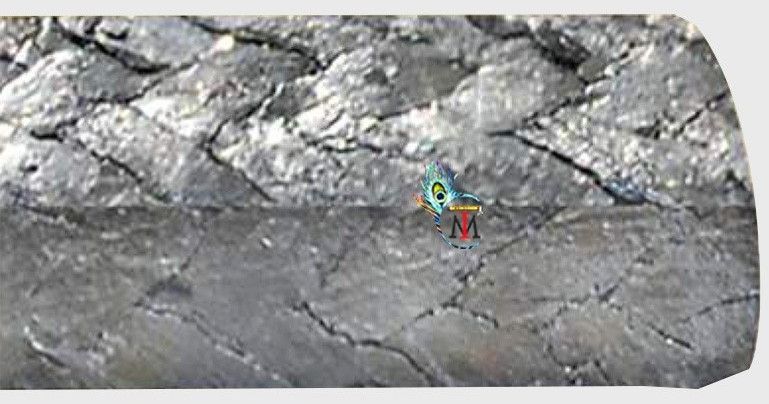

MI-3910 is a unique interlocked braided gland packing braided from premium grade Expanded Flexible Pure Graphite Yarn and incorporating sacrificial metal corrosion inhibitor to protect the shaft from galvanic corrosion. This packing exhibits self generating lubrication that accommodates & aids self-adjustment on tightening. It shows excellent chemical resistance capability and is highly anti-frictional, hence no fear of scoring of sleeves/plungers etc. It has excellent resistant to high temperature and even shows considerable resistance to flame for a brief period. The Graphite Yarn is reinforced with a Non Metallic carrier yarn for added strength. Also Available : MI-3910P - Expanded Graphite Non Metallic Packing with proprietary PTFE based dispersion. MI-3910H - Expanded Graphite Non Metallic Packing with proprietary graphite based HIGRAPH dispersion. SERVICE MEDIA & APPLICATIONS Suitable for Dryers, Reactors, Pumps and low pressure Valves handling Acids, Alkalies, Solvents, thermic Fluid, Petrochemical, Boiler feed Water, Condensate etc. TEMPERATURE -240 C to +650 C (+2700 C in Non Oxidizing Media) PRESSURE Static - 100 bar. Dynamic - 35 bar. PH RANGE 0 to 14
