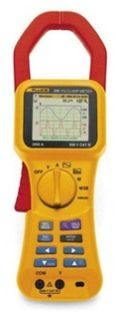

The Fluke 345 is more than an electric power meter. Combining the functions of a clamp meter, oscilloscope, data logger and digital power meter into one handy device, the Fluke 345 is ideal for working with variable frequency motor drives, high efficiency lighting and other loads using switching electronics. The multi-faceted Fluke 345 is packed with features such as a bright, color display to analyze the harmonic spectrum, a low-pass filter to remove high frequency noise and a high EMC immunity design, making the Fluke 345 power analyzer ideal for troubleshooting power quality on switching loads. The internal memory of this electric power meter enables long-term power quality logging for analysis of trends or intermittent problems. Additionally, the Hall Effect clamp meter design makes measurement of dc current possible without the need to break the circuit. Besides effectively performing basic tasks like measuring power and power factor, the Fluke 345 power meters offer the ease of use, portability and flexibility needed to resolve most power issues in commercial, industrial and residential settings. Setup and troubleshoot variable frequency drives and UPS systems Verify correct operation by measuring key power quality parameters Harmonics measurements Uncover harmonic issues that can damage or disrupt critical equipment Inrush capture Check start-up current where spurious resets or nuisance circuit breaker tripping occurs Load studies Verify electrical system capacity before adding loads For three phase applications the 1735 and 43- Series II products will provide the same type of results.

Buy Kyoritsu 400-750V AC/DC Digital Clamp Meter KEW-2003A online in India at wholesale rates. You can purchase Kyoritsu 400-750V AC/DC Digital Clamp Meter KEW-2003A of the finest quality and rest assured to get the best in terms of both durability and performance. If you are bothered about the Kyoritsu 400-750V AC/DC Digital Clamp Meter KEW-2003A prices, you can be totally sure to get the best rates as Industry buying brings you genuine Kyoritsu 400-750V AC/DC Digital Clamp Meter KEW-2003A rates and quality assured products only from the best of brands with exclusive brand discounts you wont find anywhere else. Procure Kyoritsu 400-750V AC/DC Digital Clamp Meter KEW-2003A today and avail the best offers on your purchase. Specification: AC Current Range: 400A/2000A. AC Current Accuracy: 400A: 1.5%rdg2dgt (50/60Hz), 3%rdg4dgt (40 500Hz), 5%rdg4dgt (500Hz-1kHz). 2000A: 1.5%rdg2dgt (50/60Hz), 3%rdg4dgt (40 500Hz), 5%rdg4dgt (500Hz-1kHz), 3%rdg2dgt (50/60Hz). Output: Recorder: DC400mV against AC/DC400A, DC200mV against AC/DC2000A.

Hioki clamp meters are best-in-class measuring devices incorporating Hiokis expertise in current sensing technology. The Hioki 3288 clamp multimeters are AC/DC current and voltage clamp meters that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires. CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage) Compact & Easy Multi-function clamp that simplifies equipment diagnosis: Besides AC/DC current measurement, it also contains DMM functions for voltage, resistance, and continuity checking.

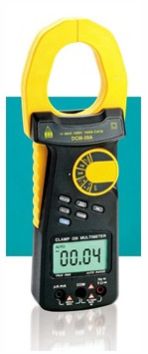

MOTWANEs Digital Clamp Meter DCM 39A & DCM 9930A comprises high precision, industrial grade, RMS, auto-ranging clamp meters with 3 digits display. Both the clamp meters can be used as multimeters with test leads for AC/DC measurements of up to 400 mA, along with measuring AC/DC voltage, resistance, frequency, capacitance, duty cycle, diode, continuity, etc. These clamp meters are provided with multiple safety features like a water-resistant front panel and fireproof heavy-duty ABS casing. It uses the Hall Effect sensor for measuring the current. The model DCM 39A measures AC/DC currents up to 1000A. The model DCM 9930A measures AC/DC currents up to 2000A. Application Generation, Transmission & Distribution Substation Process industries OEMs Railways Telecom Industries Service Industries Features Auto-ranging 3 digits (3999) LCD-display True RMS reading for ACV & ACA 2 in 1 clamp meter + Digital Multi meter Overload protection for all ranges Data hold feature with relative key facility Water resistance front panel, fireproof heavy-duty ABS casing Current sensor- Hall Effect Sensor Over range indication: OL is displayed Max conductor size is 60mm approx Power one 9V battery type (6F22)

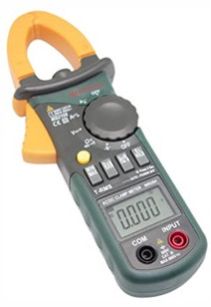

MS2108 is a versatile and invaluable tool for electricians, technicians, professionals and alike. You can use it to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, continuity and even diode test. This true RMS clamp meter has inrush current measurement, which is designed to capture inrush current accurately and , most importantly synchronously and provide readings that accurately depict what the circuit protector experiences. Technical Specifications AC Voltage: 660mV/6.6V/66V/600V DC Voltage: 660mV/6.6V/600 V AC Current: 66A/600A DC Current: 66A/600A Inrush Current: 66A/600A Resistance: 660/6.6/66K/660k/6.6mF/66mF Capacitance Range 9nF-90F Frequency (V): 600Hz/6.6kHz/10KHz Frequency (A): 600 Hz/1kHz Duty Cycle: 10%- 95% Relative Humidity < 80% RH Power 3 AAA Batteries 1.5 V

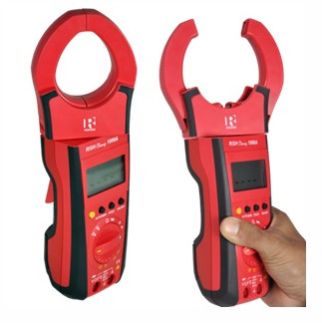

Product Features Measures following parameters AC&DC Voltageupto1000V AC & DC Current up to 1000A/400 A Inrush/Peak Value Measurement Active, Reactive and Apparent Power Horse Power Measurement kWh Measure up to49thHarmonics Phase Angle THD DF Power Factor Crest Factor LPF Mode for VFD Application Unique Design RISH POWER1000A/400A is a highly Clamp innovative design for features those increases safety and comfort of user. * Rotating clamp jaws facilitate the measurement at physically awkward positions, vertical bus bars, conductors placed at positions difficult to access. * Clamp jaws can be opened or closed with the trigger placed at bottom side away from the jaws. This allows the user to place his/her hand at safer distance from live conductor. This greatly reduces exposure of human beings to electrical shocks. * Location and design of trigger eliminates fatigues caused by single finger operation. It allows spreading the force required to open the jaws over more than one finger to ensure Comfortable operation. * Comfortable operation of push buttons and function selector switch, in adverse field conditions.

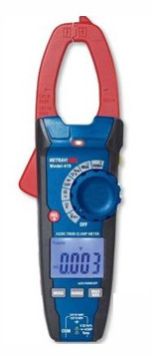

3-3/4 Digits Professional T-RMS AC/DC Clamp Meter, 4000 Counts, 1000V AC T-RMS/DC, 1000A AC T-RMS/DC, Auto Power Off, Non-Contact Voltage Detector, Flashlight, Data Hold, MAX-MIN Record, Relative Measurement, 100mF Capacitance, 100kHz Frequency, 40M Resistance, 1000C Temperature measurement using K type sensor, Continuity. Specifications: Professional T-RMS AC/DC Clamp Meter 4000 Counts, 3-3/4 Digits Backlit LCD Display Confirms to CAT-IV 600V, CAT-III 1000V, CE, IEC-61010-1 600V AC/DC Protection in all ranges 34 mm Clamp Jaw Dia Auto Power Off Non Contact Voltage Detector Flash light in the Jaw to access dark Areas Double Injection Housing, providing double insulation Data Hold, MAX-MIN Record, Relative Measurement AC Current (T-RMS): 400.0/1000A Accuracy: (2.5% + 8 digits) DC Current: 400.0/1000A Accuracy: (2.5% + 5 digits)

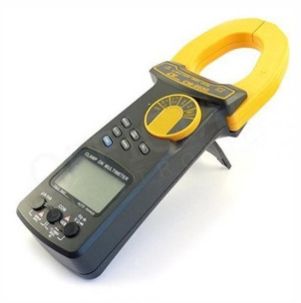

Product detailed description The Lutron CM-9930A is a digital clamp multi meter. Lutron CM 9930A measures AC / DC current and voltage, resistance, duty cycle, capacity, frequency. Offers True RMS, diode and continuity test, Relative measurement, Data Hold, auto-off, battery voltage measurement, zero setting, overload protection on all ranges, splash protection. We offer a wide selection of customized adapters (humidity adapter, exposure meter, EMF adapter, pressure adapter, anemometer, temperature adapter, IR adapter, and tachometer, high voltage probe). Max. Diameter of measured conductor is 51mm. Complies with IEC 1010-1 / Cat III 1000V. Ranges / resolution: UAC / DC: 400 mV / 0.1 mV (DC only); 4 V / 0.001 V; 40 V / 0.01 V; 400 V / 0.1 V; 1000 V / 1 V IAC / DC: (direct): 400 uA / 0.1 uA; 4000/1 uA; 40 / 0.01 mA; 400 mA / 0.1 mA IAC / DC: (clamp): 400 A / 0.1 A; 2000 A / 1 A R: 400 / 0.1 ; 4 k / 1 ; 40 k / 10 ; 400 k / 0.1 k; 4 M / 1 k; 40 M / 10 k F: 5 Hz / 0.001 Hz; 50 Hz / 0.01 Hz; 500 Hz / 0.1 Hz; 5 kHz / 1Hz; 50 kHz / 10 Hz; 100 kHz / 100 Hz C: 50 nF / 10 pF; 500 nF / 100 pF; 5 uF / 0.001 uF; 50 uF / 0.01 uF

Main features: Insulation Resistance Measurement Identify open and short circuits / loose connections in a winding coil Identify intertern shorts. Detect rotor bar problems without dismounting the rotor Inductance of the winding with respect to different positions for rotor for detecting blow holes or cracks in the rotor bars. Simple operation, accurate & quick assessment of motor condition. Fast Checks of On-Line Motors: EMC-25 is a portable diagnostic tool for Electrical Engineer and is used for quick on site checks of electric three-phase machines. A reduction in machine performance, such as inefficient operation or tripping of overloads, may indicate mechanical or electrical faults. If the fault is electrical the EMC-25 will immediately detect it, without having to dismantle the equipment. The EMC-25 may also be used to check quality and condition of motors which have been in storage before they are installed.

DIGITAL MOTOR CHECKER EMC-38 Main features: Insulation Resistance (IR) Measurement Identify open and short circuits / loose connections in a winding coil Identify interterm shorts. Detect rotor bar problems without dismounting the rotor Inductance of the winding with respect to different positions for rotor for detecting blow holes or cracks in the rotor bars. Simple operation, accurate & quick assessment of motor condition. Shock proofed rubber casing Low battery Indication Fast Checks of On-Line Motors: EMC-38 is a Digital portable diagnostic tool for Electrical Engineer and is used for quick on site checks of electric motor and other three phase machines. A reduction in machine performance, such as inefficient operation or tripping of overloads, may indicate mechanical or electrical faults. If the fault is electrical the EMC-38 will immediately defect it, without having to dismantle the equipment. The instruments has three separate operating modes to measure different types of faults like fully insulation, open circuits / loose connections, short circuits and rotor defects. Motor insulation is tested with a high voltage of 500V & 1000V DC supplied by the instrument. Mikado Electronics is the best Digital Motor Checker EMC 38 Supplier in Kolkata-India.

Features: Very handy Light Weight Insulation Resistance (IR) Measurement Identify open and short circuits / loose connections in a winding coil Identify interterm shorts Detect rotor bar problems without dismantling the rotor Inductance of the winding with respect to different positions for rotor for detecting blow holes or cracks in the rotor bars. Simple operation, accurate & quick assessment of motor condition. Low battery Indication PREDICTIVE MAINTENANCE: Regular testing can identify developing faults before a failure occurs. All measurement data can be trended for predictive maintenance condition monitoring. By making proactive repairs and eliminating unscheduled down- time, plant productivity is greatly improved. EMC-38A is a Digital portable diagnostic tool for Electrical Engineer and is used for quick on site checks of electric motor and other three phase machines. A reduction in machine performance, such as inefficient operation or tripping of overloads, may indicate mechanical or electrical faults. If the fault is electrical the EMC-38A will immediately defect it, without having to dismantle the equipment. The instrument has three separate operating modes to measure different types of faults like fully insulation, open circuits / loose connections, short circuits, Ground faults and rotor defects. Motor insulation is tested with a high voltage of 500V & 1000V DC supplied by the instruments

Megger Insulation Tester MIT515 is a high-performance instrument designed for measuring insulation resistance in electrical equipment and systems. It is a handheld device that can measure insulation resistance up to 10 T (10 teraohms), with selectable test voltages of 500 V, 1000 V, 2500 V, and 5000 V DC. MIT515 features a large, backlit display with easy-to-navigate menus and an intuitive user interface. It also has a built-in memory that can store up to 1000 test results, which can be downloaded to a computer for further analysis using the supplied software. The device has a rugged, waterproof case with an IP65 rating, which makes it suitable for use in harsh industrial environments. It also comes with a variety of accessories, including test leads, crocodile clips, and a carrying case. People also such us in online as Megger Insulation Tester MIT515 Supplier in Kolkata, West Bengal, Megger Insulation Tester MIT515 suppliers in all over India, Megger Insulation Tester MIT515 suppliers in Odisha, Megger Insulation Tester MIT515 suppliers in Jharkhand, Megger Insulation Tester MIT515 suppliers in Bihar & all over Idia You can find the Megger Insulation Tester MIT515 on various online retailers, such as Amazon or eBay, or on the official Megger website. Additionally, you can contact Megger directly for a list of authorized distributors and suppliers in your region. OVERVIEW Measures up to 10 T Selectable test voltage from 250 to 5000 V PI, DAR, DD test Improved productivity operate from line power/mains if battery dead Li ion battery extended capacity, rapid charge CATIV 600 V safety rating Offering CAT IV, the MIT515 is the simplest of Meggers new range of small light 5 kV insulation resistance testers for the testing and maintenance of high voltage electrical equipment. It is both smaller and lighter than its predecessor, making it even easier to carry and store. We are the prominent Megger Insulation Tester MIT515 Supplier in Kolkata, West Benga

OTS-A series is a fully automatic transformer oil BDV test kit designed with advanced technologies to measure the electrical breakdown strength of insulating oil. OTS-A has a quick sensing ability to measure accurate breakdown voltage. The OTS-A series is compliant with national & international standards for test sequences and also has user friendly customized test sequences. The series comes with a large LCD display with a touchpad for easy operations. It is provided with internal memory to store up to 100 tests & an inbuilt thermal printer for on-site report printing. As for safety, our transformer oil testing machine series has an open ground detection feature to avoid damage. The molded oil test vessel is suitable to test minerals, ester & synthetic oils and comes with an adjustable electrode gap setting to conduct tests as per standards. The portable voltage checker is useful for onsite calibration and verification. Ask for a quote to know the Motwane transformer oil BDV test kit price OTS-A series has a Bluetooth connectivity module with MOT-WARE mobile app for remote access to testing data & storage in the cloud for further analysis & record purposes.

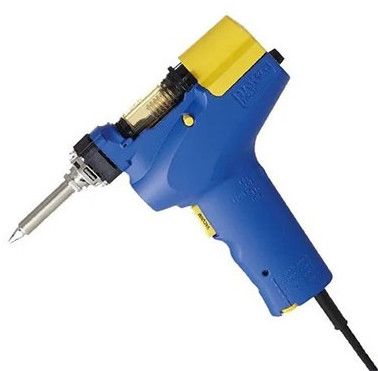

The Hakko Disordering Gun FR-301 is a very compact disordering tool. It is used to remove solders. Good heat recovery rate enables lead free disordering. It has power ON/OFF switch on the handle. It has an excellent nozzle replacement system. Cleaning and replacing the nozzle is possible even when the unit is hot. We are leading Hakko Disordering Gun FR-301 Supplier in Kolkata, West Bengal, Odisha, Jharkhand, Bihar & India.
