The Trioblock Counter Pressure Bottling Machine is designed for filling aerated water, soft drink, and aerated juices. The Trioblock Counter Pressure Bottling Machine is controlled through touch screen PLC, which controls the entire operation sequence such as no bottle no rinse, no fill, no cap, etc.

We take immense pleasure in offering economical Packaged Drinking Water Treatment System. At the company, Water Treatment System are exclusively designed and engineered to meet the clients unique requirements. We are regarded among the top Water Treatment System Manufacturers, Suppliers, and Exporters in India. We offer Water Treatment System at reasonable prices. Suitable For

• Packaged Drinking Water
• Packaged Bottle Water
• Natural Mineral Water
• Carbonated Soft Drinks, Juices & Other Packaged Drinks
• Other Products in Food & Beverage Sector

we are offering bopp labeling machine. we take immense pleasure in offering bopp labeling machine in india and abroad. the high quality bopp labeling machine is low in power consumption and is extremely efficient.

The Trioblock Gravity Bottling Machine is designed for filling hot juices, water, wine, and liquor. The machine is controlled through touch screen PLC which controls the entire operation sequence. Also, the inbuilt temperature sensing ensures that the beverage is not filled below the set filling temperature. Automatic flow control valve ensures that the excess beverage flows back to overflow holding tank. SpecificationsApplicationFor Soft drink & BearsConfiguration9 x 9 x 312 x 12 x 415 x 15 x 524 x 24 x 630 x 30 x 830 x 40 x 1040 x 50 x 15Capacity (for 500 ml)366075120150200250ApplicationFor mineral water, JuicesCapacity (for 1000 ml)406075120150200250

We are offering cip system. the company offers high quality cip system or cleaning in place system. Cip system is used to clean product handling equipment, interconnecting pipes & fittings, etc. To maintain hygiene and sanitary standards. Cip system is available in different types depending upon the number of cleaning stages.

Types available

• tank cip system
• tank cip system

Features

• fully automatic plc controlled
• temperature interlocking with plc
• on board programming
• display for man & machine interface
• skid mounted modules available
• heating through phe
• different temperature maintained using steam control valve on line

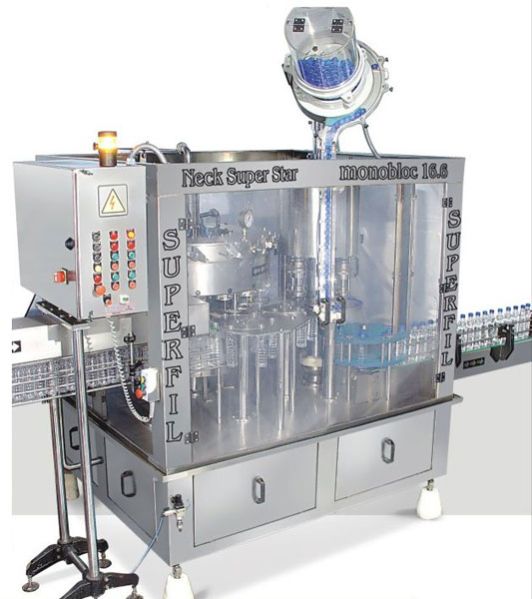

The Monoblock Gravity Bottling Machine is suitable to fill and cap Water, Juice, Liquor, etc. In the Monoblock Gravity Bottling Machine, filling is carried out by simple fall. Once the pre-set filling level is achieved, the product in excess is recollected to the filling tank. In case the Monoblock Gravity Bottling Machine has to treat PET/PE/HDPE bottles, the filler can be equipped with a neck holding system. SpecificationsApplicationFor Soft drink & BearsConfiguration9 x 312 x 415 x 524 x 630 x 840 x 1050 x 15Capacity (for 500 ml)365065100150240300ApplicationFor mineral water, JuicesCapacity (for 1000 ml)366075120150200250ApplicationFor Wine &LiquorVaccum (Capacity 750 ml)406075120150200240

We are offering bopp labeling machine. We take immense pleasure in offering bopp labeling machine in india and abroad. The high quality bopp labeling machine is low in power consumption and is extremely efficient.

We are a prominent Manufacturer, Exporter and Supplier of Carbonated Beverage Mixing Machine. The Mixomatic units are designed for the production of soft drinks containing Carbon Dioxide. In this process, water is deaerated (optional) under a high vacuum. Deaerated water and concentrated syrup is mixed (ready syrup) in a tank and the carbon dioxide is mixed homogeneously with ready syrup in a multi stage high pressure pump. Moreover, the Carbonated Beverage Mixing Machine is available in different specifications to meet the diverse requirements of the clients. Operating Procedure

• Degassing of Product Water
• Mixing
• Cooling
• Carbonation
• CIP

Salient Features

• Direct Control of Brix rather than Ratio
• The Brix is directly controlled using mass flow meter for measurement, for any deviation in the set point & achieved point the syrup flow is controlled to achieve in terms of brix required. Controlled Injection of CO2 in terms of gm/litre. The Co, is injected in gms/litre. For any change in the flow rate of beverage the amount of CO, to be injected changes automatically. The change in line pressure of CO2 is compensated automatically, with in the set limit of CO, pressure
• Different CO2 pressure settings Injection pressure of CO, & buffer tank pressure can be set differently
• No manifold & hand valves for different mode of operation. There is no requirement of any change over manifold & hand operated valves for running the machine indifferent modes. (like CIP, Discharge, Production). Once the mode of operation of machine is selected, the valve changes their position as per the mode requirement
• Man Machine interface: The top of end communication between operator & machine. Complete alarm history. Trends can be created & saved for production

Additional Benefits

• Replacement hand operated flow control valve with electronic control
• Remote operating Interface of the machine. The machine can be operated & controlled in full respect sitting in the office itself
• Customized recipe module with real time trends
• Real time trends stored on hard disk for analysis purpose
• Shift wise/day wise MIS reports for quantity produced, Mixer Usage, etc

.

We offer homogenizer, industrial homogenizer in india and abroad. Homogenizer comprises of a high pressure piston pump followed by a homogenizing valve, in which the treated product is homogenized. The company is counted among the top homogenizer manufacturers, suppliers, and exporters. We offer homogenizer at affordable prices. specifications

• capacities : up to 10000 l/h
• maximum pressure : 600 bar

Our state-of-the-art infrastructure enables us in manufacturing high quality Stainless Steel Tanks. Our range of Stainless Steel Tanks includes Stainless Steel Mixing Vessels, Storage Tanks, Silos, Trolleys, etc. in different capacities for varied applications as per GMP. The company uses 3M tools for the complete fabrication and finishing of the Stainless Steel Tanks. We employ certified TIG welders to ensure perfect welding finish. All the vessels are tested for their pressure-withstanding capabilities. The materials are tested and confirmed for their quality specifications before being taken up for fabrication. Pre-finished sheets are also used in Stainless Steel Tanks depending upon the customers requirements.

Our Soda Carbonator is designed with the latest technology. The Soda Carbonator is used in the manufacturing setup for mixing CO2 gas in soda other aerated beverages. PLC is used to control the pressure and liquid level in the Soda Carbonator. The Soda Carbonator features an alarm, which activates in case of any abnormality and the machine stops automatically. With stable performance and high efficiency, Soda Carbonator is also easy to operate.
