Comcorde Medical (M) Sdn. Bhd.

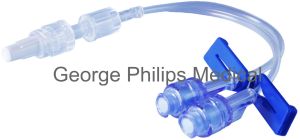

Made from Medical Grade Non-Toxic compound Small size (23mm length, 11mm wide) Priming volume less than 0.1ml Flow rate not less than 250mlmin Clear casing Provides safety for health care workers and patients Luer activated Latex Free Needle Free valve for easy swab Male luer lock connector Individually pressure tested at 2 bar 100% Leak proof 100% no blockage Individually packed, sterilized by E.T.O

Clinical Indication: Short Term Anesthesia Machine End Device Clear Casing Electrostatic Media 22M 15F-15M 22F ISO connectors Available with or without gas sampling port Compressible Volume: 47m Minimum Tidal Volume: 200ml Resistance to flow @ 60 LPM: 1.m mbar Dead Space: 47 ml Weight: 34g Filtration Efficiency: 99.999% Efficiency

Clinical Indication: Short Term Anesthesia Machine End Device Clear Casing Electrostatic Media 22M 15F-15M 22F ISO connectors Available with or without gas sampling port Compressible Volume: 47m Minimum Tidal Volume: 200ml Resistance to flow @ 60 LPM: 293pa Dead Space: 47 ml Weight: 34g HME material: Polyurethane Foam treated with Calcium Chloride Filtration Efficiency: 99.999% Efficiency

Clinical Indication: Short Term Anesthesia Machine End Device Clear Casing Electrostatic Media 22M 15F-15M ISO connectors Resistance to flow @ 15 LPM: 70pa Dead Space: 29 ml Weight: 18g Filtration Efficiency: 99.999% Efficiency

Made from non-toxic medical grade PP compound Sampling port with female luer lock fitting Available in collapsible or kink free elastic non-collapsible tube Customizable fitting rear (22FM, 15FM) Elbow with 22M15F ISO fitting Individually packed Available sterilized by E.T.O.

Made from non-toxic medical grade PP compound Natural color PP With gas sampling port Light weight 22M 15F-15M ISO connectors Individually packed

Made from Medical Grade Non-Toxic PVC compound Outer Diameter (OD): 4mm Internal Diameter (ID): 3mm Tubing length at 4cm, 5cm (female) and 6cm (male) Luer activated Latex Free Needle Free valve for easy swab Slide clamp for short term interruption of infusion Individually pressure tested at 2 bar Available in dual layer PVC Free Fluid Path (dual layer) 100% Leak proof 100% no blockage Individually packed, sterilized by E.T.O

Made from Medical Grade Non-Toxic PVC compound Outer Diameter (OD): 4mm Internal Diameter (ID): 3mm Measured volume IV administration set with automatic shutoff valve Piercing spike with bacteria-proof air vent Bacteria-proof venting Flexible lower part of drip chamber Dosage container 150 ml, with fine graduation and injection site Micro dropper, 60 drops = 1 ml ± 0.1 ml (aqua dist.) 15 µm fluid filter Two non precision roller clamps with piercing-spike covering Latex Free, Needle Free Y-injection site Available in assorted length Available in dual layer PVC Free Fluid Path (dual layer) 100% Leak proof 100% no blockage Individually packed, sterilized by E.T.O

Made from non-toxic medical grade PP compound Natural color PP Available in various configurations Available with bacterialviral filter or HMEF 22M 15F-15M ISO connectors Individually packed Can be customizable to customers preference

Made from non-toxic medical grade PP compound Natural color PP Available in various configurations Available with bacterialviral filter or HMEF 22M 15F-15M ISO connectors Individually packed Can be customizable to customers preference
