OEM service is available for below specifications: 8-30 mesh  0.13-0.80 mm wire  200-2, 700 mm width 1-1, 000 mm length

OEM is available for below specification:    Specification: 12-20 mesh  0.18-0.23 mm Wire  200-2, 700 mm width  1-1, 000 m length    Contact us for detailes at: info@jswireweaving.com

OEM service is available for below specification: Substrate Mesh Material: Q195, 5154A, SS316 Type of Coating: Oil resistance, Weather resistance,   Typical Specification: 18x14/0.18,   18x14/0.16, 12x10/0.25, 22x10/0.16, 17x15/0.21 12/0.35, 11/0.7 etc.  Width: 200-1, 500 mm Length:≤1, 000 m Application: Hydralic filter, Air filter, Window screen mesh.

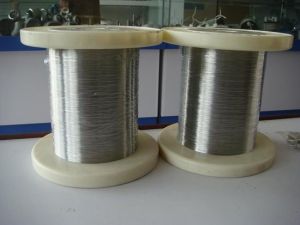

Stainless steel wire mesh also known as wire cloth or wire fabric, is woven from stainless steel wire. According to different weaving patterns, it can be divided into Plain weave, Twill weave, Plain dutch weave, Twill dutch weave, Reverse plain dutch weave, Reverse dutch twill weave, Herringbone, Five Heddle. Widely used for gas, liquid, solid filtration in chemical, petroleum, food, medicine industries etc, as well as other medium separation.   Basic information of Jiushen stainless steel wire mesh: Standards: ASTM E2016-2020-5000, ASTM E2814-2011 Weaving Pattern:Plain weave, Twill weave, Plain dutch weave, Twill dutch weave, Reverse plain dutch weave, Reverse dutch twill weave, Herringbone, Five Heddle Material: SUS / AISI 304, 304L, 316, 316L, 310 etc.   Advantages of stainless steel mesh:  Heat resistance, acid resistance, alkali resistance, corrosion resistance and wear resistance Application:  gas, liquid, solid filtration in chemical, petroleum, food, medicine industries etc, as well as other medium separation   OEM service is available from 1x1 mesh to 500x3600 mesh.

OEM service is available for below specification: 14 mesh to 250 mesh  0.04 to 0.45 mm wire

Stainless steel window screen is woven from stainless steel wire, which is more durable and much stronger than the standard insect screen. It allows superior airflow and meets the high standard of insect protection.The application is not limited to windows, doors & porches, but also can be used as supportive layer for filters, as well as used in livestock farms epidemic prevention, orchard planting protection & window screen projects etc.   Basic information of Jiushen stainless steel window screen: Standards: Q/EQl-40-2007 ASTM B117-09 ASTM E2016-15 Weaving Pattern: Plain weave selvaged edge/rough selvedge, cross ( skein) weave Material: SS 201, SS304, SS304L, SS316, SS316L   Benefits of stainless steel window screen: High mechanical protection performance Good toughness Corrosion resistance Outstanding durability Good ventilation, no shading & easy to clean   Application of stainless steel window screen: Windows, doors & porches Supportive layer for magnetic filters Livestock farm epidemic prevention, orchard planting protection Window screen projects etc.   Specification:   Mesh Wire Dia (mm) Width (mm) Length (m) Remarks 14x14 0.230       16x16 0.200 200-2700 1-1000 Length ≥ 400 mneeds to be stitched 17x15 0.200 18x16 0.230 18x17 0.200 20x18 0.180 20x20 0.200 20x20 0.150 24x22 0.150 24x22 0.130 25x22 0.165 8-30 mesh, 0.13-0.80 mm wire dia, all can be customized

Aluminum window screens are woven from aluminum-magnesium alloy wires, also known as "aluminum-magnesium alloy screens". The color of aluminum alloy window screen is silver white. Characterized by light weight, good toughness, corrosion resistance, high temperature resistance and long service life. It does not rust and become mouldy even in a humid environment. Widely used in residential and various constructions for window screen projects.   Basic information of Jiushen aluminum window screen: Standards: Q/EQl-40-2007  ASTM B117-09  ASTM E2016-15 Weaving Pattern: Plain Weaving selvaged edge/rough selvedge, cross ( skein) weave Material: 5154A(H39/H19)   Benefits of aluminum window screens: Light weight Good toughness Corrosion resistance High temperature resistance Long service life Do not rust and become mouldy Good ventilation, no shading & easy to clean   Application of aluminum window screens: Residential and various constructions for window screen projects.   Specification: Mesh Wire Dia (mm) Width (mm) Length (m) Remarks 14x14 0.360       18x1418x1518x16 0.210 200-2700 1-1000 Length ≥400 mneeds to be stitched 0.220 0.230 0.240 0.250 OEM is available

Product Brief Introduction: Epoxy coated wire mesh is referred to epoxy mesh. The manufacturing process of epoxy mesh is to use the principle of electrostatic spraying to absorb eco-friendly epoxy resin powder on the surface of the wire mesh woven from different metal wires. After a certain period of high temperature curing, the epoxy resin powder is melted and covered on the substrate. A dense protective layer is formed on the surface of the mesh. Epoxy powder is divided into indoor and outdoor types, and special powders can be customized and developed according to customer requirements. The substrate mesh usually includes low carbon steel mesh, aluminum alloy mesh and stainless steel mesh.   Epoxy mesh manufacturing standard: GB/T 17492-2019 Woven pattern: Plain wave rough edge / selvaged edge   Features of Epoxy Mesh: After epoxy coating, the interweaving point of the metal mesh is fixed, the warp and weft are vertical, the mesh holes is uniform, not easy to loose and deform, the support for the filter paper is strengthened, the mesh surface is soft, easy to fold and form; the coating thickness is uniform with even and consistent color.   Application and Categories of Epoxy Mesh: According to different Application, epoxy mesh can be divided into industrial epoxy mesh and civil epoxy mesh. Industrial epoxy mesh mainly refers to aluminum alloy epoxy mesh and low-carbon steel epoxy mesh, which are mainly used as the filter element support mesh of the filter, also known as hydraulic filter element protection mesh, hydraulic filter element metal mesh. Civil epoxy mesh mainly refers to stainless steel epoxy mesh, which is mainly used in high-end residential and commercial building as security window screens.   Advantages of Jiushen Epoxy Mesh: After coating, the mesh is square without deformation and the surface is flat with the maximum undulating height on the platform ≤10mm. The powder coating amount is controlled at 20-35g/㎡, with moderate interleaving points. The width of finished product can reach 1, 600mm.   The surface treatment powder adopts low temperature fast curing oil-resistant matting resin paint (160℃/90s) and low temperature curing weather-resistant matting polyester paint (160℃/90s). The powder has obtained RoHS and REACH certification.   It is resistant to oil immersion and corrosion. It can pass the detection of various brands of hydraulic oil media around the world at different temperatures and times. The coating surface has no change. It is suitable for special hydraulic filter products of high temperature and high pressure.   Weather corrosion resistance, according to ASTM B117-09 salt spray test standard, continuous test 96H coating surface unchanged, suitable for use in harsh environment air filter and outdoor environment.   Strong adhesion, can pass H grade pencil test, 1kg/50cm impact test, scratch test, anti-fatigue test. High bending resistance, can be folded through a steel rod with a radius of curvature of 1mm, no cracks on the surface   Industrial selected high-quality steel and wire drawing annealing process, combined with the new weaving process, the mesh surface is soft, and the elastic modulus is low. After coating, it’s easy to fold and shape. The warp and weft wires are firmly bonded after the product is processed and are not easy to fall off. The edges will not fall off after slitting and cutting. The adhesion force of the coating interlacing point can reach 0.7kg.   Specification: Substrate Mesh Material Coating Type Specification Width（mm） Length（m） Application Q195 Oil Resistance 18*14/0.18 20-1500 ≤1000 Hydralic Filter Q195 18*14/0.16 20-1500 ≤1000 Q195 12*10/0.25 20-1500 ≤1000 Q195 22*10/0.16 20-1500 ≤1000 5154A 18*14/0.21 20-1500 ≤1000 5154A Weather Resistance 17*15/0.21 20-1500 ≤1000 Air Filter 5154A Weather Resistance 18*15/0.28 20-1500 ≤200 Window Screen SS316 12/0.35 20-1500 ≤200 SS316 11/0.7 20-1500 ≤200 Specification, material, appearance color all can be customized

Stainless steel wire mesh also known as wire cloth or wire fabric, is woven from stainless steel wire. According to different weaving patterns, it can be divided into Plain weave, Twill weave, Plain dutch weave, Twill dutch weave, Reverse plain dutch weave, Reverse dutch twill weave, Herringbone, Five Heddle. Widely used for gas, liquid, solid filtration in chemical, petroleum, food, medicine industries etc, as well as other medium separation.   Basic information of Jiushen stainless steel wire mesh: Standards: ASTM E2016-2020-5000, ASTM E2814-2011 Weaving Pattern:Plain weave, Twill weave, Plain dutch weave, Twill dutch weave, Reverse plain dutch weave, Reverse dutch twill weave, Herringbone, Five Heddle Material: SUS / AISI 304, 304L, 316, 316L, 310 etc.   Advantages of stainless steel mesh: Heat resistance, acid resistance, alkali resistance, corrosion resistance and wear resistance Application: gas, liquid, solid filtration in chemical, petroleum, food, medicine industries etc, as well as other medium separation   Specification:   Stainless Steel Square Mesh Mesh/linear inch Wire Dia Width of Opening Open Area Inch mm Inch mm (%) 1x1 0.157 4.000 0.8400 21.40 71.0 2x2 0.118 2.500 0.3800 10.20 64.0 3x3 0.079 2.000 0.2500 6.40 58.0 4x4 0.063 1.600 0.1870 4.75 56.0 4x4 0.047 1.190 0.2030 5.16 65.9 5x5 0.055 1.400 0.1400 3.68 52.0 6x6 0.047 1.200 0.1200 3.03 51.0 8x8 0.043 1.100 0.0800 2.08 42.0 10x10 0.039 1.000 0.0600 1.54 36.0 10x10 0.020 0.510 0.0800 2.03 64.0 12x12 0.023 0.584 0.0600 1.52 51.8 12x12 0.020 0.508 0.0630 1.60 57.2 14x14 0.023 0.584 0.0480 1.22 45.2 14x14 0.020 0.508 0.0510 1.30 51.0 16x16 0.018 0.457 0.0445 1.13 50.7 18x18 0.017 0.432 0.0386 0.98 48.3 20x20 0.020 0.508 0.0300 0.76 36.0 20x20 0.016 0.406 0.0340 0.86 46.2 24x24 0.014 0.356 0.0277 0.70 44.2 30x30 0.013 0.330 0.0203 0.52 37.1 30x30 0.0120 0.305 0.0213 0.54 40.8 30x30 0.0090 0.2290 0.0243 0.6200 53.1 35x35 0.0110 0.2790 0.0176 0.4500 37.9 40x40 0.0100 0.2540 0.0150 0.3800 36.0 50x50 0.0090 0.2290 0.0110 0.2800 30.3 50x50 0.0080 0.2030 0.0120 0.3100 36.0 60x60 0.0075 0.1910 0.0092 0.2300 30.5 60x60 0.0070 0.1780 0.0097 0.2500 33.9 70x70 0.0065 0.1650 0.0078 0.2000 29.8 80x80 0.0065 0.1650 0.0060 0.1500 23.0 80x80 0.0055 0.1400 0.0070 0.1800 31.4 90x90 0.0050 0.1270 0.0061 0.1600 30.1 100x100 0.0045 0.1140 0.0055 0.1400 30.3 100x100 0.0040 0.1020 0.0060 0.1500 36.0 100x100 0.0035 0.0890 0.0065 0.1700 42.3 110x110 0.0040 0.1016 0.0051 0.1295 30.7 120x120 0.0037 0.0940 0.0046 0.1168 30.7 150x150 0.0026 0.0060 0.0041 0.1041 37.4 160x160 0.0025 0.0635 0.0038 0.0965 36.4 180x180 0.0023 0.0584 0.0033 0.0838 34.7 200x200 0.0021 0.0533 0.0029 0.0737 33.6 250x250 0.0016 0.0406 0.0024 0.0610 36.0 270x270 0.0016 0.0406 0.0021 0.0533 32.2 300x300 0.0015 0.0381 0.0018 0.0370 29.7 325x325 0.0014 0.0356 0.0017 0.0432 30.0 400x400 0.0010 0.0254 0.0015 0.0370 36.0 500x500 0.0010 0.0254 0.0010 0.0254 25.0 635x635 0.0008 0.0203 0.0008 0.0203 25.0   Stainless Steel Plain Dutch Weave Mesh Mesh Wire Dia（Inch） Absolute Filter Rating（μm) Norminal Filter Rating（μm) 8x85 0.014x0.0126 318-340 250-255 12x64 0.024x0.0165 270-285 200-205 14x88 0.02x0.013 225-245 150-155 20x150 0.0098x0.007 155-165 100-105 24x100 0.015x0.01 115-125 80-85 30x150 0.009x0.007 95-100 65-70 40x200 0.007x0.0055 65-70 55-60 50x250 0.0055x0.0045 55-60 40-45 80x400 0.0049x0.0028 43-48 35-40   Stainless Steel Reverse Dutch Weave Mesh Mesh Wire Dia（μm） Aperture（μm) Effective Section Ratio Weight Thickness Warp Weft Nominal Asolute （%） （kg/㎡） （mm) 84x14 - - - 450-530 62 3.5 1.15 260x40 - - 125 112-125 54 2.25 0.62 170x40 - - 90 106-118 54 2.1 0.57 175x37 - - 85 100-106 54 2.1 0.57 130x30-35 200 380 80 95-105 57 2.7-3.10 0.77-0.80 175x40-50 150 300 60 65-72 55 2.1-2.40 0.57-0.60 280x60-70 90 200 40 54-60 56 1.34-1.55 0.38-0.40 600x100-105 42 140 25 34-38 57 0.75-0.80 0.22-0.23 630x125-130 42 125 17 22-26 53 0.75-0.85 0.20--0.22 720x140-150 35 110 15 16-20 52 0.65-0.70 0.15-0.18   Stainless Steel Twill Dutch Weave Mesh Mesh Wire Dia (Inch） Absolute Filter Rating（μm) Norminal Filter Rating（μm) 20x250 .0098x.0079 110-120 98-105 30x360 .0098x.0060 90-100 80-84 40x560 .0070x.0040 70-75 47-52 80x700 .0040x.0030 35-40 24-26 200x600 .0024x.0018 28-32 19-21 165x800 .0028x.0020 24-26 14-16 165x1400 .0028x.0016 16-18 9-11 200x1400 .0028x.0016 12-14 5-6 250x1400 .0022x.0016 11-12 3-4 325x2300 .0015x.0010 8-9 2-3 500x3600 .0010x.0006 2-3 1

• MOQ 1000 Square Meter

Copper mesh is woven from various copper wires.   Jiushen copper wire mesh detailed information as follows: Material: Brass (H65, H80), Red Copper, Phosphor Bronze（CSn6.50.4) Standard: ASTM E2016-2020-5000 / ASTM E2814-2011 Weaving Pattern: Plain Weave, Twill Weave. Features: Corrosion resistance, wear resistance, non-magnetic, good ductility Application: Sieve grain, powder, porcelain clay, porcelain printing, shielding, filter gas and liquid etc.   Specification: Copper Wire Mesh Mesh（inch） Wire Dia.(mm) Aperture(mm) 14 0.45 1.37 16 0.4 1.19 18 0.4 0.99 20 0.4 0.87 30 0.3 0.55 36 0.25 0.46 40 0.22 0.415 45 0.16 0.4 50 0.2 0.3 60 0.16 0.25 80 0.12 0.2 100 0.1 0.155 150 0.06 0.11 200 0.05 0.077 250 0.04 0.062 OEM is available
