Ordito Machines

Nagpada, Mumbai, Maharashtra

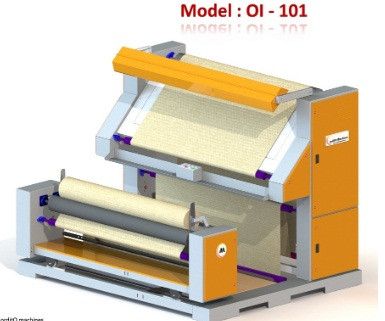

OI - 101 designed to detect fabric defect for types of fabric in roll form on laminated inspection table. A Digital length counter is provided to measure the length of fabric inspected. OIM Inspection machine with optional data collection and analysis systems. In this Machine fabric rolling behind the operator with various other fabric inlet and outlet options. cuts the fabric in a straight line with additional auto cutting systems.

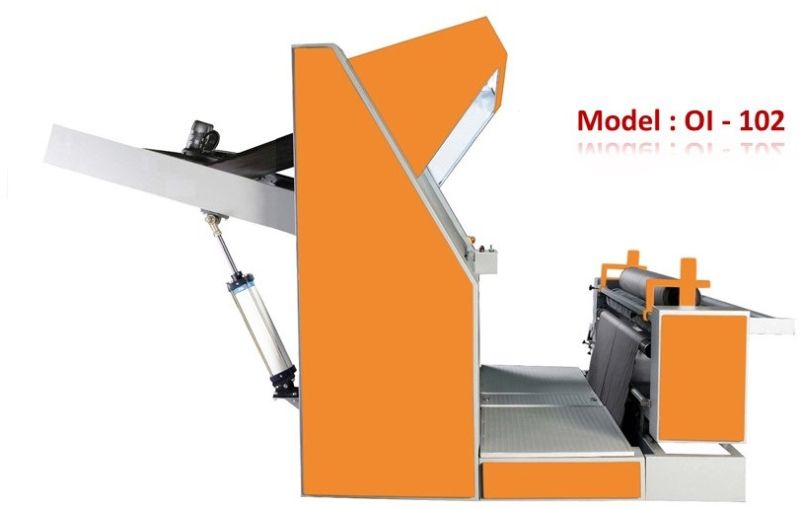

OIM BB designed to detect fabric defect for types of fabric in roll form on laminated inspection table. A Digital length counter is provided to measure the length of fabric inspected. This Machine can be delivery in Big - Batch form to Roll form with consists of M.S. Roller Covered with Emery, Arm type Surface Big - Batcher is Provided with Pneumatic Cylinder.

OI - 103 designed inspection machine to detect fabric defects for all types of fabric in Axial Form. Axial Unwinder is Controlled through an additional compensator with synchronies between axial to axial. E + L Edge Guider maintains the centerline and guides the fabric in line.

OI -104 designed inspection machine to detect fabric defects for all types of fabric in Roll Form. Providing wooden platform to operator for inspection all type of fabrics. In this Machine fabric rolling in front of the operator to fast and easily handled.

Ordito Inspection Machine (OI-105) OI -105 designed inspection machine to detect fabric defects for all types of fabric in Roll Form. In OI -105 all types of fabric rolling in front of the operator . Tech Specification Fabric input from Fold, Roll form to Roll form Variable fabric input & Output option Variable speed & speed control at operator hand Motorize Guider Systems Adjustable Fabric Tension Comfortable working for operator Fabric length measuring devices Synchronize fabric by tension unit Compensator Fabric can run in Forward as well as Reverse direction Low power consumption Remove crease & wrinkle Emergency facility to stop machine Fabric Inspection panel at 60o inclined or adjustable Illuminated intermediate and top panel Automatic stop arrangement to stop the machine at the end of fabric Bow Roller has been provided in the batching device to open out crease in the fabric.

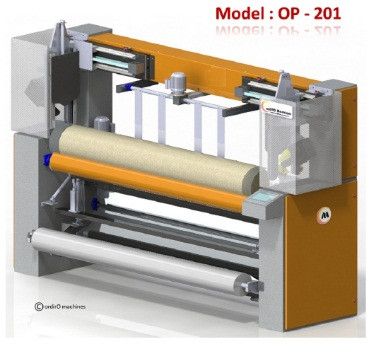

orditO Packing Machine is ideally suitable for any type of weaving mills manufacturing any kind of fabric rolls like Suiting shirting , Denim Fabrics, Carpets, Upholsteries, where cloth in Roll-Forms are to be protected from dust & moisture when in storage and in subsequent transportation. It is easy to operate & very simple to maintain; it is sturdy & user friendly; it can accommodate even wider width - medium diameter fabric rolls & use single through length plastic film to wrap them quickly. Tech. Specification Highly economical and huge savings over shrink packing/gunny bundles Suitable for Packing any rolls of Denim Cloth, Curtain Cloth, Carpets, Foam sheets, Upholsteries, Fabrics, Paper etc. Occupies less space Available in variables workings width High productivity 30 - 40 rolls/hour Tremendous savings in labour, time and money Highly durable dust and moisture proof packing Powered Pre-Stretch unit to minimize film consumption Controlled film tension Variable Overlap, Variable End Reinforcements, Variable Stretch Percentage and Variable Roller Speed Simple to operate, sturdy & safety control panel Cradle for easy loading of film Easy loading and unloading of Fabric roll and ease of integration into conveyor lines

OS is new generation machine with servo and PLC controls is designed for fabric. Stacking machine of high productivity for all types of textiles Products used in the manufacture of bed linen, table linen, kitchen linen, bath linen, upholstery, draperies, awnings, tents and technical applications. Provide a table for spreading, cutting and stacking fabric in different working widths and lengths. It is a high production machine designed to work simultaneously with multiple rolls. Tech. Specification High productivity for all types of textiles High production machine Feeder to work from double folded material. PLC programmed control system, all the parameter can be displayed on control monitor and machine starts to work automatically. Provides auto meter counter, when reaching to the preset data, machine stops automatically. Provides emergency switch. Reduced space requirement in finishing department for converting the roll of fabric to the linen layers. Reduced manpower requirement for producing the same quantity.

OR -401 perfected the design & manufacturing of wide range of Fabric Rolling Machines available in various working widths which are easy to operate, technically advanced and programmable machines in the field of fabric quality control. Fabric length measuring device is provided to measure the length of fabric Rolled. In ORM all types of fabric rolling in front of the operator. Tech Specification Fabric input from Fold, Roll form to Roll form Variable fabric input & Output option Variable speed & speed control at operator hand Motorize Guider Systems Fabric length measuring devices Synchronize fabric by tension unit Low power consumption Remove crease & wrinkle Emergency facility to stop machine Comfortable working for operator Fabric can run in Forward as well as Reverse direction Automatic stop arrangement to stop the machine at the end of fabric Bow Roller has been provided to open out crease in the fabric.

OB -501 Consist of 2 Brush Roll with spiral brushes of long life HOG Hair Bristle with sleeve type assembly to remove impurities from both the side of fabrics. Tech Specification Fabric input from Fold, Roll form to Fold form Variable fabric input & Output option Variable speed & speed control at operator hand Brush Roll with spiral brushes Fabric length measuring devices Synchronize fabric by tension unit Low power consumption Remove crease & wrinkle Emergency facility to stop machine Comfortable working for operator Fabric can run in Forward as well as Reverse direction Automatic stop arrangement to stop the machine at the end of fabric Bow Roller has been provided to open out crease in the fabric

OO -601 Works fast, efficient and requires only one operator, it consist of Stainless Sheet for fabric care Tech Specification Fabric input from Fold, Roll form to Fold form Variable fabric input & Output option Variable speed & speed control at operator hand Fabric length measuring devices Low power consumption Stainless Steel Sheet Emergency facility to stop machine Fabric can run in Forward as well as Reverse direction Automatic stop arrangement to stop the machine at the end of fabric
