Orient Machine Tools

George Town, Chennai, Tamil Nadu

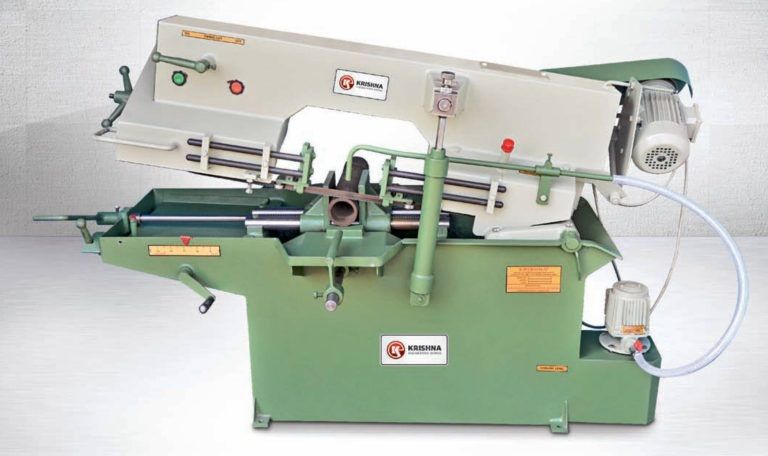

High productivity with low rate saves yours idle time Improved heavy duty oil fieled gear box (synthetic oil) Specially designed hydraulic feed control jumper system Chip collecting trey for keeping fresh coolant water (Only in KE-HS models) Chip removing wire brush for continues clean the blade (Only in KE-HS models) Superb Carbide wear pad blade guide system

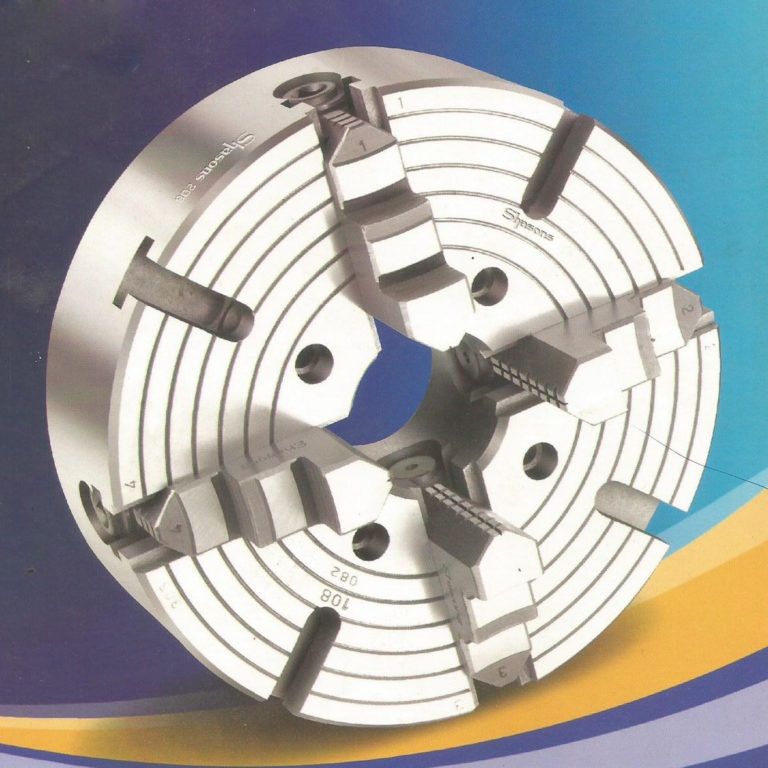

BODY is of high strength cast iron, designed to provide maximum rigidity with minimum weight & overhang. JAWS are case hardened and ground where required. Jaws are of sufficient length to prevent tilt and rapid It has diamond cut on bigger V for extra rigid grip. _ PINIONS are of alloy steel with uniform hardness. Square threads of pinions are precisely cut to reduce pitch error resulting in a smooth movement. These are ground on the diameter & are interchangeable . LOCKS are of alloy steel & ground on the fitting diameter for precise fit. Locks are interchangeable. SPARES are easily available for quick & better service. BODY is of high strength cast iron, designed to provide maximum rigidity with minimum weight & overhang. JAWS are case hardened and ground where required. Jaws are of sufficient length to prevent tilt and rapid It has diamond cut on bigger V for extra rigid grip.

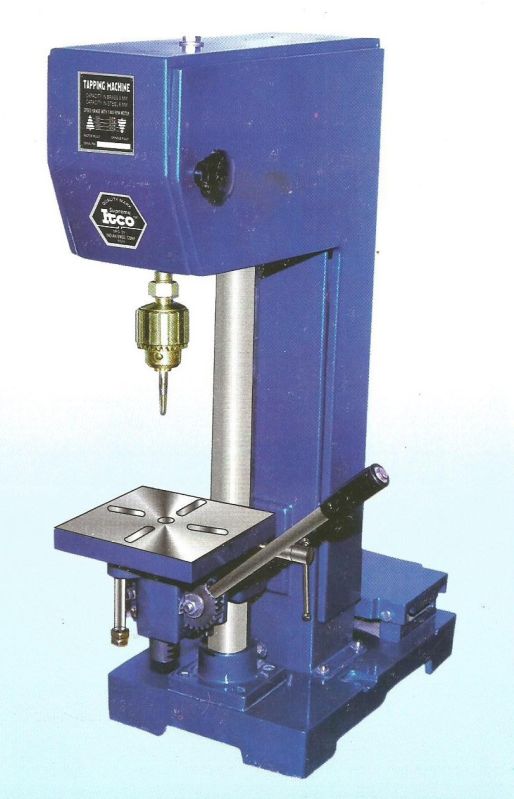

HEAD : A one piece close grained iron casting, accurately machined to ensure perfect parallelism between the column & spindle. COLUMN : Heavy section seamless steel tube ensures rigidity and resists deflection. It is precision ground. SPINDLE : The spindle & quill are made of alloy steel accurately machined and ground. TABLE : It is made of special cast iron and is accurately machined for precision work. FINISH : Handles and leavers are chrome plated. Main components are excellently surfaced and treated with metallic stoving enamel.

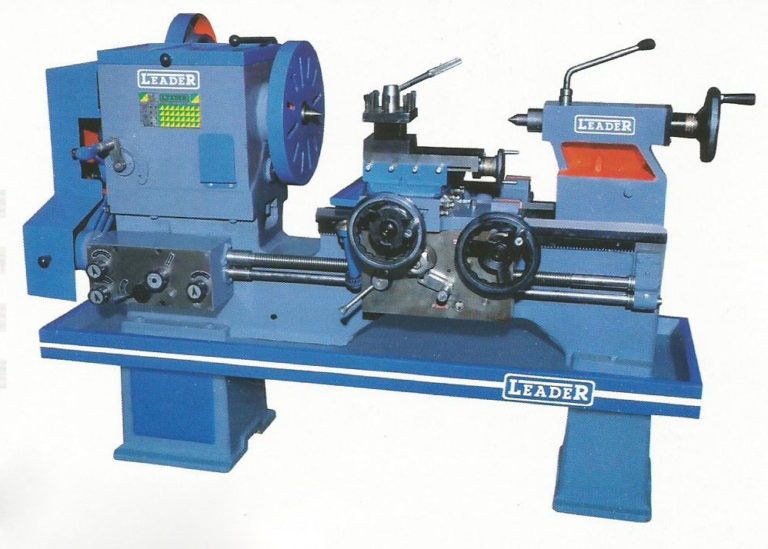

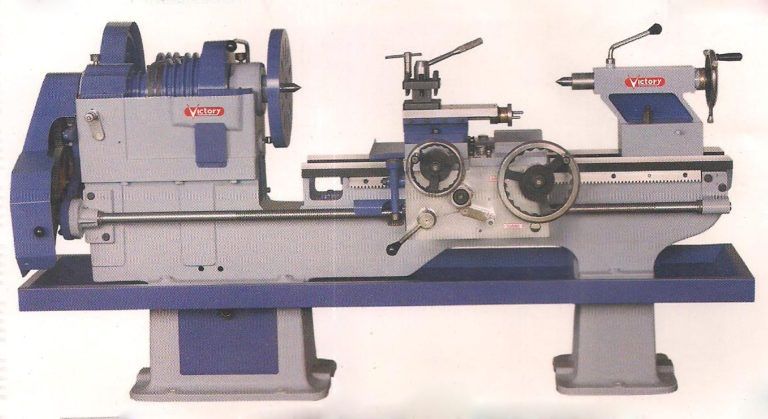

TAPER BORE IN SPINDLE SLEEVE MT 4 TAPER BORE IN MAIN SPINDLE MT 6 OF SPINDLE SPEED 6 RPM (LOW HIGH) 28 to 520 RPM METRIC THREAD (MM) 13 (1 TO 6 mm) ENGLISH THREAD (INCH) 19 ( 2 TO 24 TPI) LEAD SCREW (O.D. & TPI) 1.25 & 4 TPI V-Belt C 62

Presses are available in capacities of 3 to 300 tonnes in single geared/ double geared and un-geared types C type and pillar type models. and also available inclinable type and permanently inclinable type models these machines are subjected to stringent performance testing using advanced testing devices to ensure high performance, increased productivity & reliability. FRAME : The robust frame is fabricated from solid steel plates with heavy cross ribbing to main housing & C Supports for perfectly balanced distribution of stress over the cross section elimination deflection and vibration and thus improving die & machine life.

Hydraulic Machines are equipped with Quality seals, Hard Chrome plated rod and Honned Cylinder. POWER PACK Equipped with relief value, pressure gauge, suction, branded hydraulic pump and works on low pressure. It is situated outside the machine body for better cooling. Machine is provided with stock adjustment

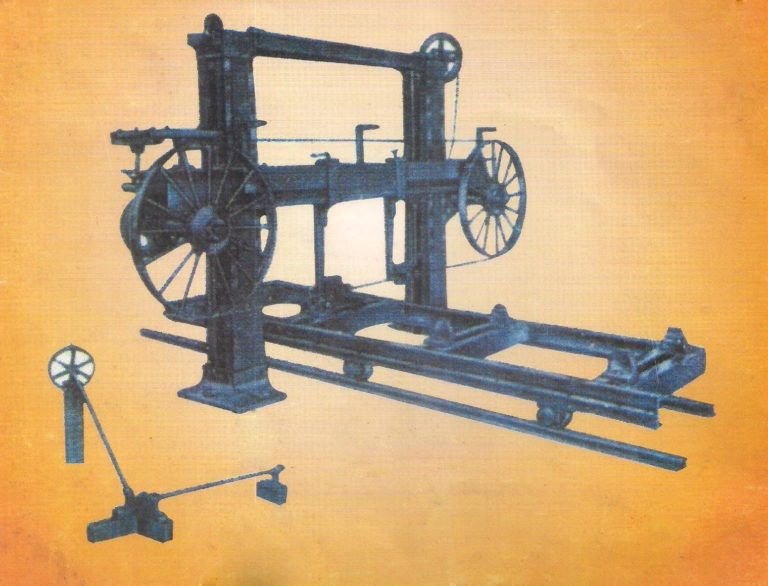

NORTON Log Band Mzills of Latest design are suitable for taking care of Heavy Logs, Manufactured and assemblod under the direct Supervision of Wail Qualified and Experienced Engineers NORTON Log Band Mill does not Vibrate while in operation and gives smooth and finished output, NORTON Machine is fully approved by the NATIONAL SMALL INDUSTRIES CORP. (Pvt.) LTD, NEW DELHI, MINISTRY OF COMMERCE AND INDUSTRY, GOVT OF INDIA BODY : It is made of double Steel Channels Size 10 x 3. The Pillers are double and fitted in the HEAVY CAST IRON FOUNDATION FEET which keep the machine stable in operation : WHEELS : These are made of best Quality Steel Each wheel Size 3 X 1 is fitted in the DOUBLE ROW steel spokes of 7/8 dia as required from Engineering point of view. Each spoke is accurately planned. DOUBLE CHECKNUTTED and thread fitted in EXTRA HEAVY DUTY KNOB to ensure long life and durability. The wheel finish is imparted by the Grinding machine to imfuse accuracy balancing and durability therein.
