P. PARMAR MACHINE TOOLS

Chitra GIDC, Bhavnagar, Gujarat

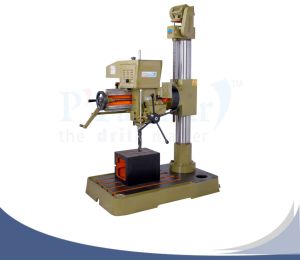

R = Radial Drill mc * 2540 = Drill capacity(in mm) * A = Auto feed model Motor Pulley ◊ Electric Motor ◊ Tapper Drift ◊ R & F Switch ◊ Manual Book ◊ Drill Chuck ◊ Drill-bit angle gague ◊ Arbour

• Drilling Capacity20 Mm
• Tilting working tableFixed
• Overall Base Size (in mm)490 x 310
• Pillar Diameter74.30 mm
• Overall height with pulley guard1420 mm
• Table Travel200 mm
• Weight (Approx.)110 kg.
• Shipping Wooden Case Inner Size LxWxH(in mm)660x380x1140 mm
• Taper in spindleMT – 2
• Spindle nose to table distance650 mm
• V-Belt sectionA – 44"
• Distance from spindle nose to base distance900 mm
• Distance from spindle center to pillar surface200 mm ( MAX )
• Motor1440 RPM 3 Phase440 volts0.5 HP
• Pillar Length1170 mm
• Table Size (in mm)260 x 260
• Spindle Travel130 mm
• Base size (Machined Area mm)470 x 320
• Range of Speed (RPM)80 to 3500
• Number of speed8 Speed

• Drilling Capacity25 mm
• Distance from spindle center to pillar surface250 mm ( MAX )
• Spindle Travel180 mm
• Overall Base Size (in mm)370 x 580
• Number of speed8 Speed
• Overall height with pulley guard1730 mm
• Range of Speed (RPM)130 to 2600
• Tilting working tableFixed
• Table Travel480 mm
• Pillar Diameter92 mm
• V-Belt sectionB – 52"
• Table Size (in mm)330 x 330
• Spindle nose to table distance660 mm
• Taper in spindleMT – 3
• Base size (Machined Area mm)365 x 575
• Distance from spindle nose to base distance1045 mm
• Pillar Length1410 mm

• Taper In SpindleMT-3
• Pillar Diameter92 Mm
• Spindle Nose To Table Distance645 Mm
• Spindle Center To Pillar Surface Distance250 Mm (MAX)
• Number Of Speeds8 Speed
• Speed Range70 To 2000 RPM
• Table Travel480 Mm
• Spindle Nose To Base Distance1000 Mm

• base size440 X 715 Mm
• Table Size410 X 410 Mm
• Taper In SpindleMT-4
• Number Of Speed8 Speed
• Range Of Speed (RPM)70 To 2000
• Distance From Spindle Center To Pillar Surface320 Mm (MAX)
• Table Travel480 Mm

• Drilling Capacity40 mm
• Distance from spindle center to pillar surface320 mm ( MAX )
• Range of Speed (RPM)70 to 2000
• Tilting working tableFIXED
• Pillar Diameter121 mm
• Distance from spindle nose to base distance1050 mm
• Spindle nose to table distance595 mm
• Taper in spindleMT – 4
• Table Travel480 mm
• Number of speed8 Speed
