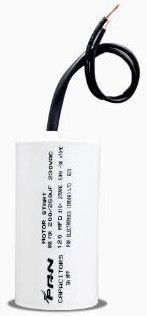

Motor Start Capacitors play a critical role in single-phase AC motors that require a strong starting torque. These capacitors consist of an auxiliary winding with a capacitor in series to produce the necessary phase shift to overcome strong inertia. In the past, Aluminium Electrolytic Capacitors were commonly used for this purpose, but they had a major disadvantage of rapidly overheating, limiting their use to a maximum of 20 times within an hour and for not more than 3 seconds. At PAN Electronics, we present an innovative solution to this problem with our Dry Film Capacitors, which can now replace electrolytic capacitors for high-torque start applications and comparatively draws nearly 30% less starting current. Our capacitors are reliable and durable, capable of providing strong starting torque that could take up to 1 minute, depending on the voltage, to reach full speed. With a lifespan of up to 700, 000 cycles, our Dry Film Capacitors provide an exceptional solution to your single-phase AC motor needs

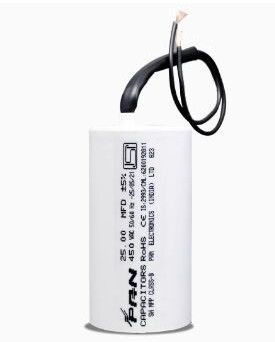

Introducing our high-quality Motor Run Capacitors the perfect solution for providing running torque and power factor correction for Single-phase motor run applications. Our capacitors feature MPP film and a dry encapsulated with polyurethane resin in container design, with either single or double fastened tinned terminals or wire termination for ease of installation. Our Motor Run Capacitors are small in dimension, lightweight, and have a low dissipation factor, making them perfect for space-constrained applications. With excellent self-healing properties, our capacitors are rated for high safety and reliability, ensuring uninterrupted and trouble-free operation of your equipment.FeaturesCan be applied to 450VAC - 50/60HZ AC Power SystemLong life expectancyLow dissipation factorLow DPPM in fieldStable capacitanceMPP Film technology with Self-healingEnvironment friendly with NON-PCB Encapsulation -REACH & RoHS CertifiedHigh safety with segmented filmBurst proof design (P2 Over pressure disconnector)

Power factor correction capacitors, designed and manufactured by PAN Electronics, are crucial in optimizing the efficiency of electrical systems. These shunt capacitors are expertly connected in parallel to a load or on a supply line to offer a leading load. This effectively counteracts the lagging load and improves power factor to acceptable limits, resulting in more efficient energy usage and cost savings. Our range of Standard duty capacitors are designed with metalized polypropylene technology and come with a stacked winding and are impregnated with Dry Type and non-PCB jelly Oil encapsulation. The capacitors are available from 1-25 kVAr in Box configuration and specially designed for industries where fixed compensation using Box type capacitors is preferred.

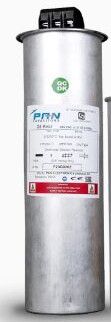

Power factor correction capacitors, designed and manufactured by PAN Electronics offer high inrush current withstanding capability, explosion proof, low losses available in dry type to withstand high temperature in a compact cylindrical construction. The capacitors are available from 1-25 KVAR in Cylindrical design configuration.Compact cylindrical construction for LV Applications3-Phase Delta connectionNon-PCB jelly oil & Dry type encapsulationMPP film technology with Self-Healing propertiesOver-pressure DisconnectorDouble Di-electric technology to withstand high voltageOver current withstand capability - 1.8 times of rated currentAvailable in standard duty 1-25KVAR in 525VACAvailable in Heavy duty 5-25KVAR in 525VACCompact size and light weightCapable of floor mounting & wall mounting

MPP capacitors for Fans are manufactured with burst proof construction with the latest technology in MPP Film, namely multi layer heavy edge metallised PP film which ensures better bonding between electrode and end spray resulting in an extended life of the capacitor. Pan Electronics has continuously innovated in the design of our capacitors and we are proud to mention that we can produce capacitors that have minimum capacitance drop and very low to near zero failure rates.

In HVAC and AC units, the AC capacitors purpose is to help power the compressor motor and condenser fan motor that require that extra electricity when starting up. A capacitor gives that extra electricity and then recharges and is ready to provide that boost of electricity when it is needed again. One combined capacitor will serve the dual purpose of powering the compressor motor and condenser fan motor thus saving precious space within the appliance. PAN Electronics offers a comprehensive range of dual capacitors for air conditioners, designed to meet the specific needs of various HVAC systems. These capacitors are highly reliable, efficient, and ensure optimum performance of the AC units

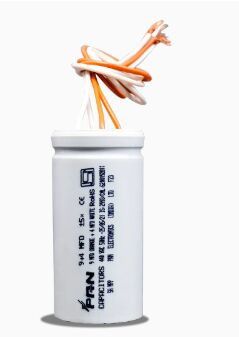

PAN Electronics offers top-of-the-line washing machine dual capacitors designed to provide reliable and efficient performance. Our capacitors are specifically crafted to withstand the harsh operating conditions of washing machines and have been rigorously tested for their durability, safety, and long-lasting performance. FeaturesCan be applied to 450VAC/ 50HZ-60HZ AC Power SystemLong life expectancyLow dissipation factorLow DPPM in fieldStable capacitanceLow energy consumptionMPP Film technology with Self-healingApplicationsGeneral SineWave Single phase motor run washing machine

Lighting capacitors are used in Fluorescent Fittings, Street Lanterns and with other High Intensity Discharge Lamps in parallel connection. PAN Electronics offers lighting capacitors for various applications, such as HID Lighting Ballast. Our Lighting capacitors offer a high dependability and working life needed in the lighting applications. The small dimensions and low-profile design of the capacitors make them ideal for electronic ballast applications.
