Our Product / Services
Our offered Product range includes Storage Tank Fabrication, Basket Filter, Stainless Steel Fabrication Services, Agitated Reactors and Auto Backwash Filter.
Industrial storage tanks are containers used for storage of gas, oil, water, and petrochemical products, employed for industrial uses. Industrial storage tanks come in different sizes and shapes.They can be underground, horizontal, and vertical, and be made from concrete, stone, fiberglass, steel, or plastic. Industrial storage tanks can be categorized into several types based on the substance they hold and some other factors.
Additional Information:
Payment Terms :
Packaging Details : As required
Delivery Time : 4 weeks
We are a recognized firm engaged in manufacturing an extremely efficient Reactor Vessel that is the central component of the reactor coolant system and which is sturdy steel constructed by the skilled professionals of our company. The Reactor Vessels designed and developed by us are widely used in pharmaceutical industries, chemical plants, etc.
Additional Information:
Payment Terms :
Packaging Details : As required
Delivery Time : 4 weeks
Simplex Basket Filters are available in both Cast and Fabricated construction in inline and offset connections with flat bottoms or dish end as shell bottom. Each one of these filters are individually designed based on free flow area and pressure drop allowance values as required for the application. Various linings such as Rubber/PP/PVC/FRP/PTFE-FEP or any other epoxy can be done depending on applications, temperature, and pressure. These can be supplied with wedge wire elements or perforated sheet and wire mesh as filtration media
Additional Information:
Payment Terms :
Packaging Details : As required
Delivery Time : 4 weeks
Duplex Basket filters are installed where continuous operation is required, where the quantity of impurities is large and the line cannot be shut down for cleanout. When collected solids build up and impede flow, diverter valves permit the transfer of fluid flow without interruption from one basket to another. In this manner since isolated, the dirty basket can be removed and cleaned. These are available with an option of a manual changeover and automatic changeover of the valve in order to switch between one filter and the other. Duplex Basket filters are also available with automatic cleaning options as Duplex Auto Back wash filters where there is no need to remove the basket for the purpose of cleaning. These are also available with the option of a manual and automatic changeover of the valve
Additional Information:
Payment Terms :
Packaging Details : SEA WORTHY PACKING
Delivery Time : 3WEEKS
Liquid enters from the inlet, passes through the filter element, and gets out of the outlet of the Filter Nozzle. Differential Pressure (DP) Switch is provided across the Inlet and Outlet of the Filter. When the Filter Element gets choked Pressure Drop across the filter increases. Normally maximum Differential Pressure for backwashing is set at 0.5 Kg/cm2. When the Differential Pressure reaches the set limit the DP Switch gives a signal to the Control Panel (CP) and the CP gives a signal to the Motor and Electrically or Pneumatically Actuated Drain Valve. The Motor connected to the back 0 wash arm starts rotating 360 with 10 15 RPM; simultaneously the Motorized Drain Valve also gets opened to the atmosphere.
Additional Information:
Payment Terms :
Packaging Details : As required
Delivery Time : 4 weeks
We are a recognized firm engaged in manufacturing an extremely efficient Reactor Vessel that is the central component of the reactor coolant system and which is sturdy steel constructed by the skilled professionals of our company. The Reactor Vessels designed and developed by us are widely used in pharmaceutical industries, chemical plants, etc.
Additional Information:
Payment Terms :
Packaging Details : As required
Delivery Time : 4 weeks
We manufacture various types of pressure vessels custom-made for a wide range of applications.
Our product range includes air receivers, surge tanks, accumulators, blow-down tanks, flash tanks, expansion tanks, filter vessels, distillation columns, hot water generators, hydro pneumatic tanks, nitrogen storage tanks, LP heater assembly, propane tanks, propane dispenser tanks, pressure vessels, refrigeration vessels, horizontal ammonia receivers, vertical ammonia receivers, oil pots, scrubbers, separators and more.
Additional Information:
Payment Terms :
Packaging Details : As required
Delivery Time : 4 weeks
Shell and Tube Heat Exchanger is the most common type of heat exchanger in oil refineries and other large chemical processes, and is suited for higher-pressure applications. Shell Tubes Heat Exchangers are classified into fixed and floating type Heat Exchangers. Shell and tube heat exchangers consist of a series of tubes. One set of these tubes contains the fluid that must be either heated or cooled. The second fluid runs over the tubes that are being heated or cooled so that it can either provide the heat or absorb the heat required. In this type, the tube sheets are completely welded to the shell and acted as shell flanges. Fixed-type Heat Exchangers are used there are absolutely no chances for intermixing of two fluids. The Floating type Heat Exchangers has the advantages of removability of tube bundle and access for cleaning both the inner and outer side of tubes and shell.
Additional Information:
Payment Terms :
Packaging Details : As required
Delivery Time : 4 weeks
Ahydrophoreis a scientific instrument used to draw up water samples from any source at any depth. Ahydrophore systemis a pressurized reservoir, which in addition to obtaining the sample, stores it and transports it to any region with minimum to a maximum degree of requirement continuously all around its pathways across various distances.
Additional Information:
Payment Terms :
Packaging Details : AS REQUIRED
Delivery Time : 4 WEEKS
fabrication of ally type of stainless steel tanks receivers reactors heatexhanger ,
process equipments , storage equipemnts for pharmaceutical , chemical , petrochemical , agro , other industry also
Additional Information:
Payment Terms :
Packaging Details : AS REQUIRED
Delivery Time : 4 WEEKS
fabrication and erection of storage tank for
1. petrochemical
2. molasses
3. ethanol
4. water
5. bio digester for bio gas plant
6. absorber for thermal power plant
7. slury storage tank for mines
fabrication erection of bulk storage tank for petro chemical , molasses , chemical , power palnt , mining industry
1. bulk storage tank in petrochemical industry from 10 mtr dia to 50 mtr dia
2. molases storage tank
3. ethanol storage tank
4. chmical storage tank
5. bio digester in bio gas plant
6. chimney absorber in thermal plant
7. slurry storage tank
Additional Information:
Payment Terms :
Packaging Details : AS REQUIRED
Delivery Time : 4 weeks
The Venturi Scrubber uses the differential between high-velocity gases and free-flowing water to create droplets that entrap contaminants, hold them in suspension and deliver them as highly concentrated slurry. The Venturi Scrubber offers more advantages in separating and recovering liquid mists and ultra-fine particulate than other gas cleaning methods.
The solid substrate material (the catalytic material upon which chemical species react) in the fluidized bed reactor is typically supported by aporousplate, known as a distributor.[1]The fluid is then forced through the distributor up through the solid material. At lower fluid velocities, the solids remain in place as the fluid passes through the voids in the material. This is known as apacked bedreactor. As the fluid velocity is increased, the reactor will reach a stage where the force of the fluid on the solids is enough to balance the weight of the solid material. This stage is known as incipient fluidization and occurs at this minimum fluidization velocity.
Additional Information:
Packaging Details : As per client's requirement
Delivery Time : 3 weeks
We are one of the leadingmanufacturer of pre-engineered buildings(PEBs). We offer turnkey solutions for multi-storey PEBs, and were gaining a strong client network because of our countless benefits.
The cost effective nature and long lasting property of these structures make us one of the most sought-after construction choices. We can customize these structures to meet a wide range of structural and aesthetic design requirements.
HEAVY STRUCTURE FABRICATION WORKS FOR INDUSTRIAL
WE DESIGN AND MANUFACTURE AS PER CLIENTS REQUIREMENT
Additional Information:
Delivery Time : 4 WEEKS
WE ARE MANUFACTURER AND SUPLLIER SELF SUPPORTING CHIMNEY AS PER REQUIRMENT CLIENT
Additional Information:
Payment Terms : L/C,
Packaging Details : AS PER REQUIRED BY CLIENT
Delivery Time : 4 WEEKS

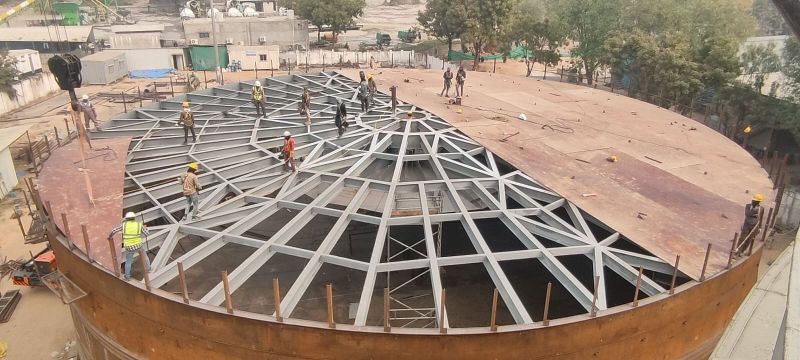

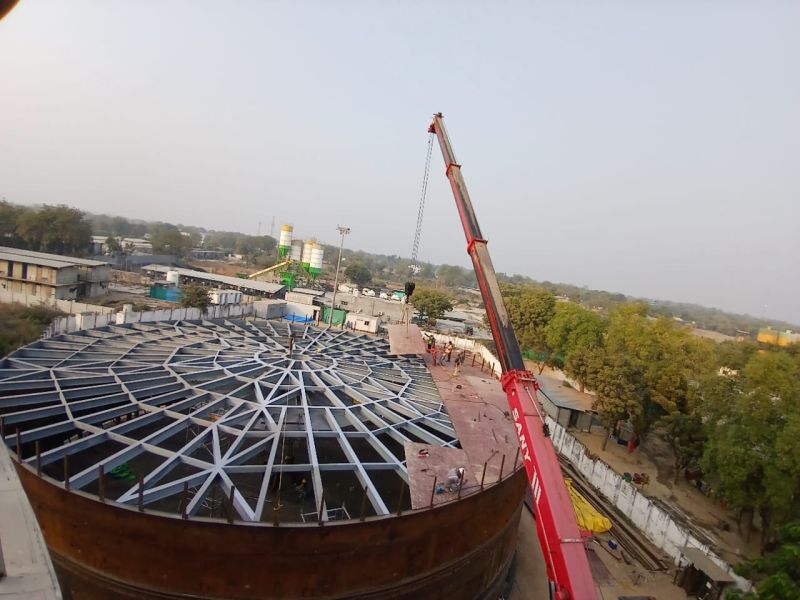

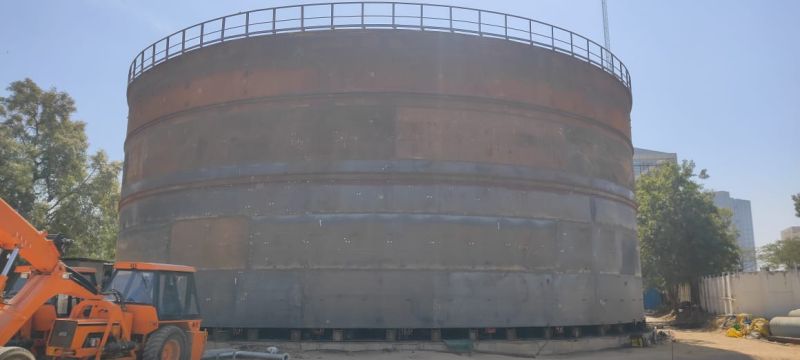

A Thermal Energy Storage Tank is a large, insulated vessel designed to store thermal energy (either hot or chilled water, or ice) for later use. It acts like a thermal “battery, ” allowing energy to be stored during off-peak hours and used during peak demand.
Chilled Water Storage Tank – Stores cold water produced by chillers at night for use in daytime cooling.
Ice Storage Tank – Produces and stores ice, which melts later to provide cooling.
Hot Water Storage Tank – Stores hot water generated by boilers, solar heaters, or waste heat for heating or industrial processes.
Additional Information:
Payment Terms : L/C
Delivery Time : 6 - 8 MONTHS

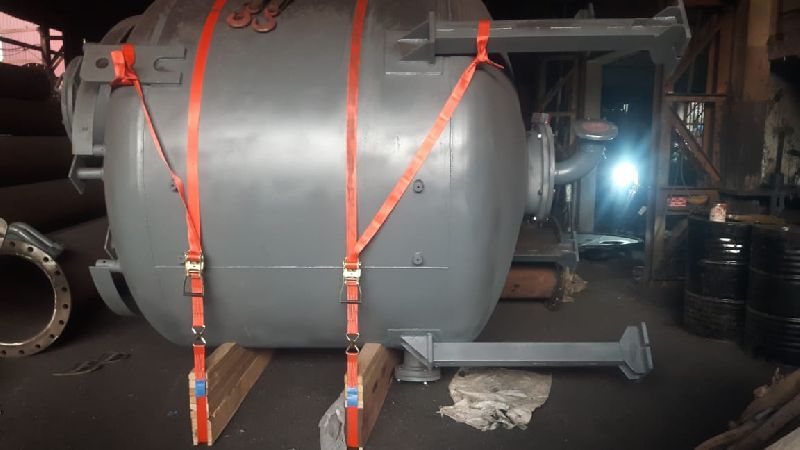

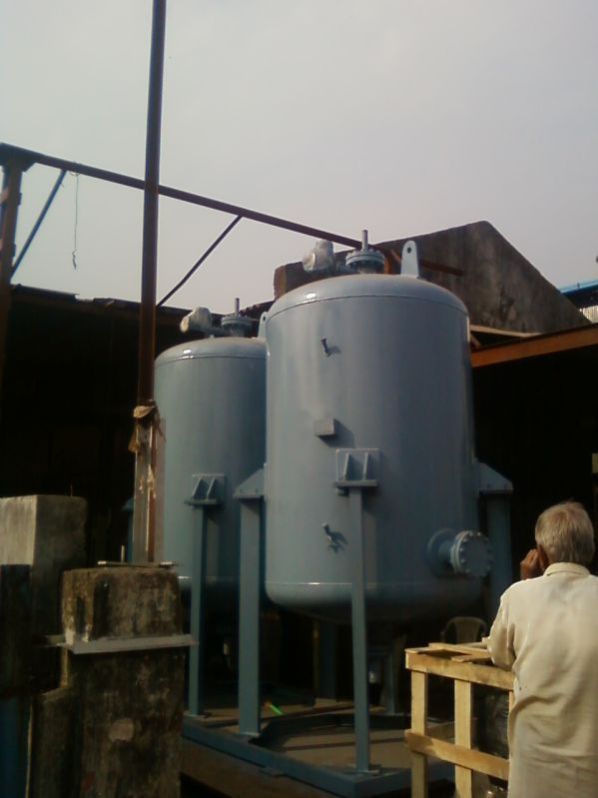

A buffer tank is a storage tank for water (or other liquids) that helps regulate a heating or cooling system by providing a stable volume and managing temperature fluctuations. It acts as a reservoir, storing excess heated or cooled water to prevent frequent on-off cycling of the main equipment (like heat pumps or boilers), which increases efficiency, reduces wear on components, and ensures consistent temperatures. Buffer tanks are used in various HVAC systems, including those with heat pumps, boilers, and chilled water systems, especially when there are variable loads or frequent demand changes.
Additional Information:
Payment Terms : L/C,
Packaging Details : AS PER REQUIREMENT
Delivery Time : 6 - 8 MONTHS
