Phadke Instruments Pvt. Ltd.

Marol, Mumbai, Maharashtra

• MaterialStainless Steel Type 304
• ConditionNew
• ApplicationLab Use,Gas Circulation, Purging, Pressure Control, Regeneration, Eco Mode
• FeatureDurable, Supreme Finish,Closed Loop Gas Circulation With Blower And Purifier,Achieved Automatically By Purging Valves,H2O And O2 Removal Material Regeneration With Program Control,Controlled By PLC, Pressure Range: +10mba To -10mba,Activates Vacuum Pump W
• TypeGlove Boxes
• Country of OriginIndia

The welding glove box system provides a high purity, low oxygen and moisture environment Includes two rectangular antechambers; One antechamber is heated (max 200 °C) Outer antechamber door manually controlled; Interior door automatically controlled The system purge is controlled with a flow meter; a separate purification system may be connected Dust removal units available for integration

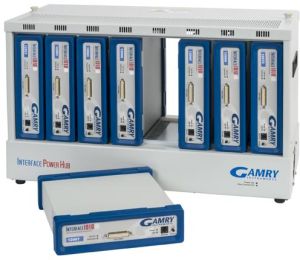

Gamry’s multichannel potentiostat systems combine multiple research-grade instruments into a single, flexible system. This flexibility gives you the ability to run each channel separately, in groups, or all at once

• Storage Capacity10kg
• ConditionNew
• ApplicationLab Use,Laboratory Equipment
• TypeGlove Boxes
• FeatureDurable, Moisture Proof
• Temperature RangeUp To 200°C
• Sequential UseOne Glove Box Used Sequentially
• CoatingLaminated
• Country of OriginIndia

Genral purpose, value-oriented for all applications. 12 V, 1 A EIS to 2 MHz

Closed Loop Gas Circulation Inert gas in a closed loop. The gas is circulated by the blower and purifier, H2O, O2 can be removed continuously. Auto Purging The replacement of the atmosphere inside the glove box can be achieved automatically by the purging valves. Automatic Regeneration H2O and O2 removal material can be regenerated. The regeneration process can be program controlled. Automatic Pressure Control The pressure in the glove box is controlled automatically by the Programmable Logic Controller (PLC). Working pressure can be set between +10mba and -10mba. If the pressure goes over+/- 12mbar, the system will be protected automatically. Eco Mode The vacuum pump will be activated automatically when necessary, and will turn off after a period of idle time. Blower frequency will be switched to 25Hz when moisture and oxygen level reaches to less than 1 ppm Main Chamber  Dimensions Modular length: 1220mm/1500mm/1800mm/2440mm ( 48.0”/59.1”/70.9”/ 96.0”) Modular depth: 750mm/1000mm/1200mm (29.5”/39.4”/47.2”) Modular height: 900m( 35.4”) Material: Stainless steel type 304, thickness 3mm (1/8”) Sight Windows: Inclined, Safety Glass, thickness 8mm (1/3”) Gloves Ports: POM (Polyoxymethylene), 220mm (8.7”) Diameter Gloves: 8B1532 Dust Filter: HEPA 0.3μ, one gas inlet, one gas outlet Shelving: Stainless Steel, two fixed shelves (adjustable shelves available) Lighting: External fluorescent lamp, front mounted above sight glass. Feedthroughs: One power feedthrough, 3 blind-flanges Large Antechamber Diameter: 360mm (14.2”) or 400mm (15.7”), Length 600mm (23.6”) With Sliding tray Spindle lock door, Vertical operation with lifting mechanism Automatic operation via solenoid valves Small Antechamber Diameter 150 mm (5.9”) or 100mm (3.9”), Length 300mm(11.8”) Hinged door Manual operation via hand valve Dual Purifier Removal of H 2 O and O 2   to Less than 1 ppm moisture and oxygen Absorber Unit: 5kg Copper catalyst, 5kg Molecular sieve Capacity to remove oxygen, 60L , moisture 2000g. Encapsulated Blower: 90m 3 /h Regeneration: PLC control all process including heating, introducing mix gas (working gas mixed with Hydrogen 5-10%), etc. System Control PLC and HMI: Siemens S7 Vacuum Pump 8m 3 /h Rotary vane pump with oil mist filter and gas ballast

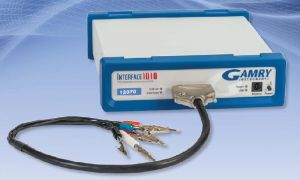

Entry-level low cost potentiostat Designed for undergraduate and graduate teaching lab EIS Capable
