We offer a complete product range of A1S61PN POWER SUPPLY UNIT, DPT103 DIFFERENTIAL PRESSURE TRANSMITTER, 6ES7323-1BH00-0AA0 Digital I/O Module, 2MLR-CPUH/T Programmable Logic Controller and MT-T1 Port Converter
Digital Output Module
Model no :CC-GDOL11
Part No :51306321-175
I/O Termination Assembly(IOTA 24 V
Redundant-yes
Size -12
Isolater- MTL4521 (qty 16)
Channels -32
IOTA board - specific for GI/IS usage
IOM module - Series C type
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Digital Output Relay IOTA
Model No :CC-TDOR01
Part No :51308376-175
24 V D0 IOM
PWA DO RELAY IOTA 32 6IN CE CC
Relay Extension Board
The Series C Digital Output IOTA
Series C Digital Output Relay redundant IOTA is displayed.
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week

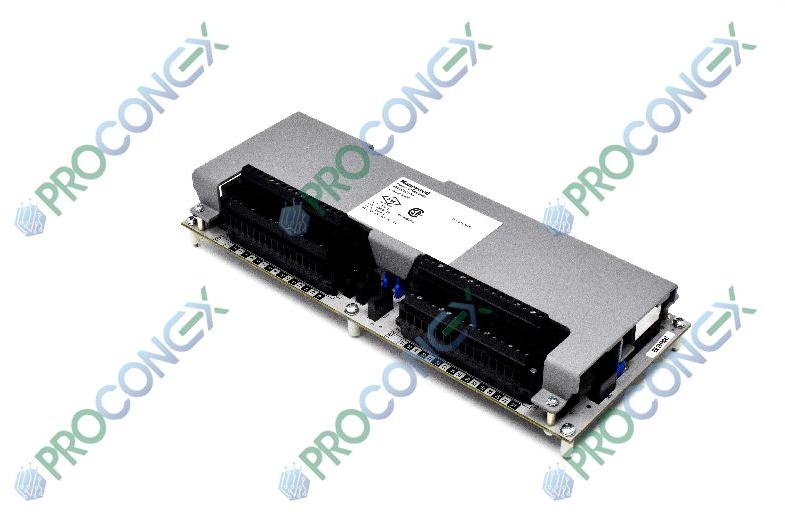

Digital Output IOTA RELAY Extension Board
Model No :CC-SDOR01
Part No :51308380-175
0.15 A@ 24VDC
Ta=60 C MAX
Series C Digital Output Relay Extender board
Redundant type : yes
FM APPROVED
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
non-spring return, direct coupled actuator
model no :cn7505a2001
part no :50036196-001
5nm, 24vac/vdc, modulating control, non-spring return, voltage feedback signal and without aux. switch
torque rating: 44 lb-in. (5nm)
control signal:
modulating (0)2.10 vdc
floating/2-position 24 vac/dc
end switches (when included):
rating: class ii
triggering points: 5 / 85
rotation stroke: 95 c
safety:
protection standard: ip54
temperature regulating equipment
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
2-Wire Differential Pressure Transmitter
Model No :DPTE502
| Diff. Press. Transm. 0500/1000Pa |
| Diff. Druck. Transm. 0500/1000Pa |
| Response time:- 1 s (default) / 100 ms |
| DPSK-DPS DUCT Kit |
| Monitoring gaseous, non-aggressive media |
| Piezo-resistive pressure transducer |
| Up to 20 kPa (60 kPa) overload capacity |
| Easy installation and wiring connection |
| Measurement range adjustable by jumper |
| Response time adjustable by jumper |
| Supply voltage: 18-30 Vdc |
| Output signal: 4-20 mA, two-wire |
| burst pressure: 70kPa |
| OverLoad Capacity: 40kPa |
| Measuring Range- 0-500Pa and 0-1000Pa |
| Max. current consumption:- < 21 mA |
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Micro Processor Universal Digital Controller
Model No :UDC1200
All O/P Contacts 2A
Resistive 120-240V AC
Power: 100-240VAC 50/60Hz 7.5VA
Two 4- Digit Displays with 7 LED segments
NEMA3/IP65 Moisture resistant, Dustproof front panel
Universal Inputs: 7 Thermocouple Types, RTDs and Linear Signals
Up to outputs: Relay, Solid State Relay (open Collector) or DC Linear
Two soft alarms on outputs 2 and 3 plus Loop alarm
RS485 ASCII Serial Communication Output Option Available
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
analog output with screw terminals
model no :mc-ta0x52
part no :51304335-275
analog output redundancy
redundancy switching module
output channels: 8
51304338-100
ac04w47-d0807 rev d
Additional Information:
Packaging Details :As per International Standard.
Delivery Time :Within One Week
32-point discrete input module
model no :tk-idd321
part no :97271571 b01
dc input 24 vdc 32-pt coated
tamb max 60 c
number of inputs : 32 (16 points/common)
on-stage voltage range : 10-31.2 vdc @ 60 ?c all channels
on-state current (minimum) : 2 ma
off-state voltage (maximum) : 5 v
off-state current (maximum) : 1.5 ma
power dissipation : 6.1 w max
short/inrush current : 250 ma peak (decaying to
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
power adapter board
model no :mu-tlpa02
part no :51309204-125
llmux/sdi/si power adapter fta
2 - circuits
compression terminals
qi-mod
m-0801-0316-c
thermalloy 8909nb
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Honeywell Circuit Board
Model No :621-1160R
Input Module 115 VAC
Input Rating: 80-140VAC, 4-15 mA
| POINT INPUTS 16 |
| POINTS PER COMMON 16 |
| NOMINAL VOLTAGE 115 Vac |
| VOLTAGE RANGE 80-140 Vac |
| CURRENT RANGE 4-15 mA (8 mA at 115 Vac typical) |
| INPUT DELAY Off to: On 2.4 ms 25%On to Off 30 ms 50% |
| OPERATING CURRENT + 5 Vdc_50 mA max.INPUT SURGE CURRENT LIMIT500 mA per input |
Additional Information:
Packaging Details :As per International Standard.
Delivery Time :Within One Week
Ethernet Module
Model No :TK-FTEB01
Part No :51309512-175
For use with : Experion LS I/O module
Controller Platform: ControlLogic
Series : Chassis series-A
FTE Device Index
.007A @ 1.2VDC
0.70A @ 3.3VDC
0.4A @ 5.1VDC
.020A @ 24VDC
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Digital Input IOTA 240 V
Model No :CC-TDI220
Part No :51308394-275
Ta=60C Max
500mA/250V F
Current: A/mA/uA
Honeywell redundant Digital input module backplane CC-TDI220
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
HONEYWELL IKBI2 51305378-100 REV E Printer Interface card
Part No :51305378-100
Origin : Made In Japan
11.05920MHz
IKB12
1.842 MHz
847-101 REV E 99/08
xo-53b
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week

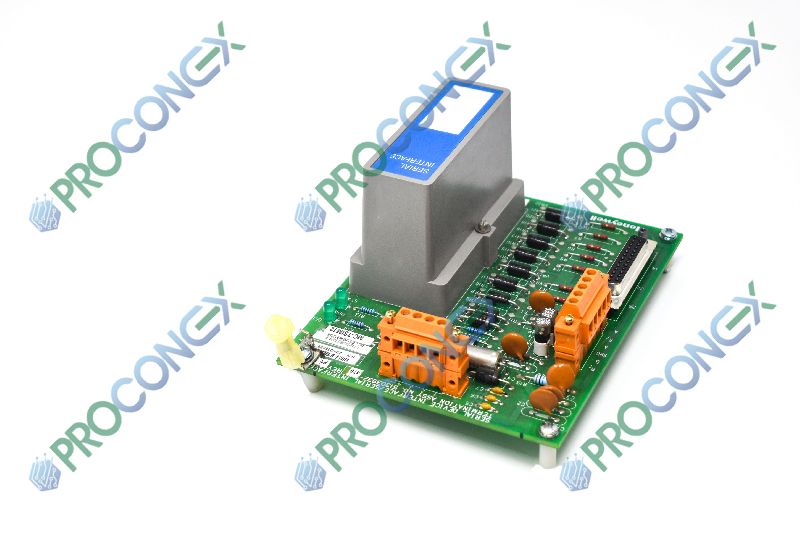

Serial Device Interface
Model No :MC-TSIM12
Part No :51303931-100
Assy No :51303932-476
Series: UCN
Serial Interface FTA - Modbus - MC-TSIM12
CE compliant, conformally coated
Redundancy not supported
Channels - 1
Terminal type - DB25 or compression
Size A - 6 inches (152 mm)
Additional Information:
Packaging Details :As per International Standard.
Delivery Time :Within One Week
Digital I/O Module
Model No :J-RTP00
Assy No :80360695-001
Part No :51190690-136
Used with: J-DIM00, J-DIM10, J-DOM00, and J-DOM10
Input power: internal or external
Output power: external only
Input or output points: up to 32
Additional Information:
Packaging Details :As per International Standard.
Delivery Time :Within One Week
Digital Input 24VDC 32 PT
Assy No :51304441-200
Model No :MU-TDID52
Part No :51304440-200
Redundancy supported
Size C - 18 inches (462 mm)
Circuits-32
Terminal Type -S
20-30VDC IN
V-0902-0138-C
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Product type : Low Level Analog Input Multiplexer
Model No :MU-TAMT02
Part No :51401491-100
TerminalType - C
Channels-16
Mounting Size-B
LLMux Analog Input TC with compression terminals
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week

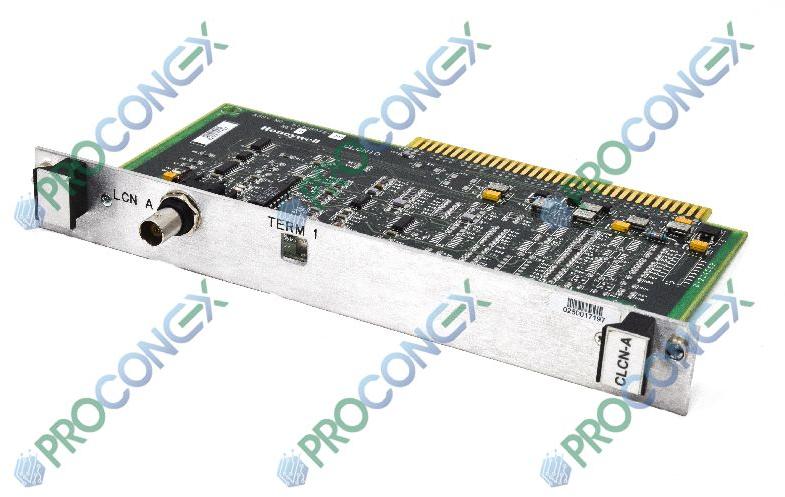

PLC Input / Output Module
Model No :CLCNIO
Part No :51305071
Assy no :51305072-200
BJ04W50J4231
B72609/04
Origin : Made In USA
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Product type : High Level Analog Input/STI FTA for Redundancy (16 Inputs)
Model No :MC-TAIH 12
Part No :51304337-150
Input Points - 16
Teminals - compression
Redundancy supported
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
HPM UCN INTERFACE
Part No :51402573-150
This module, mounted below the HPM control and I/O link modules,
Provides the interface between the HPM and the Universal.
Control Network (UCN). This part is conformally coated.
Series: UCN
Honeywell UCN High-perfomance Process Manager Interface (51402573-150)
Manufacturer: Honeywell
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
digital output module
model no :621-2100
2 a individual
6 a per common
8 a per module
621-2100/ 920043
50/60 hz
8 point
115 vac
output rating general purpose
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
OUTPUT MODULE 115 VAC
Model :621-2100R
Outputs : 8 Output On at zero crossing
Voltage Range:90-140 VAC
Maximum Current Range: 2 A/circuit, 6 A/common, 8 A/module
Surge Current:15 A for 2 cycle (non-repetitive)
Off-State Leakage Current:
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Input Module 115VAC
Model :621-1160
80-140 VAC, 4-15mA
Input Module 16 Point
The Honeywell IPC 621 range of I/O modules are for use with any of the IPC620, 620LCS or S9000 controllers.
50/60 HZ
Input Rating: 80-140 VAC4-15 MA
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
HC900 Controller
Model :900C73R-0100-43
REDUNDANT I/O SCANNER
Open Temp 0 to 60 deg.c
Module:770 mA MAX @5VDC
COMM:(2) 10/100 Base T
ABS TYPE APPROVED
Additional Information:
Packaging Details :As per International Standard.
Delivery Time :Within One Week
12-24 Vdc Source Self-Protected Discrete Output
Model No :621-6503R
OUTPUT MODULE 12-24 VDC
OUTPUT RATING:11-28 VDC
Outputs : 8
Special Feature :- Source Output
Nominal Voltage:- 12-24 Vdc
Voltage Range:- 11-28 Vdc
Maximum Current Range:- 2 A/circuit, 6 A/common, 8 A/module
Surge Current:- 5 A for 10ms (nonrepetitive)
Field Power Requirement:- 25 mA at 12 Vdc
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Card Slot Filter
Model Number :TC-XXXXX2
Part Number :95624775(B)
Type: Module
Style- NSMP
U.P.C 10612598284990
Origin : Made In USA
Brand Name : Honeywell
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Product Type : PC Board Module
Model / Number :51401594-200
Origin : Made In USA
Brand Name : Honeywell
Type : Industrial Control System
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
LLMUX/SDI/SI POWER ADAPTER FTA
Model No :MC-TLPA02
Part No :51309203-100
Assy No :51309204-175
Product type : Power Adapter
Circuits - 2
Terminals - Compression
Size A - 6 inches (152 mm)
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Reduntant STI/High Level Analog Input MU/MC-TAIH52
Model No :MC-TAIH52
Part No :51304336-200
Assy No :51304337-250
Input Points - 16
Terminals - Screw
Size B - 12 inches (30.48 cm)
Redundancy supported
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Dual Node Power Supply Module
Part Number :51401497-100
Brand Name : Honeywell
Origin : Made In Phoenix
3.DDA- 8061H-V
FW 15-94
Ith : 2.85A
Icn: 500A
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Electronic Assembly for Genius I/O Block
Maximum output current (steady state) : 0.5 Amps per circuit
Maximum inrush current : 4 Amps up to 10ms (once every .5 sec. maximum)
Block output current (total) : 16 Amps
Output OFF leakage current : 10A, maximum
Output turn-on delay : 0.5 ms, maximum
Output voltage drop : 2.0 volts maximum at 4 Amps inrush
Output Diagnostics : Switch Fault
Operating Temperature : -0 to +60C (32 to +140F)
Storage Temperature : -40 C (-40 to +212F)
Humidity : 5% to 95% (non-condensing)
Vibration : 5-10 Hz 0.2 (5.08mm) displacement, 10-200 Hz at 1G
Input impedance (typical) : 3.3K Ohms
Input processing time (typical) : 1.4 ms (plus selectable filter delay)
Operating voltage (one source) : 10 to 30 VDC (12/24 V supply)
4.9 to 5.3 VDC (5 V supply) (sink only) absolute instantaneous limit
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Part Number : IC670GBI002E
Description : Field control bus interface unit (BIU)
Nominal Rated Voltage : 115 Volts AC, 125 Volts DC
Voltage Range : 90 to 135 Volts AC / 105 to 150 Volts DC
Frequency : 47 to 63 Hertz
Power at 115 Volts AC : 48 Volt-Amperes (maximum) at full load
Power at 125 Volts AC : 24 Watts (maximum) at full load
Inrush Current : 20 Amperes (peak), 3 milliseconds (maximum)
Power Supply Output: 6.5 Volts DC
Holdup Time : 20 milliseconds (maximum)
Mounting : DIN rail
Maximum Exchange : 127 Bytes of I/O data
Operating Temperature : 0 to 60 degrees C (32 to 140 degrees F)
Series : Field Control
Weight : 440 g (0.97 lb)
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
MAIN POWER RACK
Part No :51199930-100
100-240VAC
47-63HZ
10A
Input :- 100-240VAC, 41-63Hz, 10A
Output :- 24-25VDC, 20A
Ambient Temperature :- 60 degree C
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
FIP Fieldbus Controller
Model No :IC697BEM741-BE
Class -I, Groups :- ABCD, Div :- 2
IC697BEM741 is an FIP Bus Controller (FBC) manufactured by GE Fanuc. This part permits the IC697 PLC to connect to a 1 Mbit FIP or WorldFIP Fieldbus network. It can scan FIP I/O from IC693 FIP Remote I/O Scanners, FIP IC670 modules, and generic FIP devices associated with the GE Fanuc 90-70 IC697BEM741.
Highlights of the IC697BEM741 include a 2-channel bus controller that occupies a single slot in a standard or VME Integrator rack. The FBC is configured with Logicmaster 90-70 or control programming software configuration functionality. I/O devices on the FIP bus are scanned simultaneously by the bus controller, and I/O data is transferred to the CPU one time per scan. A maximum of 31 various bus controllers can be included in an IC697 PLC system. Of these, four can be FIP bus controllers.
A FIP bus can serve remote drops (aka IC693 I/O racks which are interfaced to the bus through remote I/O scanner modules). Each remote drop may consist of any c of discrete and analog I/O modules; Field Control Stations, (aka Field Control I/O modules that are interfaced to the bus via a FIP Bus Interface Unit); and Generic Devices, including computers that are interfaced to the bus by a 3rd party FIP module. An FIP bus is mostly used for I/O control and can be utilized to store configuration data to remote devices and report faults.
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
parallel link driver module
model no :620-0088
interface type : parallel
2 dip switches
key slot
the parallel link driver module works with the i/o communications module to control i/o communications.
position in 620-25 and 620-35: slot n
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
High Performance/Density Processor Board
Model No :K2LCN-3
Assy No :51401551-300
Part No : 51401550
K2LCN Board Assembly, Processor (LCN Intf & 3 M Memory)
The K2LCN-3 processor is the first generation of high-density processors for the LCN, combining the 68020 processor, memory, and LCN interface on a single board. This card contains 3 MW of non-expandable memory.
The K2LCN series is also capable of generating and receiving digital clock synchronization data frames transmitted at the LCN standard 5 MHz rate.
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
High Performance Kernel Processor 2 Mw Memory
Part No :51401288-100
The HPK2-2 processor card is an early LCN processor based on the Motorola 68020, with 2 MW of memory. For most node applications it is used with EMEM or QMEM cards for additional memory.
This processor no longer in widespread use, having been replaced by the K4LCN-4, K4LCN-8, and K4LCN-16 in most current LCN systems.
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
first-generation Enhanced Peripheral Display Generator card
Part No :51401286-100
This is the first-generation Enhanced Peripheral Display Generator card for Universal Station nodes. It provides the signals for the video display, SCSI control for the Bernoulli or Zip drive, cursor control for the touch screen, trackball, or mouse, communication for the keyboard, and the printer, if present.
The I/O paddle board used with the EPDG2 can be one of the EPDGP I/O cards for non-CE applications, such as the 51304584-100. For CE applications, use the EPDGC-1
(51402447-100) or the EPDGC-2(51402447-200).
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
FDC Floppy Disk Circuit Board
Assy No :51400669-100
Part No :51400585-100
This interface is the Floppy Disc Controller for early versions of Honeywell's Universal Station. In most installations, the floppy drive has been replaced by either Bernoulli or Zip drives, so this board is essentially obsolete.
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Product Type : Low Level Analog Input Multiplexer TC FTAMU-TAMT03
Part No :51309223-125
Model :MU-TAMT03
16 Inputs
LLMUX FTA RTD(2)
CJR : Local
Brand Name : Honeywell
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Product type : Low Level Analog Input Multiplexer RTD FTA
Not CE compliant, not conformally coated
Redundancy not supported
Input channels : 16
Teminals : compression
LLMux RTD FTA with compression terminals
Single IOP interface
Shipping Weight : 5 Kg
Additional Information:
Packaging Details :As per International Standard.
Delivery Time :Within One Week
Advanced Control Module
Part No :51304518-100
Series: UCN
This is the Control Module for the Advanced Process Manager.
This is the APM resource dedicated to executing regulatory, logic, and sequence functions. This is the non-coated version of this module.
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
I/O Link Interface for the Advanced Process Manager
Part No :51303979-500
PROCESS MANAGER
ADVANCED I/O LINK MODULE
TDC-3000
This interface provides communication between the APM controller and the I/O Processors, or IOPs. This is the non-coated version of the I/O Link Interface.
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Digital Controller Programmer
Model No :DCP10T
Power :- 100-240VAC +/- 10%
50/60HZ 7.5VA 1A
Product Type :Digital Output type
origin : Made In UK
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Fema Differential pressure switch for air (DPS)
Filter monitor or flow switch for air, non-combustible, non aggressive gases in air conditioning and ventilating installations.
Kind of pressure: overpressure, relative
Pressure connection: plastic connection piece for 5 mm (internal) hose
Electrical connection: AMP connector 6, 3x0, 8 (DIN 46244) or screw terminals
Protection class: IP54
Sensing element material: ABS + Silicon
Media temp.: -20.85C
Ambient temperature: -20.85C
Switch function/capacity: SPDT switch 240 Vac; 1, 5 A (0.4)A
Certificates: CE0085AR0013 according EC Gas Appliance Directive EU/2016/426 and DIN EN 1854
Accessories supplied with pressure switch: 2 m silicon hose, 2 connection pieces with mounting screws, 2 self tapping screws for mounting on housing, 3 screw terminals for electrical connection.
Max. pressure: 10kPa
Pressure adjustment range: 200.1000Pa
Switching differential: 1mbar
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
POSITIONING UNIT
Model no :A1SD75M3-S1
Type : Systematic CPU Unit
Voltage: 100-120 VAC / 200-240 VAC
No. of control axes :- 3 axes
Control unit : mminchdegreepulse
Speed command: 1 to 1000000 pulse/s (Can be set in mm/min, inch/min, or degree/min.)
Control method : PTP control, path control (linear and circular), speed control, speed/position changeover control
Max. output command speed : 1 Mpps
Interpolation function : 2-axis linear interpolation, 2-axis circular interpolation
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
I/O Expansion Enclosure
Model No :621-9990
IPC 621 I/O rack
The 621 I/O full rack is identical in size to the 19-inch 620 processor racks.
It is designed for installation in 8-inch NEMA 12 enclosures or 19-inch instrumentation racks.
It holds a maximum of 12 I/O modules, either a Parallel or Serial I/O Module, and a Power Supply Module.
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
Valve Actuators
Model No :ML7421B1023-E
ML7421 Series
Item Category:HVAC Valves
Subcategory:Valve Actuators
Series:ML7421
Control Signal:Modulating 010 VDC
Fail-Safe Mode:Non-Spring Return
Supply Voltage:24 VAC
Run Time:175 Seconds
Nominal Stroke:1.5 in
Media Temperature:300 Degrees F
Manual Operation:Yes
Approvals:UL;CSA
24V 50/60Hz 12.5VA Class 2
0 or 2 to 10Vdc Selectable
405LBF 1 1/2" inch stroke
3.0 min NSR
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
12 Binary Input Module(Panel)
Model No :XF823A
class-2
Nominal voltage :- 24V, 5VA(19-30VAC 5C/60Hz, 21-30Vdc), T50
Used With: Excel 800 Controller
Application : Input Module
Network Communications : Panel Bus
Commissioning Software: CARE 8
Additional Information:
Packaging Details :As Per International Standard.
Delivery Time :Within One Week
