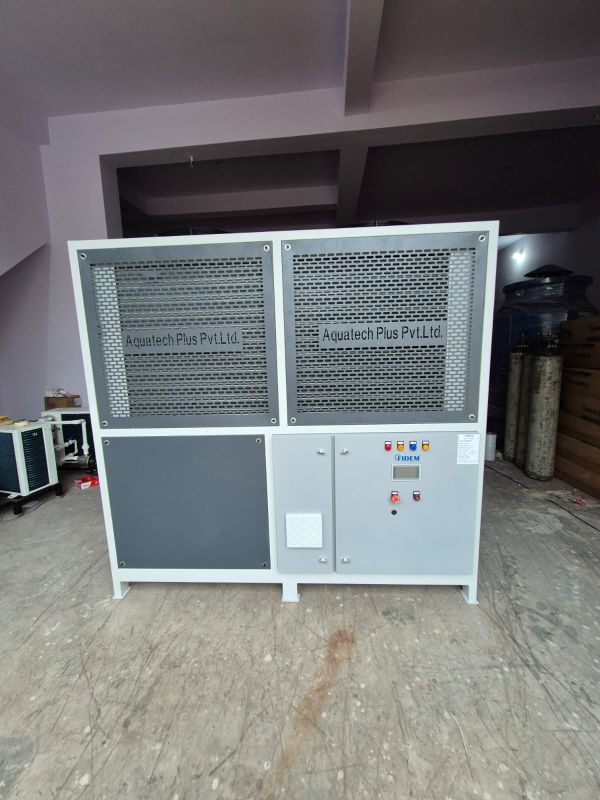

Electric Powder Coated Mild Steel 10 TR Glycol Chiller

Sr.No.

Parameter

Details

1

Model

FMACS-10TR-407

2

CoolingCapacity

10TR

3

Refrigerationcircuit

1Nos

4

PowerSupply

400V-50Hz

5

Connectingload

12KW/20A

6

Refrigerant

R407C

7

RefrigerantControl

ThermostaticExpansion

8

EvaporatingSST

7°C

9

CondensingSDT

48°C

10

AmbientTemp

60°C

11

WorkingTemperatureRange

7°CTO20°C

12

ChilledFlowOfWater

4500 LPH,ΔT 15°C

13

CondenserAir Flow

10000CFM

14

Fantypes

AxiallargeBlade

15

FanQty

2Nos

16

Fan Size

500MM Suction

17

FanPower

0.8*2

18

CompressorTypes

Scroll

19

CompressorQty

2Nos

20

Compressorpower

9KW/16A

21

Startmode

Regular

22

Capacitycontrol

0,100%

23

EvaporatorTypes

BPHE

24

Evaporatorpipeconnection

1.5”

25

EvaporatorShellMOC

MS.PowderCoted

26

EvaporatorMOC

CopperandSS-304

27

Condensertypes

AirCooled(Copper Tube) per ton 6 sq Ft

28

CondenserPipesize

3/8”

29

CondenserSupporter and Chiller body

Galvanize

30

Pump

SS-304/1.5HP

31

SafetyProtection

Inner Thermostat for compressor motor, unit overloadrelay,highandlowpressureswitch, reverse phase protection relay, discharge gas thermostat, flow switch , Antic Freeze

protection

32

Electriccontrolpanel

Controller,protectionrelay,contactor,MCB,

preventer,timer.
