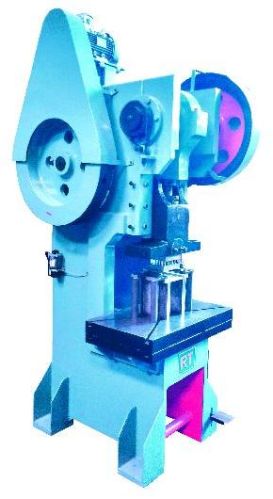

    Automatic Mechanical Press Brake Machine, Power : 110V, 220V

    • Automatic GradeAutomatic, Fully Automatic
    • Driven TypeMechanical
    • Power110V, 220V
    • Number Of FlowerMechanical Press Brakes Machine
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 12 Years
    • building Nature of Business Retailer
    • gst icon GST No. 24AAPFR9722F1ZX

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Number Of FlowerMechanical Press Brakes Machine
    • Availability100-1000kg, 1000-2000kg
    • Automatic GradeAutomatic, Fully Automatic
    • Power110V, 220V
    • Driven TypeMechanical
    • Total Carbohydrate1year

    Based in Rajkot, we are a prominent Manufacturer and Supplier of Mechanical Press Brake. The design of Mechanical Press Brake is based on innovative engineering. Further, Mechanical Press Brake is configured with advanced technology which efficiently boosts production capacity of unit.
    Highlights

    • Robust construction
    • Smooth working
    • Efficient design
    • Longer service life


    Details

    • Frame : Frame is of robust fabricated steel construction of rigid and interlocked design, It is strain- free and supports the ram and bed against undesired deflection under permissible loding condition.
    • Ram and Bed : Made from steel Plates of suitable thickness, machined for straightness and parallelism of the working surfaces. Ram is guided and supported throughout the stroke by accurately machined guided ways.
    • Drive System : Power is transmitted to the ram through two individual geardrives for uniform load distribution throughout the length. This also reduces the torsional stresses on the eccentric shaft. Electric motor used is of sufficient H.P. which reduces slowdown of flywheel and increases energy available per stroke. The gear and pinion are made out of carbon/alloy steel.
    • Ram Adjustment : Motorised ram adjustment through a simple drive mechanism, facilitates quick bending angle adjustment. Angular ram adjustment is made simple by incorporating a spring loaded dog clutch.
    • Clutch and Brake : All series of press brakes are provided with high-torque low-inertia friction clutch, synchronized with heavy duty mechanical brakes ensuring immediate braking of ram on releasing the pedal. Clutch operating levers are designed in such a way that minimum engaging force is required at the pedal.


    Features

    • Foot Pedal and Die Block Lifting Link.
    • Fly Wheel & Gear Guard.
    • Self Lubrication System.
    • Motor Pully.
    • Stroke counter.
    • Standard â��Vâ�� Block and Punch.
    • Motor Mounting Bracket.


    Options

    • Motorised Back Guage.
    • Automatic Lubrication System
    • ee-Belts.
    • Electric Motor & Starter / Control Panal Board.
    • Squaring Guage System.
    • Various type of Die & Punch.
    • Foundation Bolts.
    • All Dimensions are in mm.
    • Power Supply 400/440 volts, 3 Phase, 50 Cycle.
    • As day to day improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice.
    • All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation.
