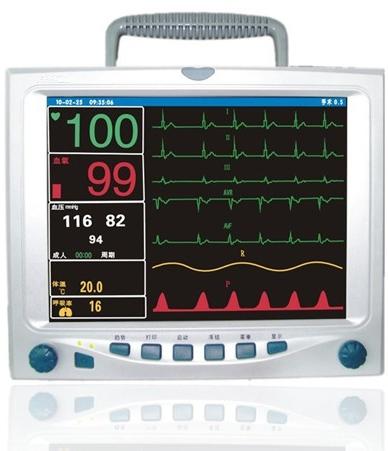

12.1inch Multi Parameter Patient Monitor

We are offering 12.1inch multi parameter patient monitor.
12.1inch multi-parameter patient monitor:
the multi-parameter monitor is a patient monitor with 12.1 inches display screens. It has a sophisticated design that provides simple, user-friendly operation. Its advanced functionality makes it perfect for a wide variety of uses, including post-anesthesia care, ambulatory surgery, emergency rooms and more.
1. Brief introduction of the function:
the 12.1 inches tft display screen could show up to 6 waveforms simultaneously.
The complete set is portable with built-in rechargeable battery with 6 hours operating time, thus quite suitable for monitoring patients in transfer.
It can connect with central unit to form central monitor system
operated by turning mouse, thus can be handled easily and conveniently.
Complete monitor parameters: ecg, respiration, spo2, nibp, heart rate, temperature, etc.
Trend chart for 150 hours with all parameters and support playback of ecg.
Sound and light alarm.
Built-in recorder and various record modes are available (the optional install).
---measures: ecg (5 lead), respiration, nibp, spo2, heart rate, temperature.
---compact: conveniently compact and feature-packed, the dj-12 is great for areas where space is at a premium.
---lightweight: weighing only 6.5 kg, size: (h x w x d) 320mm x 160mm x 270mm (12.6" x6.3"x10.6"). The dj-12 is portable type.
---battery: operation for portability, available with rechargeable batteries, the dj-12 can be used at least 6 hours during power interruption.
---wide viewing angle: the dj-12’s lcd screen features a wide viewing angle. Each parameter is color-coded in bright and vivid colors, making the information easy to read even from a distance.
---trend: the monitor can storage 150 hours trend data of the whole monitored parameters.
---recorder: recorder could be optional install.
2. Technical specifications
---ecg:
connection mode: five- cable electrocardiograph input( r, l, f, n ,c )
