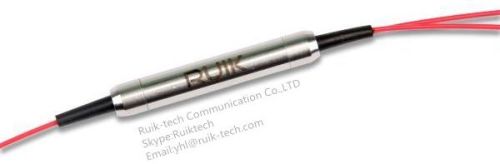

1550nm Polarization Beam Splitter/ Combiner

We are offering 1550nm polarization beam splitter/ combiner. Polarization beam splittercombiner(pbsc) has been always along with very excellent features:low insertion loss, high return loss, high extinction ratio, high reliability, high stability.
Polarization beam splittercombiner(pbsc) has been widely used in edfa, raman amplifier, fiber sensor, coherent, telecommunications systems. Polarization mode dispersion compensator.
Category:
1310nm polarization beam splittercombiner(pbsc)(3port all in panda fiber),
1550nm polarization beam splittercombiner(pbsc) (3port all in panda fiber),
1064nm polarization beam splittercombiner(pbsc) (3port all in panda fiber),
1310nm polarization beam splittercombiner(pbsc) (port3 in hi1060 fiber),
1550nm polarization beam splittercombiner(pbsc) (port3 in hi1060 fiber),
1064nm polarization beam splittercombiner(pbsc) (port3 in hi1060 fiber),
1310nm polarization beam splittercombiner(pbsc) (port3 in smf-28e fiber),
1550nm polarization beam splittercombiner(pbsc) (port3 in smf-28e fiber),
1064nm polarization beam splittercombiner(pbsc) (port3 in smf-28e fiber),
package dimensions:
packing info.:
6pieces per box for free,
box size:22*22*10mm
1550nm 1x2 polarization beam splittercombiner(pbsc)
specifications:
center wavelength(nm):1550
opterating wavelength range(nm):+-40
typ. Insertion loss(db):0.40
max, insertion loss(db):0.60
min. Return loss(db):50
typ. Extinction ratio(db):35
min. Extinction ratio(db):22
max. Handing power(mw):500
max, tensile load(n): 5
fiber type: fujikura panda fiber1550
operating temperature:-5~70
storage temperature:-40~80
