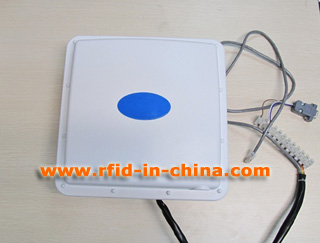

2.4GHz Active RFID Readers -DL9130

This 2.45GHz RFID active reader DL9130 is designed for inventory management. With its long read and write range, this active RFID reader is perfectly used in enterprise supply chain management to improve the efficiency of inventory tracking and management.
Working frequency: ISM 2.4GHz ~ 2.5GHz
Identify direction: Directional Identification
Antenna: 15dBi Built-in antenna
RF Power Range: -20 dBm ~ 0 dBm (set by software)
Receiving Sensitivity: -90 dBm
Modulation: GFSK
Read Mode:
1) Automatic identifying within effective area (Auto mode)
2) Reading after external trigger (Trigger mode)
3) Reading under software command (Master-slave mode)
Anti-collision: Read up to 500 pieces of tags simultaneously
Read distance: 0 ~ 200 m adjustable
Buffer Capacity: 1000 tags data
Write distance: 0 ~ 100 m adjustable (Reader with RSSI function)
Working Status Indication: Buzzer
Communication Speed: 1000kbps
1 triggering input, 2 Relay output, CAN, RSSI
Data Port interface: RS232 Port, RS485 Port, Ethernet, Weigand26/34/42/50
Power supply: DC+5V, 1A
Product size: 225 mm*225 mm*100 mm
Packing size: 450 mm*300 mm*140 mm
Gross weight: 2800 g
Net weight: 1850 g
Accessories: 5V/1A adapter, power cable, RS-232 cable, Ethernet cable, Mounting bracket
Working temperature: -20 degree ~ 70 degree
Storage temperature: -40 degree ~ 85 degree
