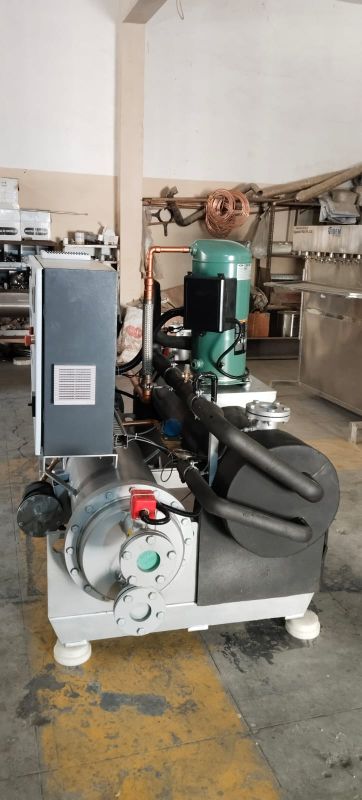

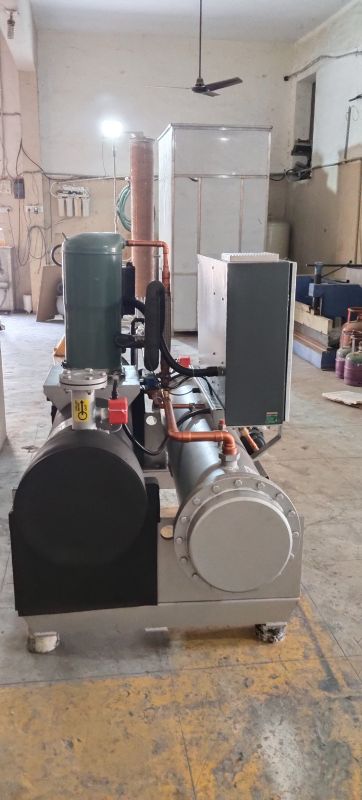

Mild Steel 20 TR Water Cooled Scroll Chiller, Refrigerant Type : 407

Sr.No.

Parameter

Details

1

Model

FMACS-20TR-407

2

Cooling Capacity

20 TR

3

Refrigeration circuit

1

4

Power Supply

400V-50Hz

5

Connecting load

13.32 KW / 24.9 A

6

Refrigerant

R407

7

Refrigerant Control

Thermostatic Expansion

8

Evaporating SST

5°C

9

Condensing SDT

35°C

10

Ambient Temp

45°C

11

Chilled water Range

+7 TO +10

12

Chilled Flow Of Water

12000 LPH, ΔT 5°C

18

Compressor Types

Scroll

19

Compressor Qty

1

20

Compressor power

12 KW /23 A

21

Start mode

Regular

22

Capacity control

0,50,100 %

23

Evaporator Types

Shell and tube

24

Evaporator pipe connection

3”

25

Evaporator Shell MOC

Carbone steel Powder Coted

26

Evaporator tube MOC

Copper grooved

27

Condenser types

Shell and tube

29

Condenser Tube and shell Moc

Copper tube and Carbone steel

30

Pump

SS-304/1.5 HP

31

Safety Protection

Inner Thermostat for compressor motor, unit overload relay, high and low pressure switch, reverse phase protection relay, discharge gas thermostat, flow switch, Anti-Freeze protection

32

Electric control panel

Controller, protection relay, contactor, MCB, preventer, timer.

33

Dimension(length/width/height)

After confirmation, we will provide dimensions and drawings -

34

Running weight

-

Product

Make

1.

compressor

Danfoss(SZ-240-4)

2.

Evaporator

Fidem

3.

condenser

Fidem

4.

Electric panel

Fidem

5.

Flow switch

Castle

6.

Pressure Switch

Danfoss

7.

Expansion valve

Danfoss

8.

Filter

Dryall

9.

Solenoid valve

Danfoss

10.

Electronic components

Schneider
