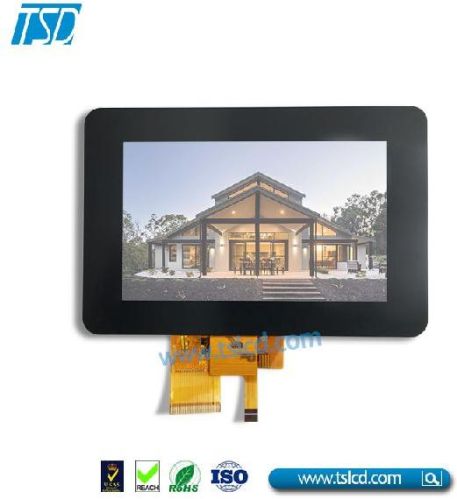

5 Inch 800x480 TFT LCD Display, Brand Name : TSD

₹ 1,629 / Piece

MOQ1 Piece(s)
Brand NameTSD
Packaging TypeRGB
Screen Size120.7x75.8x4.1 mm
Number Of FlowerTFT lcd display
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2004

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerTFT lcd display
Brand NameTSD
Packaging TypeRGB
Screen Size120.7x75.8x4.1 mm
Brightness550nits
Resolution800x480
Country of OriginChina
Model NumberTST50WV05AR

Part no. tst50wv05ar
outline dimension(mm): 120.7x75.8x4.1
display area(mm): 108x64.8
driver ic source: ili6122 + gate: ili5960
resolution(dots): wvga, 800*rgb*480
description: 5" tft lcd high brightness 550nits
brightness: 550nits without touch panel
operating temperature(â°c): -20-70
storage temperature(â°c): -30-80
pixel pitch: 0.135(w)x0.135(l)
pixel arrangement: rgb vertical stripe
display mode: normal white,262k colors, transmissive, tft
view direction : 6h.
