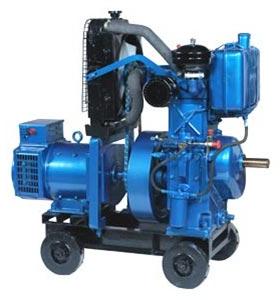

5 To 10 KVA Three Phase Generator

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Diesel Water Cooled 5 to 10 KVA Three Phase Generator is manufactured for standby as well as emergency power supply in households and industries. These Three Phase Generators work best in the industrial arena as they have excellent electric starting system. The Three Phase Generator also has up-to-date fuel injection system and automatic voltage stabilizer.

View More Details

Send Enquiry

Details

ENGINE
Cooling	Water
No. of cyl.	One
Fuel	H.S. Diesel
Speed	1500 RPM
SFC 1	gms/HP-Hr
A. C. GENERATOR
Voltage	230 / 415 V
Phase	Single / Three
Frequency	50 Hz
Regulation	± 5 % Max.
Insulation	F Class
Mounting	Foot

Technical Specifications

AC Generators ( Alternator )					Diesel Engine
Model	Rated Power		No. of Phase	Volts	Current	Power	Rated	Dry Weight
Model	KVA	KW	No. of Phase	Volts	(Amps)	Factor	Power (HP)	(Kg)
AET 500	5.0	4.0	THREE	415	7.0	0.8 (LAG)	6.5	275
AET 625	6.25	5.0	THREE	415	8.5	0.8 (LAG)	8	285
AET 750	7.5	6.0	THREE	415	10.5	0.8 (LAG)	12.0	305
AET 875	8.75	7.0	THREE	415	12.5	0.8 (LAG)	12.0	320
AET 1000	10	8.0	THREE	415	13.9	0.8 (LAG)	14.0	338
