Alia Hart Communicator

We offer Alia Hart Communicator.

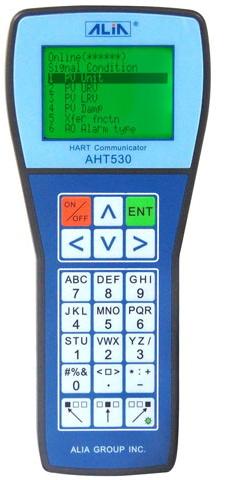

AHT530 is a battery-powered, hand-held unit designed to configure, calibrate and troubleshoot to smart transmitter either remotely or at the unit.
AHT530 allows you to establish communication with a Hart field instrument over the existing 4-20 mA DC lines, covering the five process variables of flow, pressure, temperature and level, control valve etc.
FEATURES
Common to most of smart Field Instruments
Can use AA alkaline Batteries or Rechargeable battery
Battery operable Time more then 100 Hours
Low battery voltage alarm
Self-check function Automatic power-off
Large display(21 characters by 8 lines)
Microprocessor-based field communicator
Can use USB port to be the charger
SPECIFICATION
Display:LCD dot matrix, 21 characters * 8 lines
Keyboard:20 general keys, one power switch
Cable length:1.5 M
Functions:Display, setup and alteration of parameterZero point adjustment, calibrationAuto power-off
Enclosure:IP54
Operating Temperature: -20 deg.c ~ 55 deg.c
Power:Battery
Three AA alkaline Batteries
Three Ni-MH Batteries (rechargeable)
Operable Time:Alkaline Battery: Up to 150 HoursNi-MH battery: Up to 100 Hours
Charge up time:Less then 12 Hours
Dimensions:mm(L) x 102mm(W) x 61mm (H)
Battery Charger:USB connect with computer90-260 VAC, 5060 Hz
Weight:0.4Kg(Communicator) 1 Kg (Including accessories)
