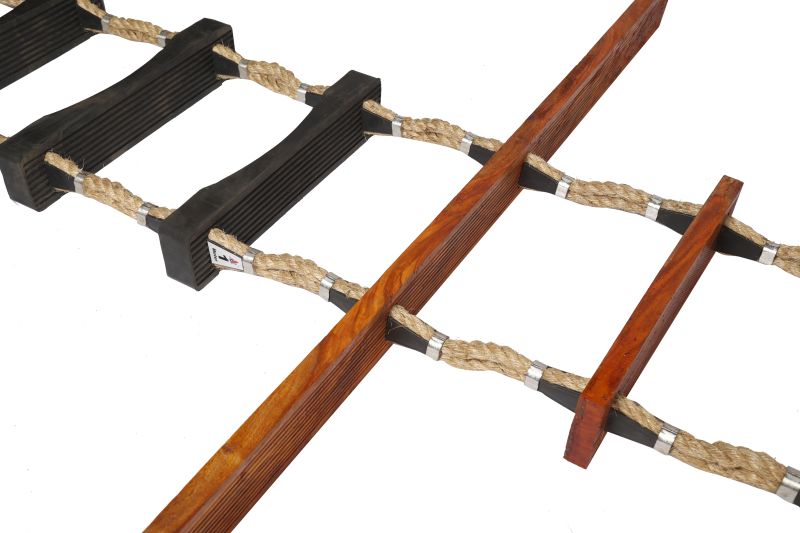

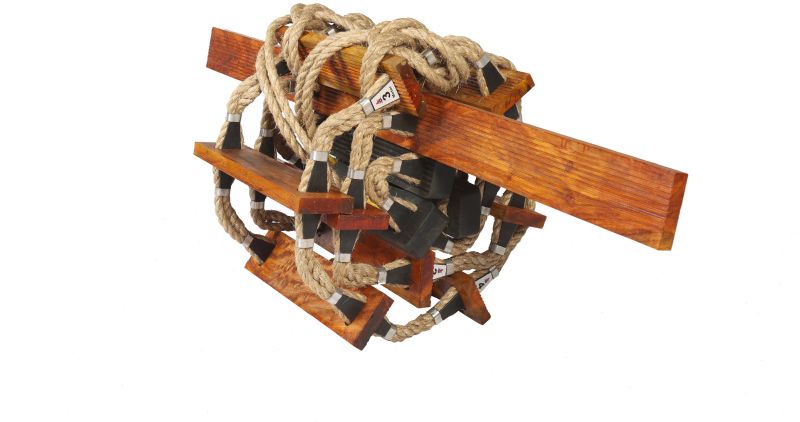

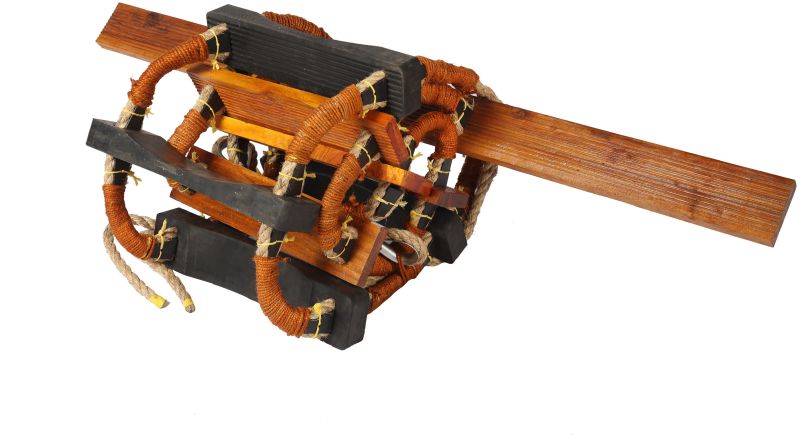

Aarav Polished Aluminium Clamped Pilot Ladder, Color : Brown

Name: aluminium clamped pilot ladder
Brand: Aarav
Price: 2450 INR
Availability: InStock

₹ 2,450 / Meter

Company Information

Mazgaon, Mumbai, Maharashtra

Ask for more detail from the seller

Report incorrect details

Brand NameAarav
FinishingPolished
ConditionNew
ApplicationMARINE SAFETY
FeatureDurable, Eco Friendly, Fine Finishing, Foldable, Heavy Weght Capacity, Non Breakable
Number Of StepDepends On Length
Pilot Ladder – Aluminium Clamped232003
Side RopesManila or polyester (minimum 20 mm dia.), hand-spliced, UV-resistant
Length OptionsFully customizable (number of steps as required)
Pilot Ladder – Aluminium Clamped (Extended Variant)232008
Clamping SystemAluminium mechanical clamping at step joints for enhanced grip & strength
Step Spacing310 mm (±5 mm) center-to-center, per IMO standard
Step Width115 mm minimum (non-slip surface)
End FittingsChock-fastened rope eyes or thimble ends for secure deck fixing
Usage RatingSuitable for personnel up to 150 kg per rung load

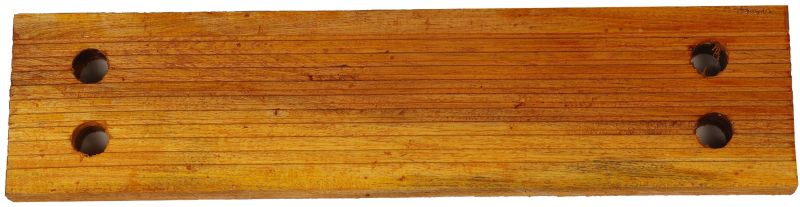

Step MateriaHardwood, synthetic resin, or anti-slip composite (model-dependent)
CertificationIDLR Form 5 approved, meets SOLAS / ISO 799 / IMO A.1045(27) requirements

Aarav Enterprise, Leading Manufacturer Pilot Ladder & Embarkation Ladder in Mumbai

✅ Key Features & Benefits

🔩 Aluminium Clamped Structure – Provides enhanced strength, step alignment, and longevity.
📏 Fully Customizable Build – Designed to match vessel freeboard height and user specifications.
✅ Certified & Compliant – Built in accordance with international maritime boarding safety standards.
🛡️ Anti-Slip, Safe Access – Features non-skid steps and firm rope tensioning for safe footing.
⚓ Corrosion-Resistant Components – Ideal for harsh saltwater environments and long-term use.
🔧 Easy Handling & Storage – Lightweight and designed for efficient deployment, retraction, and stowage.

🚢 Ideal Applications

⚓ Ship-to-Ship Boarding – For safe transfer of pilots or personnel between vessels at sea.
🛥️ Offshore Platforms & FPSOs – Provides access for inspectors, technicians, or emergency teams.
🏗️ Port & Dockside Operations – Reliable solution for fixed and floating terminal crew access.
🚨 Rescue & Emergency Use – Suitable for lifeboat stations, emergency escape, and retrieval missions.
