ASTM Area Amplitude Block Set Of 8

₹ 2,000 / piece

Supply TypeManufacturer, Supplier
Preferred Buyer Location India only

ASTM AREA AMPLITUDE BLOCK SET OF 8.Dimensions: FBH diameters are 1/64", 2/64", 3/64", 4/64", 5/64", 6/64", 7/64", and 8/64". Block diameter is 2.0".Description: ASTM E428 Area Amplitude....

Company Information

Member Since 1 Year
Nature of Business Manufacturer
GST No. 33AAWCA1084F1ZN

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

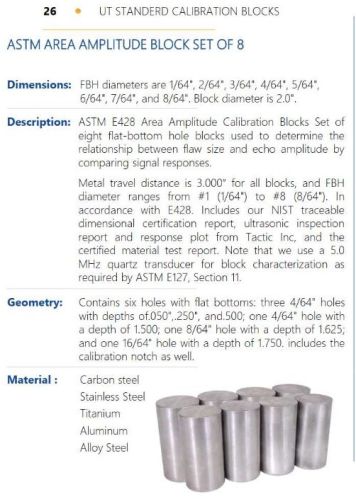

ASTM AREA AMPLITUDE BLOCK SET OF 8.
Dimensions: FBH diameters are 1/64", 2/64", 3/64", 4/64", 5/64", 6/64", 7/64", and 8/64". Block diameter is 2.0".
Description: ASTM E428 Area Amplitude Calibration Blocks Set of eight flat-bottom hole blocks used to determine the relationship between flaw size and echo amplitude by comparing signal responses. Metal travel distance is 3.000” for all blocks, and FBH diameter ranges from #1 (1/64") to #8 (8/64"). In accordance with E428. Includes our NIST traceable dimensional certification report, ultrasonic inspection report and response plot from Tactic Inc, and the certified material test report. Note that we use a 5.0 MHz quartz transducer for block characterization asrequired by ASTM E127, Section 11.
Geometry: Contains six holes with flat bottoms: three 4/64" holes with depths of.050",.250", and.500; one 4/64" hole with a depth of 1.500; one 8/64" hole with a depth of 1.625; and one 16/64" hole with a depth of 1.750. includes the calibration notch as well.
Material : Carbon steel,Stainless Steel,Titanium,Aluminum,Alloy Steel.
