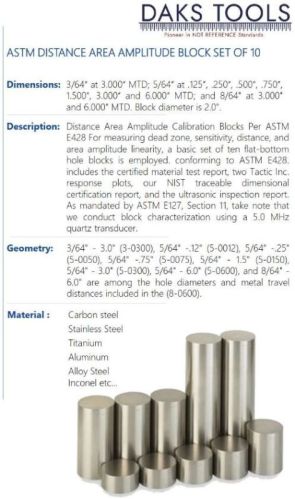

ASTM Distance Area Amplitude Block Set Of 10

ASTM DISTANCE AREA AMPLITUDE BLOCK SET OF 10.
Dimensions: 3/64” at 3.000” MTD; 5/64” at .125”, .250”, .500”, .750”,1.500”, 3.000” and 6.000” MTD; and 8/64" at 3.000" and 6.000" MTD. Block diameter is 2.0".
Description: Distance Area Amplitude Calibration Blocks Per ASTM E428 For measuring dead zone, sensitivity, distance, and area amplitude linearity, a basic set of ten flat-bottom hole blocks is employed. conforming to ASTM E428. includes the certified material test report, two Tactic Inc.response plots, our NIST traceable dimensional certification report, and the ultrasonic inspection report.As mandated by ASTM E127, Section 11, take note that we conduct block characterization using a 5.0 MHz quartz transducer.
Geometry: 3/64" - 3.0" (3-0300), 5/64" -.12" (5-0012), 5/64" -.25" (5-0050), 5/64" -.75" (5-0075), 5/64" - 1.5" (5-0150), 5/64" - 3.0" (5-0300), 5/64" - 6.0" (5-0600), and 8/64" - 6.0" are among the hole diameters and metal travel distances included in the (8-0600).
Material : Carbon steel,Stainless Steel,Titanium,Aluminum,Alloy Steel,Inconel etc.
